Vertical packaging machine designed for intermittent welding of a wide variety of products

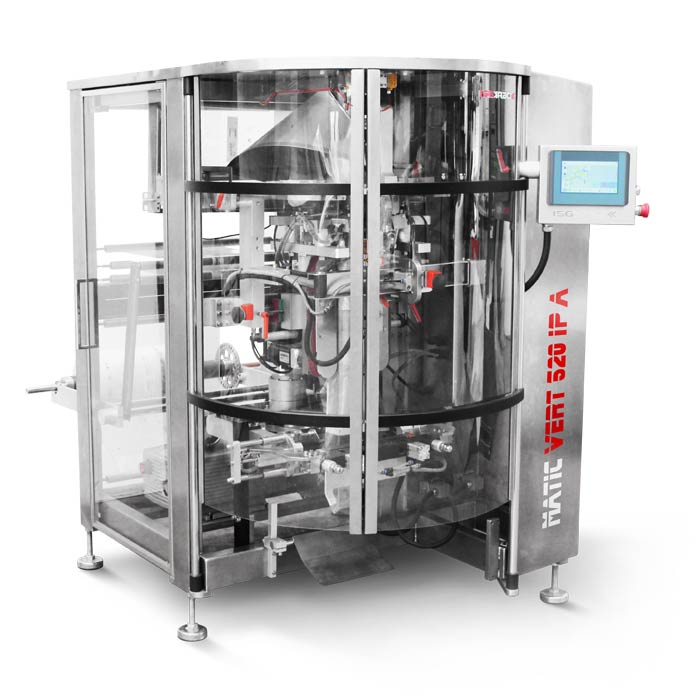

The Matic Vert IP-A vertical machine has been specifically designed for intermittent wrapping of many different product types. The machine is extremely flexible in terms of changing the forming size to allow for different portions, and has the versatility of adapting to any film type. Combine these features with the level of electronic specification and you have one of the most technologically advanced machines available on the market.From the beginning of the design concept, the Matic Vert IP-A model has been focused entirely on key industry requirementssuch as ergonomics, easy cleaning, low maintenance, the use of high quality materials with most advanced hygiene treatments.

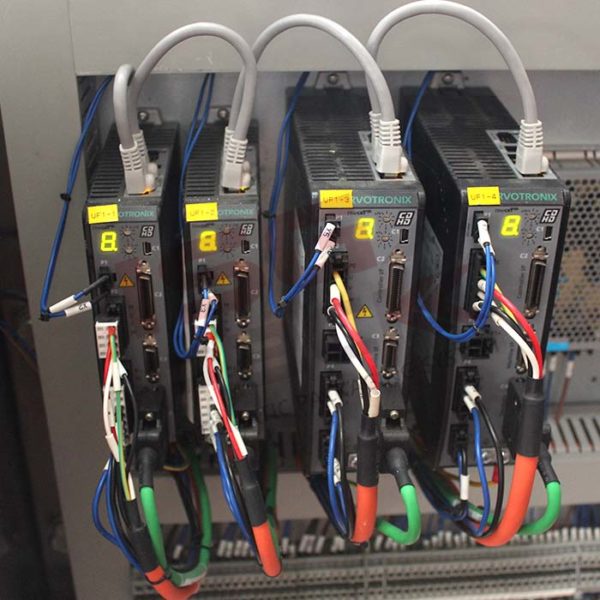

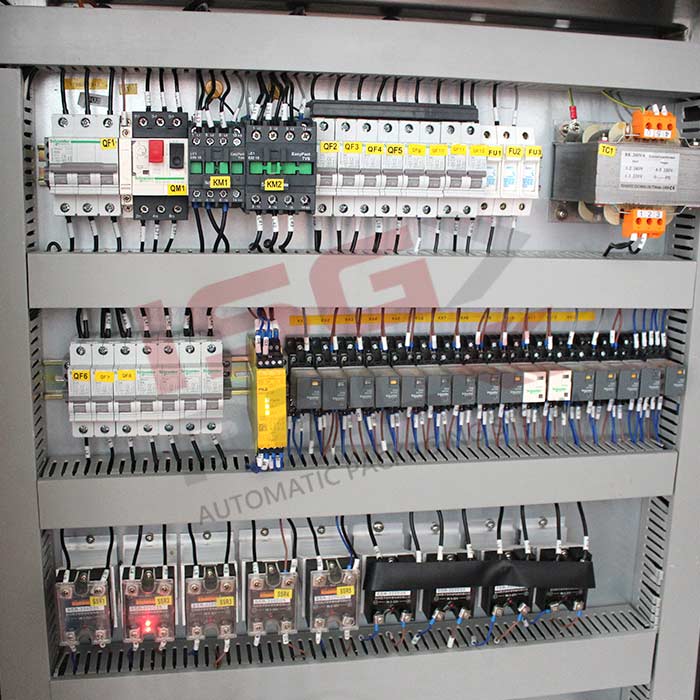

The machine is controlled by an Industrial PLC, and is provided with 3 servomotors, actuated by shaft control synchronisation. The interface has been specially developed to assure easy and friendly machine programming.

Optionals and features

Optionals

Double film reel carrier
bag former
Automatic joint system
Automatic corretion system
Dust extraction
Gas flushing
Sealing bar for PE
Exhaust device
Euroslot hole
Antistatic unit
Coders
Labers
Product discharge belts
Gusset device

Features

Stainless steel structure

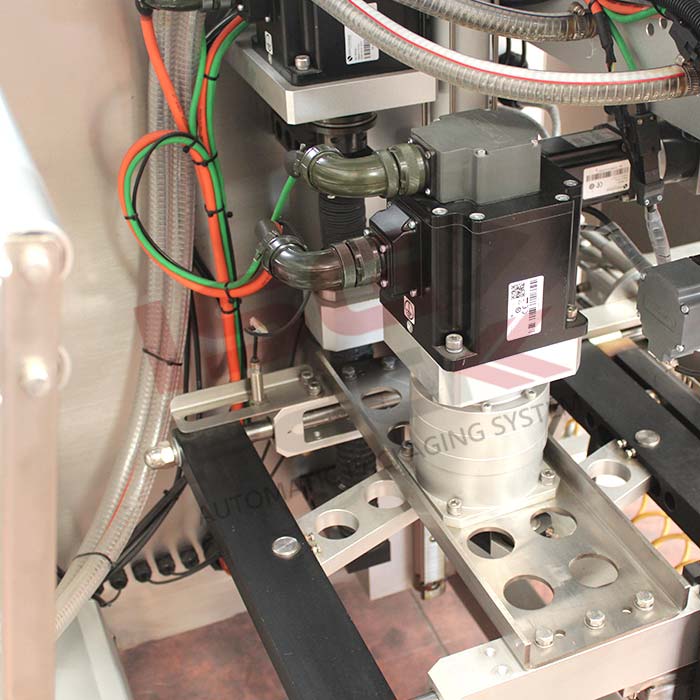

Servo driven cross seal jaw (1 servomotor)
Servo driven film transport (2 servomotors)
Front and side frame opened construction
Film reel holders with Pneumatic chocks

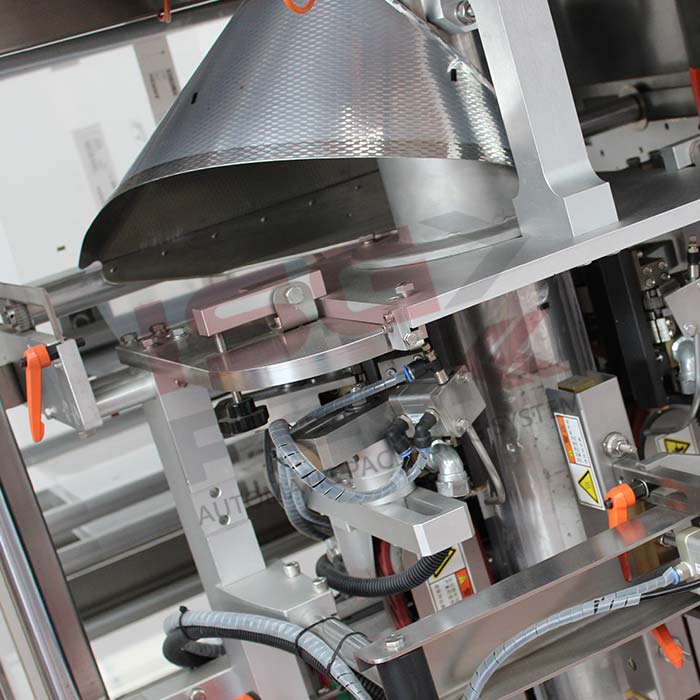

One piece and easy change film former

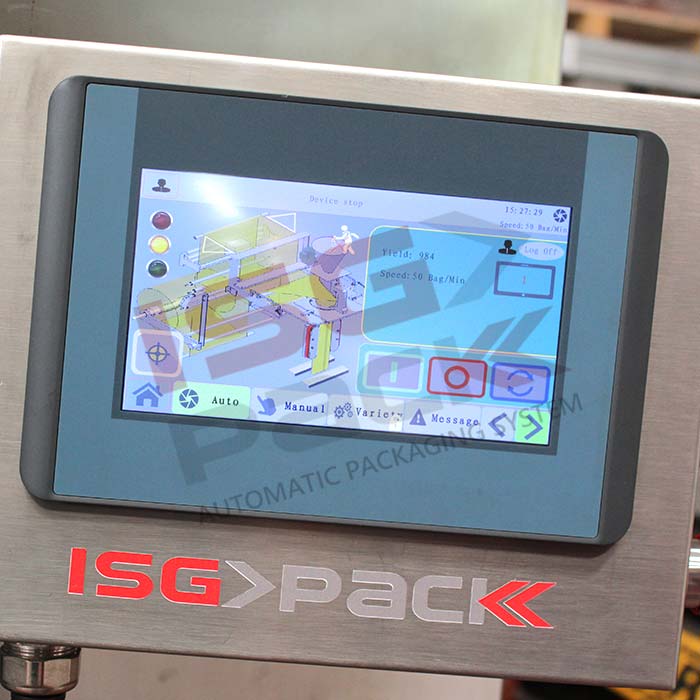

Industrial PLC, colour touch screen (Berghoff 10”)
Capacity to program data for 100 items
Touch screen adjustment of sealing time, temperature and pressure for the horizontal seal jaws
Motorised centering of film roll holders
Key controlled Access to different operator level
Motorised film tracking with film tension control with
load cells
Film Roll Holders with Pneumatic chocks
Automatic detection for the end of film roll

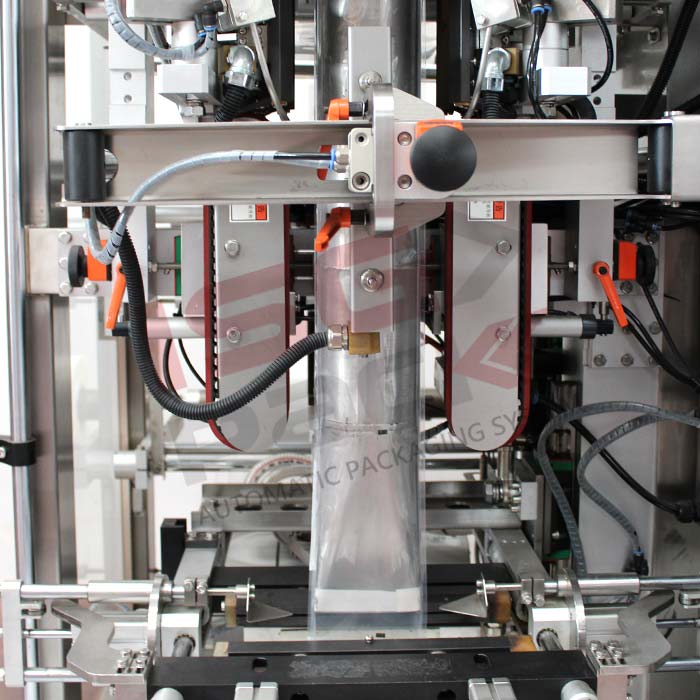

Film transport with belts and vacuum system with Becker pump
Zig-zag sealing mode
Precision Bag Length Control at High or Low Speed
Precision bag length control at high or low speed
Horizontal seal obstruction detection
Strings or double bag
Automatic detection of irregularities in the sealing
Temperature or in the pneumatic pressure of the system
Easy interface with peripheral equipment
Designed and manufactured in accordance with the (98/37/CEE) safety regulations.

Caratteristiche bobina film

Max thikness film: 40/80 my.

Packaging material: OPP/AL/PE PET/VMPET escluso PE

Max size of roll: 520 – ø ≤600mm

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Power supply	380 Volts 3 ph – 50 Hz
Installed power	5 kW
Max production	From 10 to 100 ppm
Film roll thickness	da 40 a 80 my
Packaging material	OPP/AL/PE – PET/VMPET excluding PE
Max dimension film roll	520 – ø ≤600mm

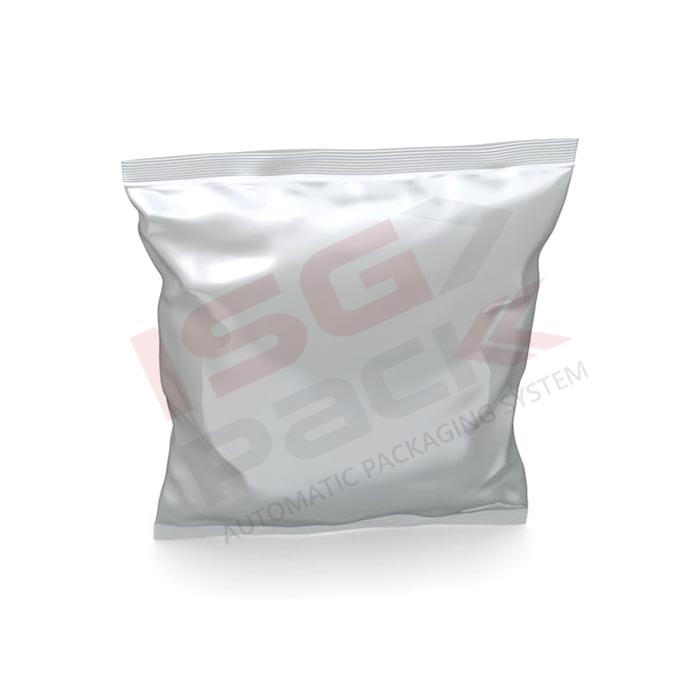

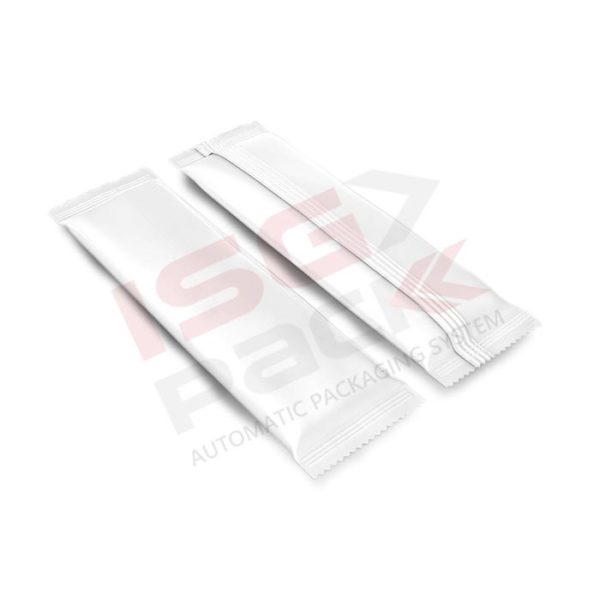

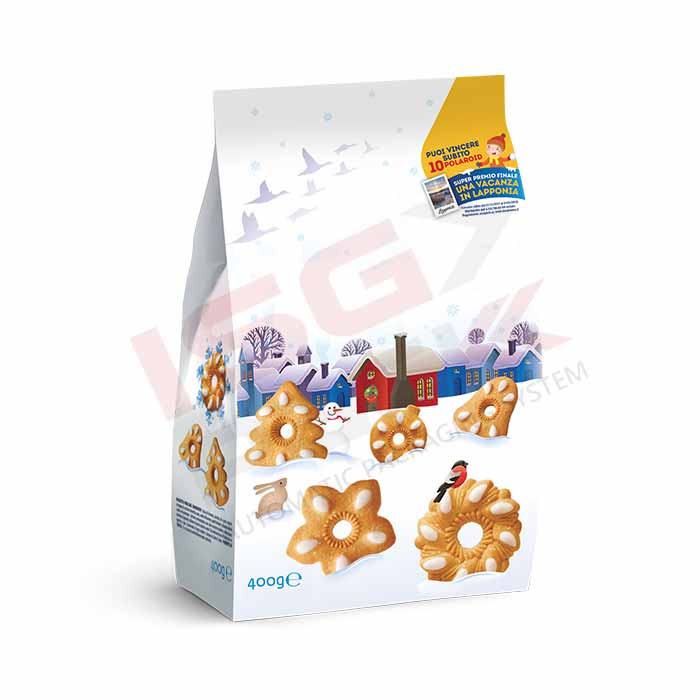

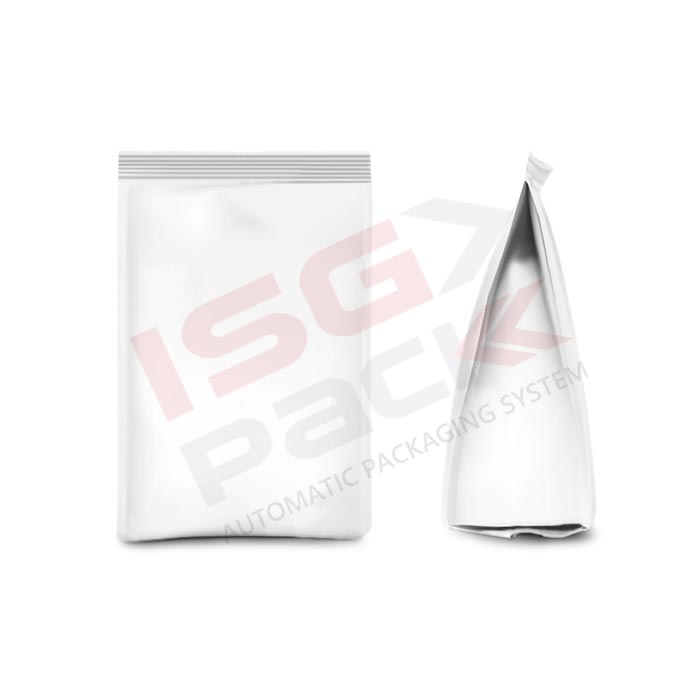

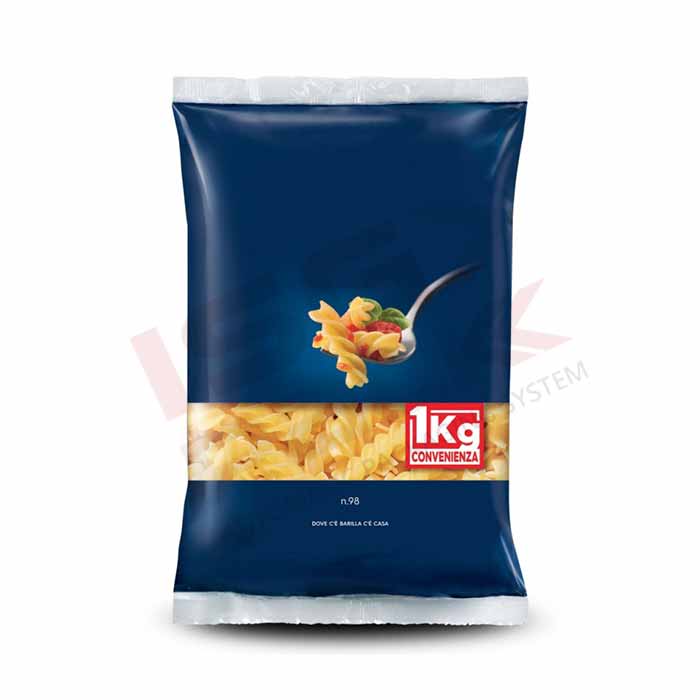

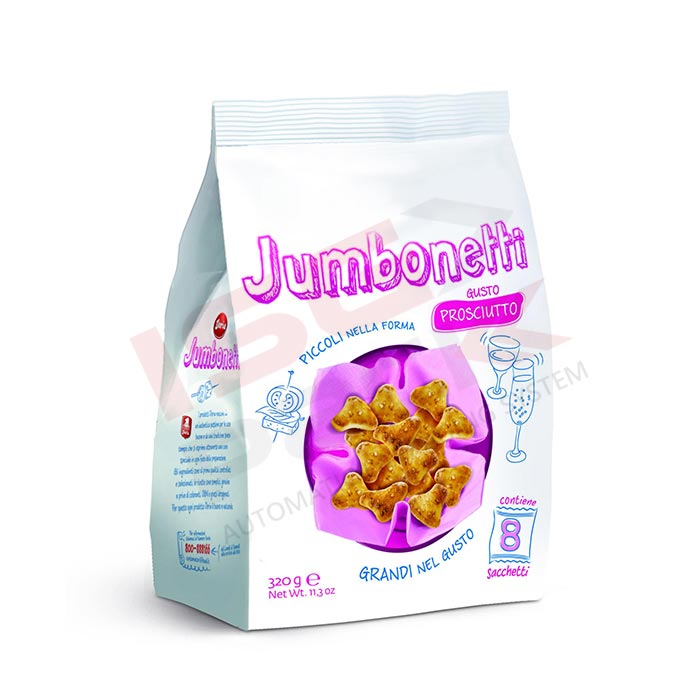

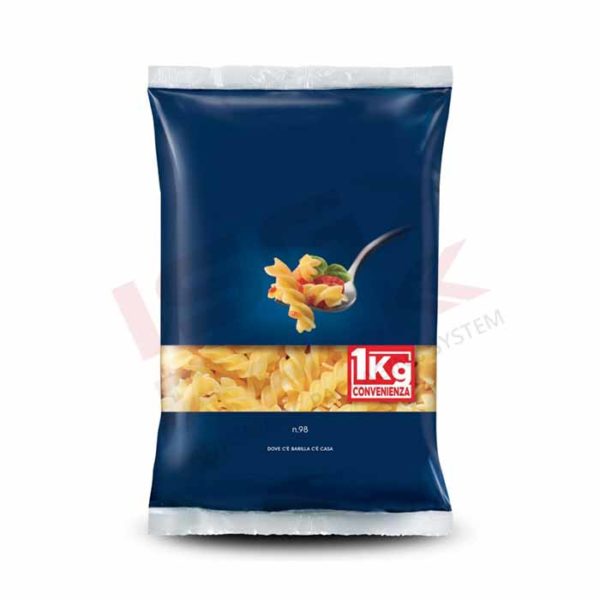

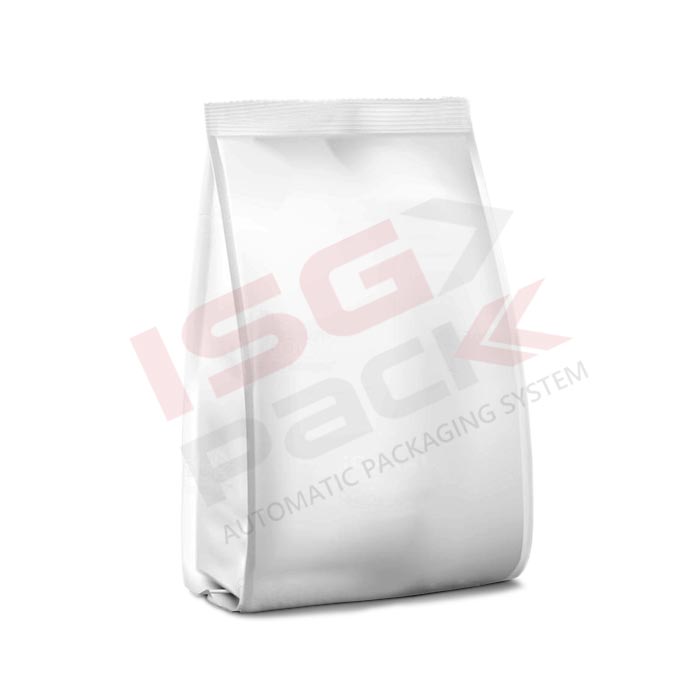

Packaging type	Gusset bag, Pillow bag
Machine size	L 1800 x W 1270 x H 1615 mm
Net weight	680 Kg

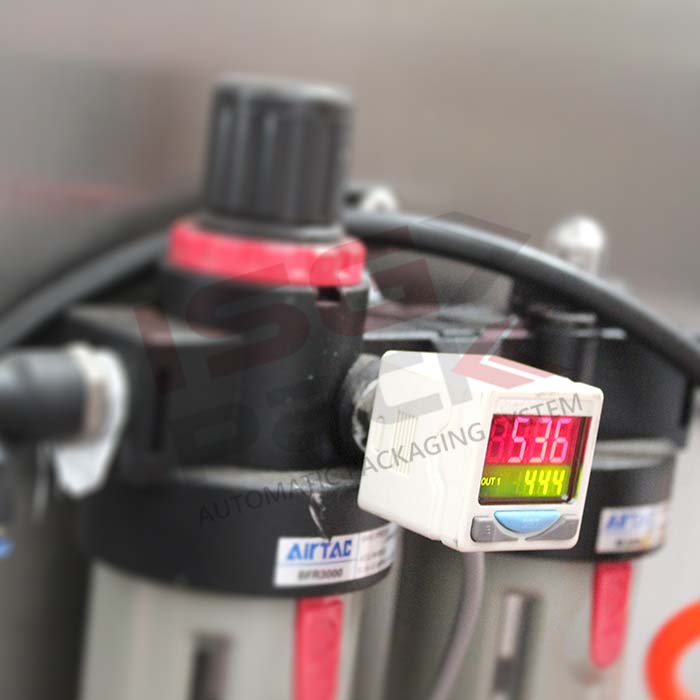

Air pressure	0,5 MPa
Air consumption	0,32 Nlitri/min
