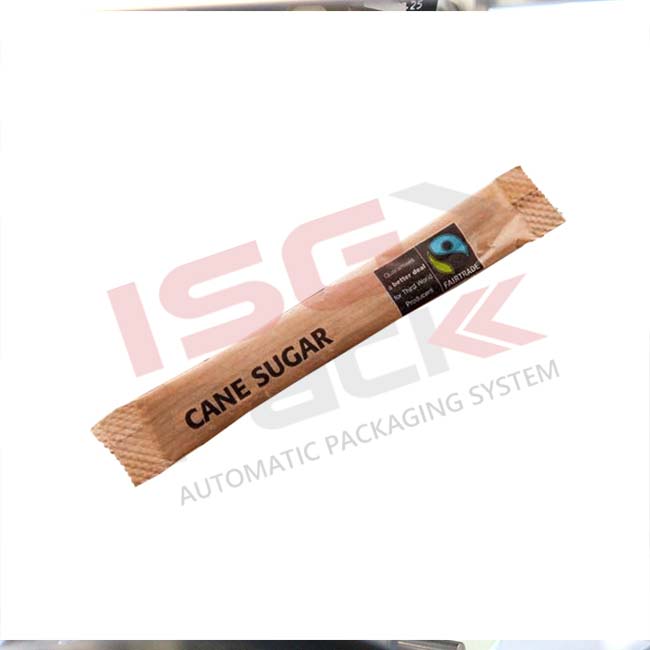

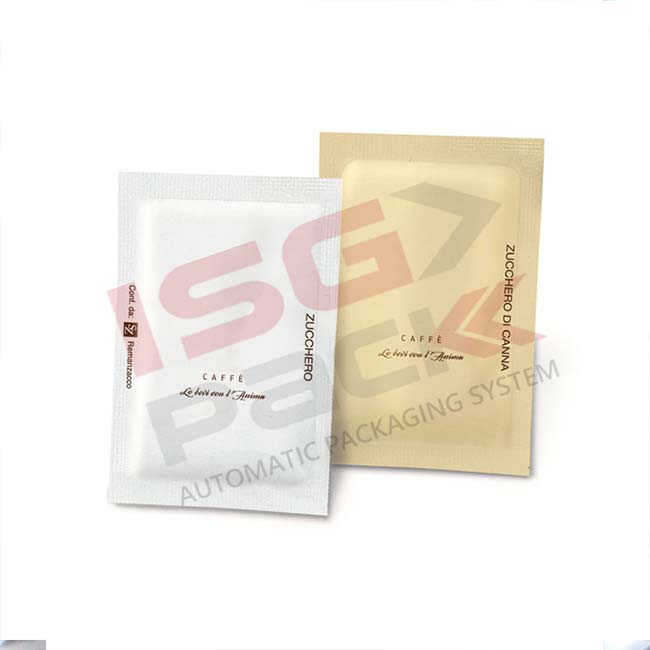

Vertical packaging machine for Mini Vert 240 PP granules designed for the packaging of products such as sugar, coffee, salt, rice etc.

Automatic vertical packaging machine with reduced dimensions and easy to use. Widely used to package all kinds of cereals or granules, such as coffee, sugar, salt, rice, seeds, seasoning, pepper, desiccant, etc.

General characteristics of the packaging machine

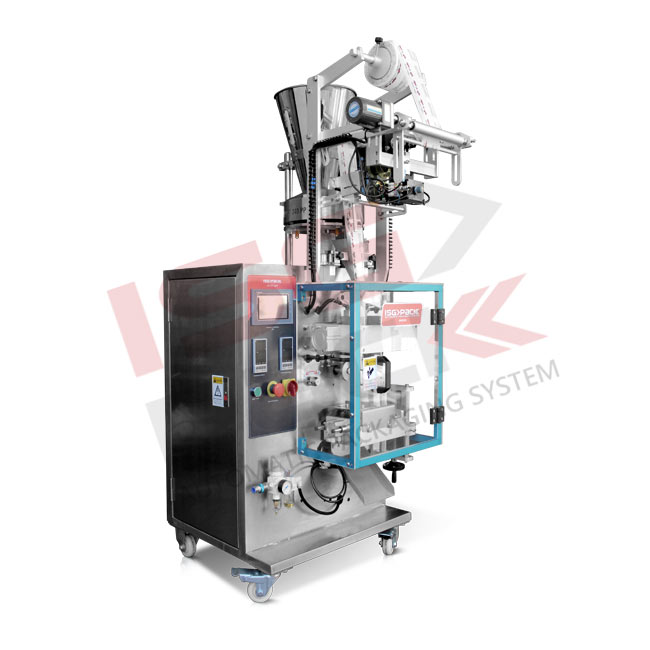

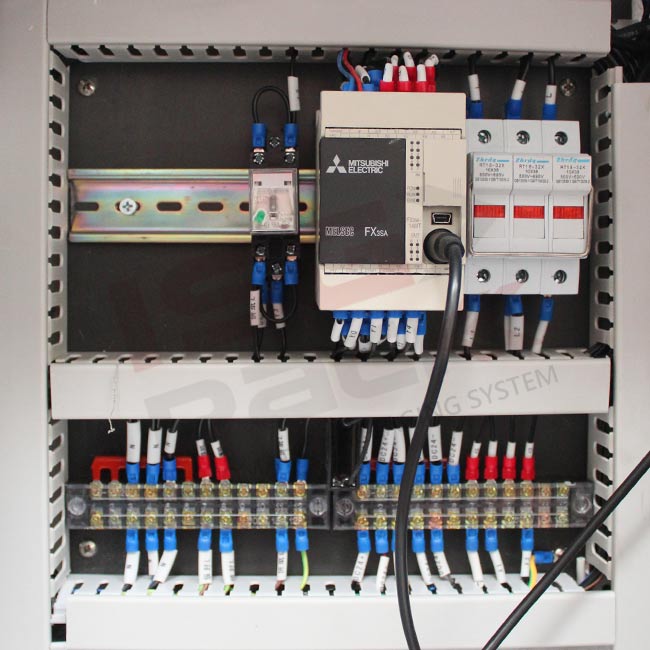

The Mini Vert 240 PP vertical machine is controlled by a Mitsubishi PLC managed by a color touch screen control panel. The structure is made entirely of SUS 304 stainless steel. The filling of the packs can be adjusted from 1ml to 50ml with lengths from 25 to 60mm.

PDF TECHNICAL SHEETPDF TECHNICAL SHEET

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Power supply	220 Volt 1Ph
Installed power	1,5 Kw
Machine structure	Fully stainless steel SUS 304

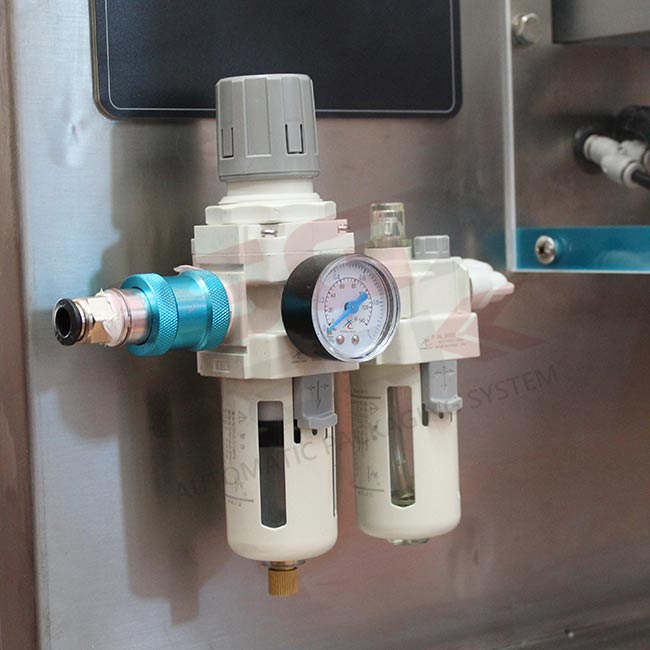

Air consumption	0.6 Mpa, 0.3 cbm/min
Machine size	L 1150 x W 900 x H 1700 mm
Net weight	200 Kg
Control system	PLC + Color touch screen

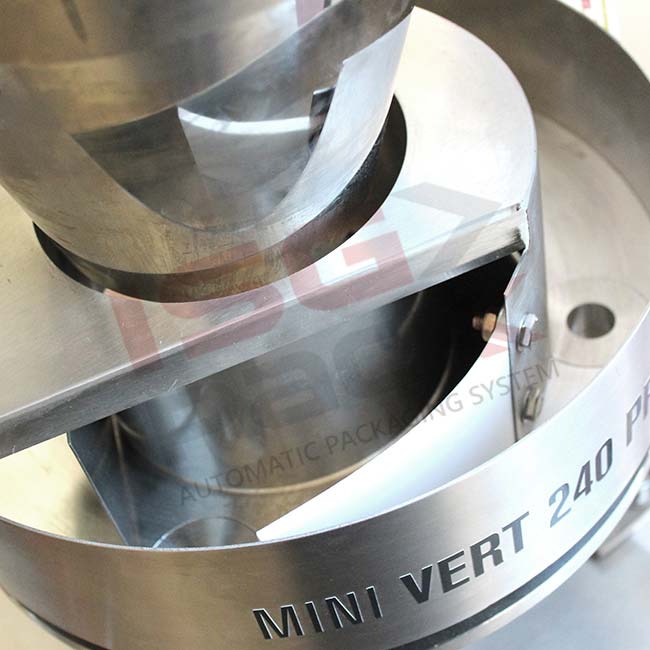

Weighing system	Coclea
Filling volume	da 1-50ml / 1-30 ml
Production capacity	25-60 packages
Stick size	L 40-170 mm, W 15-120 mm

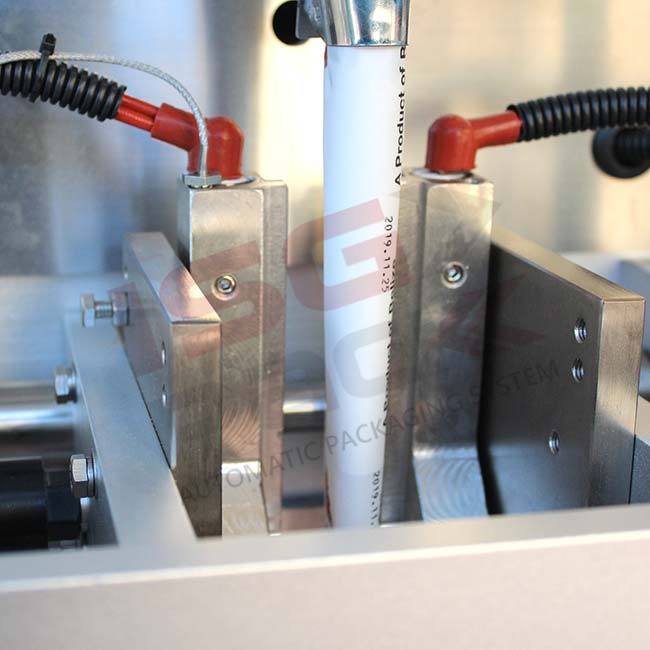

Welding and cutting	Smooth or zigzag

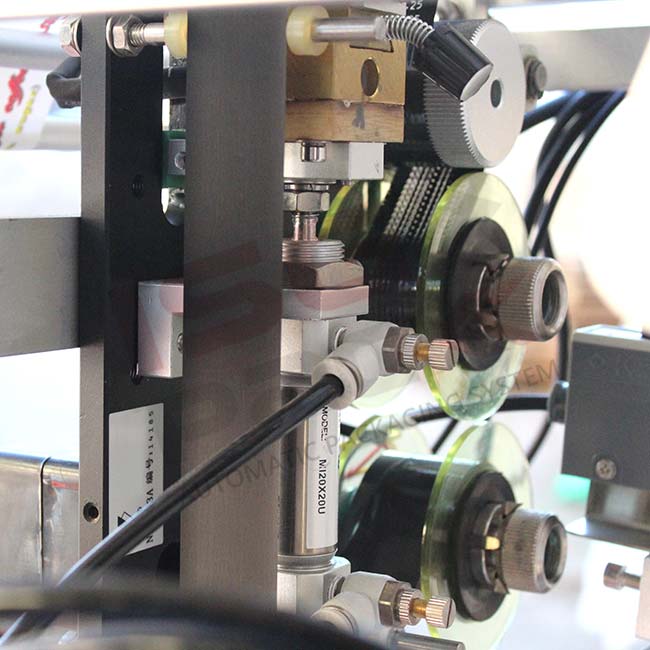

Functions	Automatic weighing, Code cutting and printing (optional), Filling up, Package forming, Welding
Packaging material	Cellophane / polyethylene, Coupled Aluminum / polyethylene, Coupled with BOPP / polyethylene, Poly-coated paper
Film width	50-240 mm, 50-260 mm
