Wrapping machine Easy Wrap 2000 A SS

In stock

REQUEST QUOTE NOW

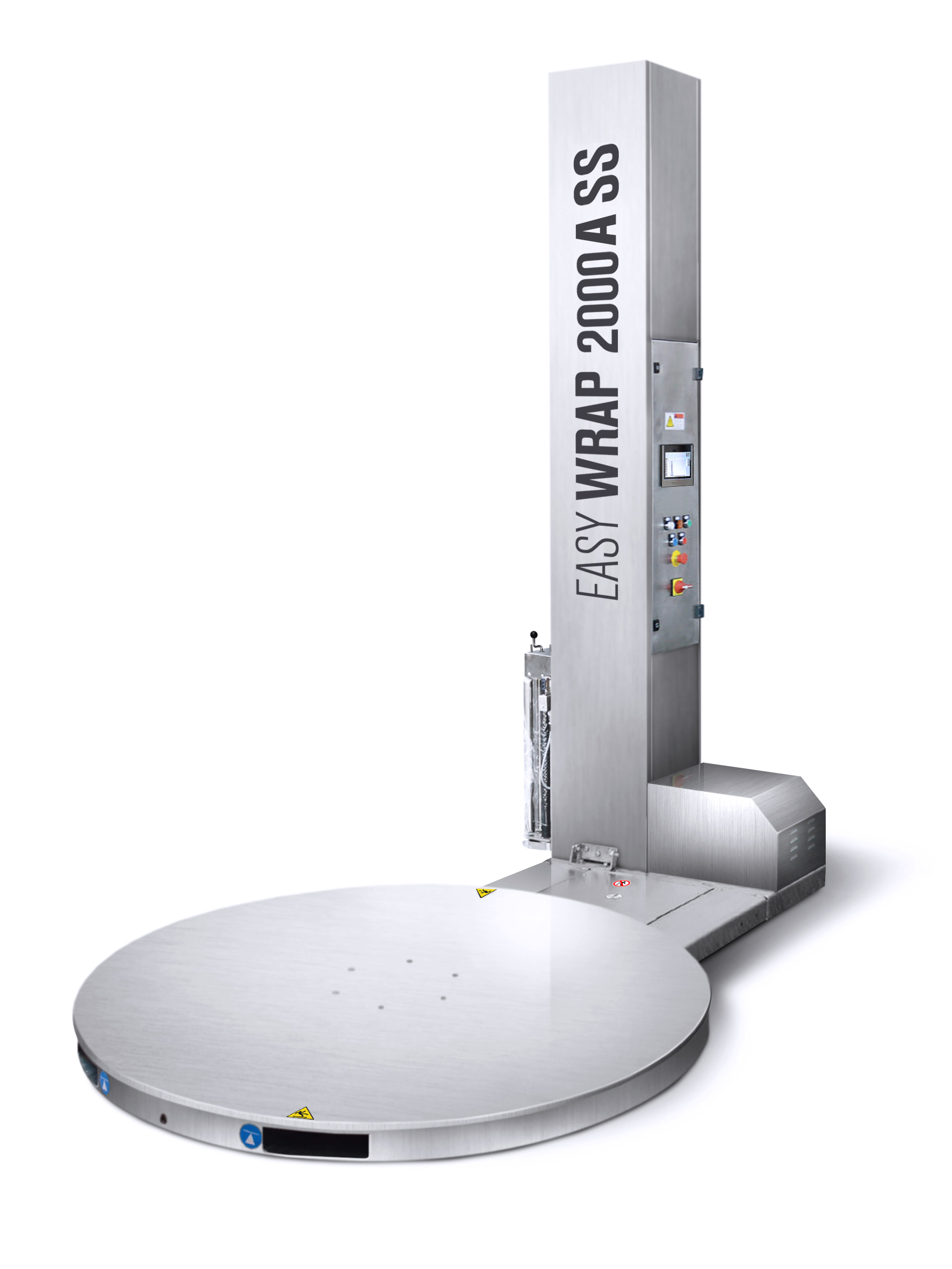

Model Easy Wrap 2000 A SS in stainless steel SUS 304 is a semi-automatic machine for stretch-film wrapping of palletized loads.

WITH
OPERATOR

POWER
SUPPLY

FILM
ROLL

PALLETIZED
LOAD





Wrapping machine in stainless steel

Model Easy Wrap 2000 A SS in stainless steel SUS 304 is a semi-automatic machine for stretch-film wrapping of palletized loads: with the possibility to adjust the film tension by means of a mechanical brake or
motorized prestretch, soft start of the turntable by inverter, manual or automatic working cycle, the possibility to adjust the number of upward and downward rounds of the pallet. The machine is equipped with PLC and digital color display 7,2”.

Features and parameters

TECHNICAL FEATURES
  • Machine structure in stainless steel SUS 304
  • Mast hinged at the base for easy and quick installation
  • Film carriage by chain transmission
  • Turntable ø 1650 mm
  • Max height products: 2200 mm
  • Environmental humidity conditions: ≤ 90%
  • Operating temperature range: + 0° C to + 40 ° C
  • Machine controlled by PLC and color 7,2” touch screen
  • Film carriage fall protection system
  • Acoustic wearning at the cycle start
  • Mechanical brake
  • Ermegency stop in compliance with CE regulations
  • Front and back holes for forklifting of the machine
  • Inverter for soft start and indexed stop of the
  • turntablee
Parameters adjustable by control panel
  • Number of rounds in bottom
  • Number of rounds in top
  • Adjustable turntable speed from 0 to 12 rpm
  • Carriage ascending and descending speed
  • Photoeye reading delay adjustable
  • Carriage ascending and descending functions
  • Cycle counter
Functions activated by control panel
  • Cycle ascending and descending
  • Cycle only ascending
  • Top sheet function with top and bottom cycle
  • N°08 programmable wrapping cycles
Characteristics of the workable product
  • Dimension max product: L 1000 x W 1200 mm.
  • Useful height: H 2200 mm.
  • Max weight product: 2000 Kg.
FILM ROLL FEATURES

Film roll external diameters: 280 mm.


Film roll height: 500 mm.

Film roll thickness: 12 – 35 my.

Film roll internal diameter: 76 mm.
Film roll max weight: 20 Kg

TECHNICAL SHEET PDFDownload technical sheet PDF

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 2600 x W 1675 x H 2400 mm

Weight machine

600 Kg

Turntable diameter

1650 mm

Max load weight

2000 Kg

Turntable speed

0 – 12 (rpm)

Carriage up-down speed

1,4 – 4 (m/min)

Film tensioning

Mechanical brake

Maximum pallet dimensions

L 1000 x W 1200 x H 2200 mm

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll max weight

20 Kg

Film roll thickness

12 – 35 (µm)

Photoeye to detect door height

std

Forklifting

Front and back

Model Easy Wrap 2000 SS in stainless steel SUS 304 is a semi-automatic machine for stretch-film wrapping of palletized loads

Wrapping machine Easy Wrap 2000 A SS
