Easy Wrap 2000 B is a semi-automatic machine for stretch film wrapping of palletized loads. Equipped with a motorized trolley with fixed ratios for film prestretch.

Touch monitor

Graphic display

Pre-stretch film

Photocell sensor



Semi-automatic wrapping machine with motorized film pre-stretch at fixed ratios

The Easy Wrap 2000 B wrapping machine is a semi-automatic machine for wrapping palletised loads using stretch film. The machine is electrically powered and requires an energy power of 1.25 Kw. The Easy Wrap 2000 B wrapping machine is equipped with a motorized carriage with fixed ratios for pre-stretching the film and has a table rotation speed of 12 rpm (rotations per minute). Alternatively, the Easy Wrap 2000 A pallet wrapper is also available with film tensioning by means of a mechanical clutch (positioned on the reel-holder trolley) manually adjustable by the operator.

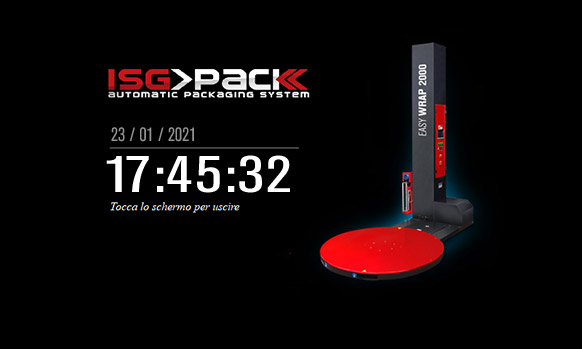

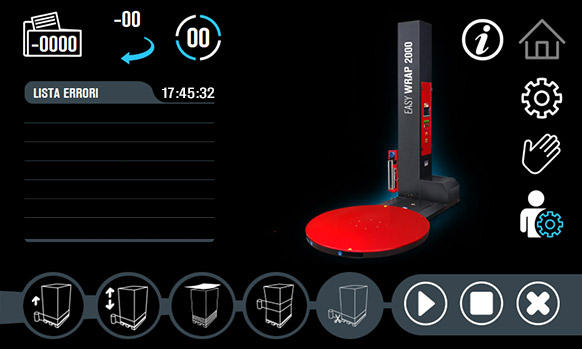

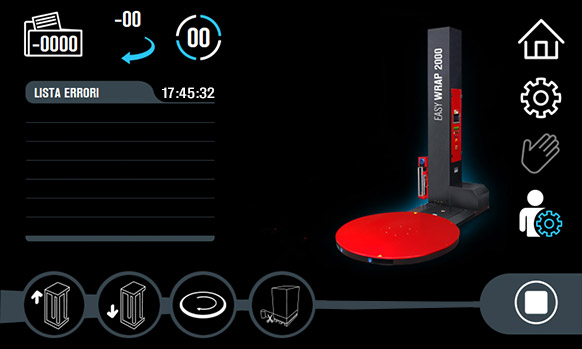

New graphic interface of the touch display

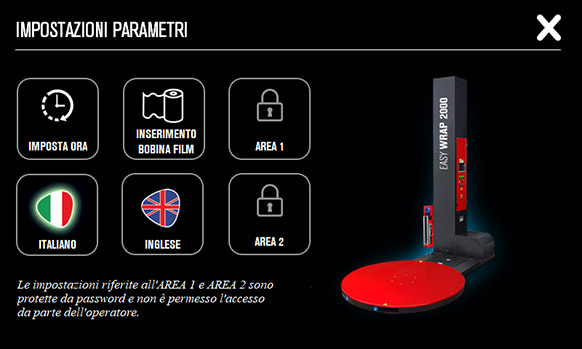

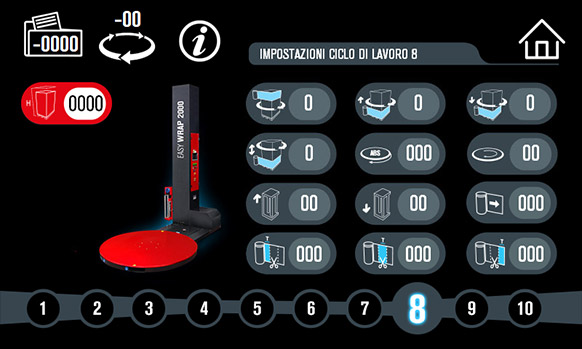

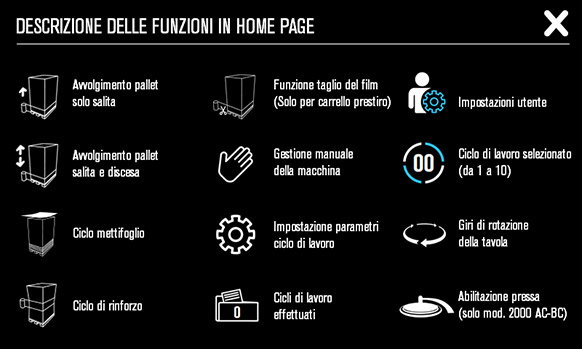

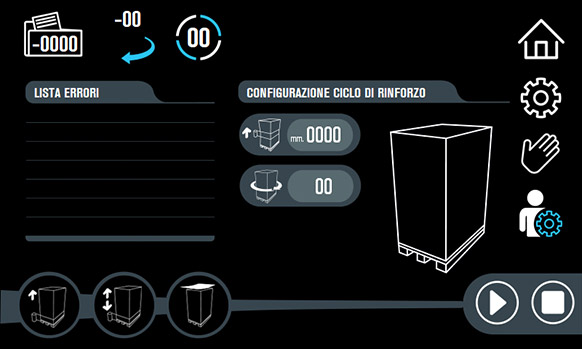

Since January 2021, significant improvements have been made in the use and management of the machine on the user side. In addition to the language selector, the navigation logics on the touch screen have been updated and simplified to make the most of the potential of this winder. Each screen is equipped with an information icon that briefly describes the specification of the commands on the display, with instant warnings that alert the operator of any anomalies or alarms during work operations. The operations aimed at reinforcement cycles on pallets and the settings of the work cycles have been revised, which give the possibility to manage and store up to 10 different work settings, optimizing (based on the values entered), a considerable saving of the stretch film.

General characteristics of the wrapping machine

The Easy Wrap 2000 B wrapping machine has a table diameter of 1650 mm (standard) and can process products with dimensions of L 800 x W 1200 x H 2200 mm, supporting a maximum weight on a plate of 2000 Kg. In addition to having the possibility to adjust the number of revolutions on the lower and upper part of the pallet, it is possible to adjust the gradual start of the table by means of an inverter. The pallet wrapper is equipped with PLC and 7.2 color touch screen display that allow you to adjust parameters such as the trolley ascent and descent speed, photocell reading delay, cycle counter, etc.

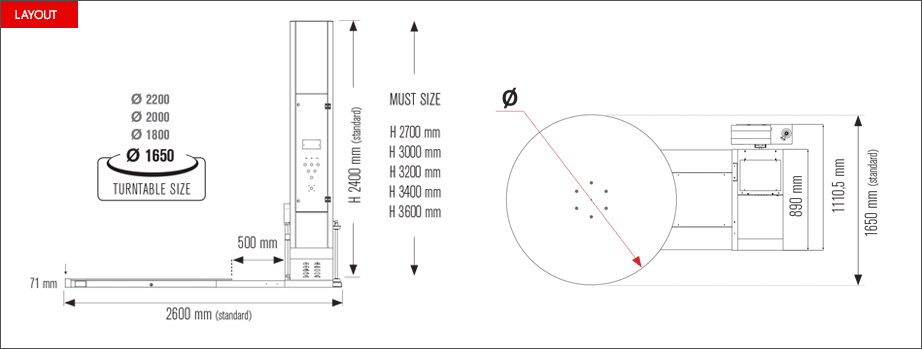

Layout modello Easy Wrap modello B

Characteristics and parameters of the packaging machine

Technical characteristics of the pallet wrapper
  • Machine structure in painted steel sheet
  • Column hinged at the base for quick and easy installation
  • Roll-holder carriage transmission by chain
  • Table diameter ø 1650 mm (standard)
  • Useful height 2200 mm
  • Ambient conditions humidity: ≤ 90%
  • Machine management via PLC and 7.2 “color touch screen display
  • Roll holder trolley fall prevention system
  • Acoustic alarm and flashing light at the start of the cycle
  • Carriage with motorized pre-stretch
  • Emergency button for CE regulations
  • Possibility of forking the machine both front and rear with forklift
  • Inverter for progressive start and indexed stop of the table.
Parameters adjustable from the control panel
  • Digital adjustment of the revolutions at the base of the pallet
  • Turn to the top of the pallet
  • Table rotation speed from 0 to 12 rpm.
  • Carriage ascent and descent speed
  • Photocell reading delay management
  • Film holder trolley up / down buttons
  • Cycle counter
Cycles selectable from the control panel
  • Ascent and descent cycle
  • Ascent only cycle
  • Ascent and descent cycle with feeder
  • 10 cycles that can be stored from the control panel
Characteristics of the workable product
  • Max Product Dimensions: L 800 x W 1200 mm.
  • Useful height: H 2200 mm.
  • Max product weight: 2000 Kg.
Film reel features

Maximum external dimensions: 280 mm.


Internal film dimensions: 76 mm.

Film film height: 500 mm.

Maximum reel weight: 16 Kg.

Download the PDF of the machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 2600 x W 1675 x H 2400 mm

Weight machine

600 Kg

Turntable diameter

1650 mm

Max load weight

2000 Kg

Turntable speed

0 – 12 (rpm)

Carriage up-down speed

1,4 – 4 (m/min)

Film pre-stretch

Mechanical brake carriage

Maximum pallet dimensions

L 800 x W 1200 x H 2200 mm

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1,25 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll max weight

20 Kg

Film roll thickness

12 – 35 (µm)

Photoeye to detect door height

std

Forklifting

Front and back
