Wrapping machine Easy Wrap 2000 DWC

In stock

REQUEST QUOTE NOW

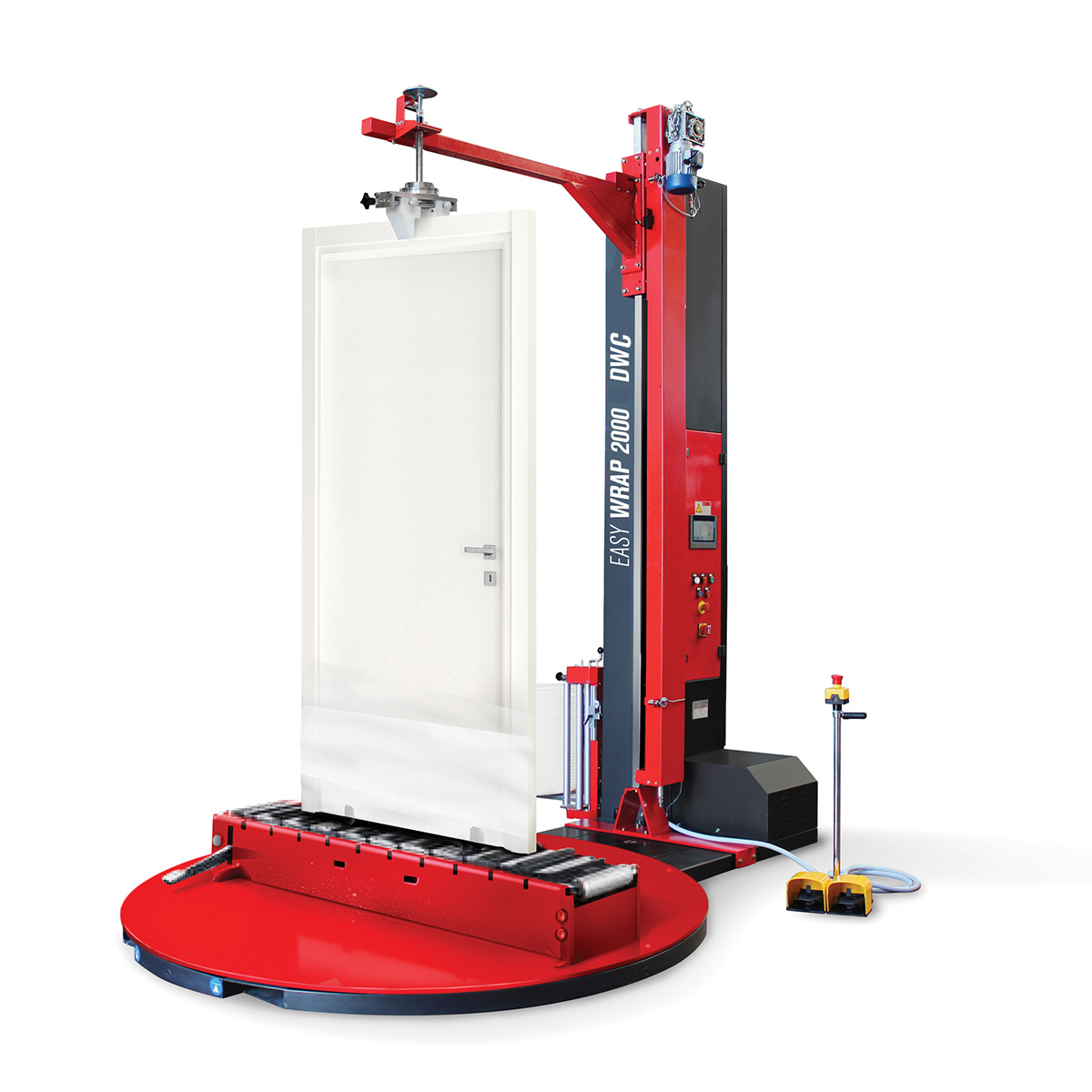

The Easy Wrap 2000 DWC model is a semiautomatic machine designed for vertical winding of windows, doors, shower boxes, etc. The model is available in a version with a mechanically tensioned or motorized trolley with fixed ratios. The machine is equipped with PLC and 7.2 "color touch screen display and idle roller conveyor with mechanical block placed on the rotating table.



Touch monitor

Sensore fotocellula

Portata massima 150 Kg

Electric top press

Wrapping machine special for wrapping doors, windows and windows frames in general.

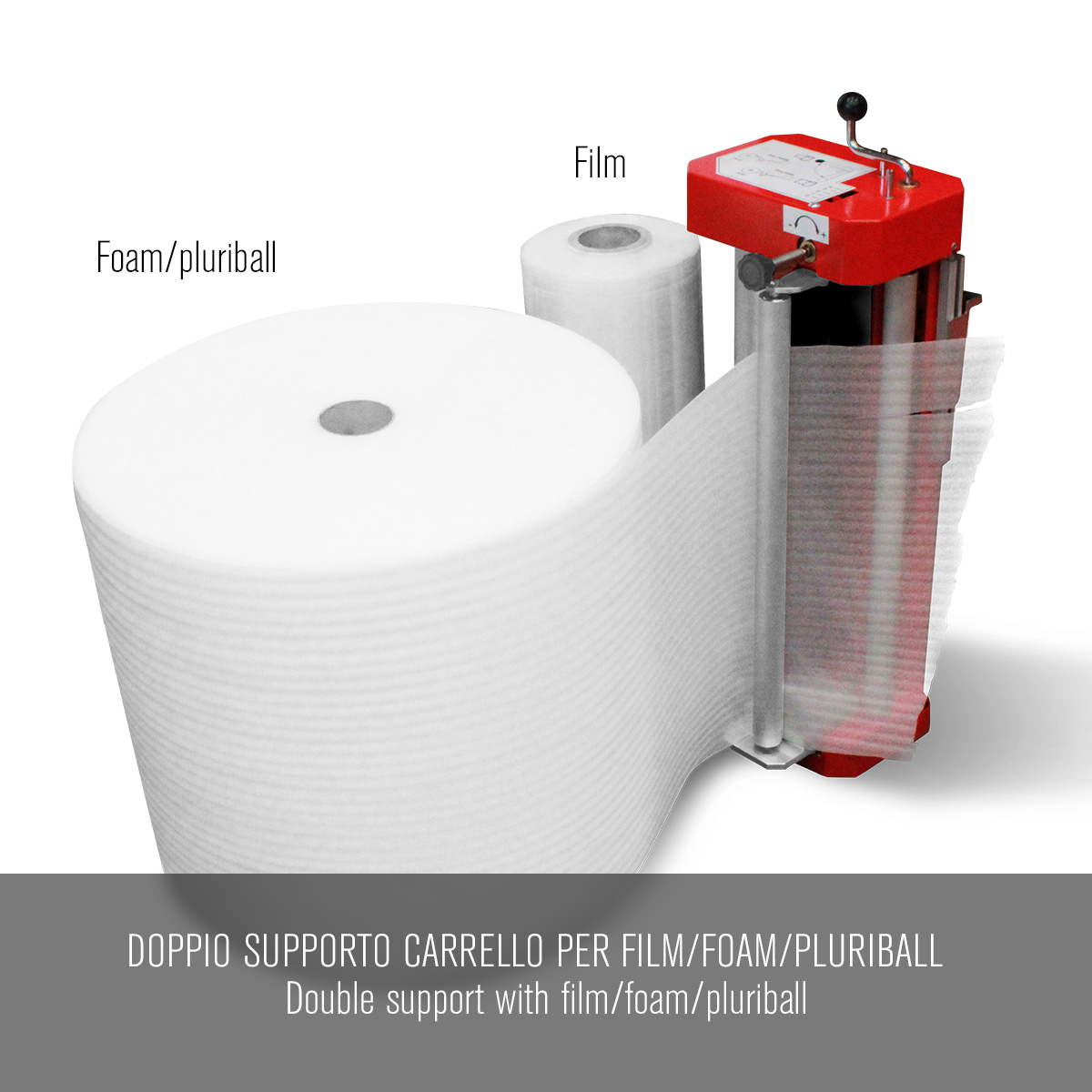

Wrapping machine Easy Wrap 2000 DWC special for wrapping doors, windows and windows frames in general. It has a device that allows to simultaneously use bubble wrap/foam and stretch film. The machine has

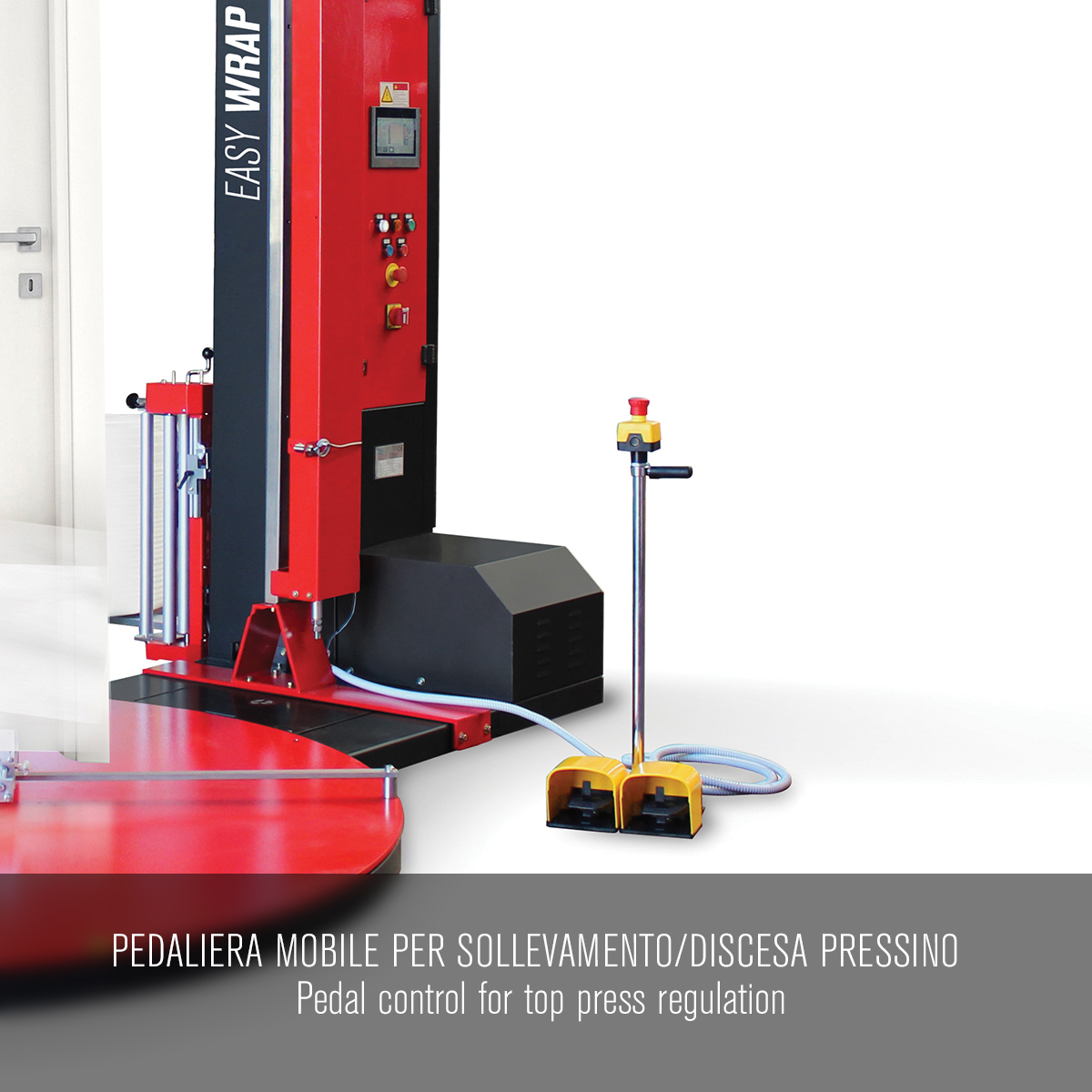

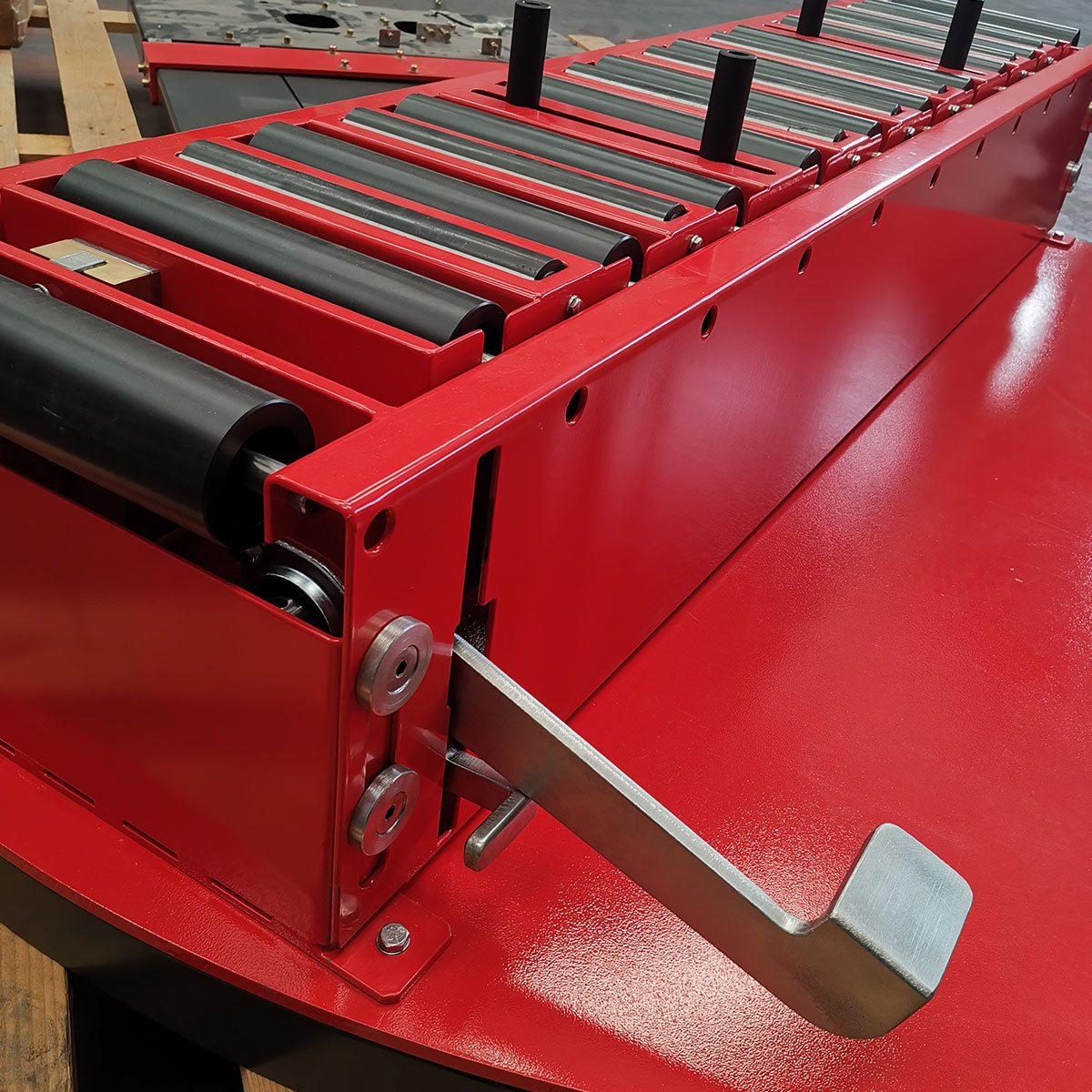

a double mobile pedal control that allows to adjust the movement of the top press. The machine is equipped with roller conveyor with lower locking.
system..

General characteristics of the wrapping machine

The Easy Wrap 2000 DWC wrapping machine has a plate diameter of 1650 mm (standard) and can process products with dimensions of L 1650 x W 50/200 x H 2000 mm, supporting a maximum weight on a plate of 150 Kg. In addition to having the possibility to adjust the number of revolutions on the lower and upper part of the pallet, it is also possible to adjust the gradual start of the table by means of an inverter.

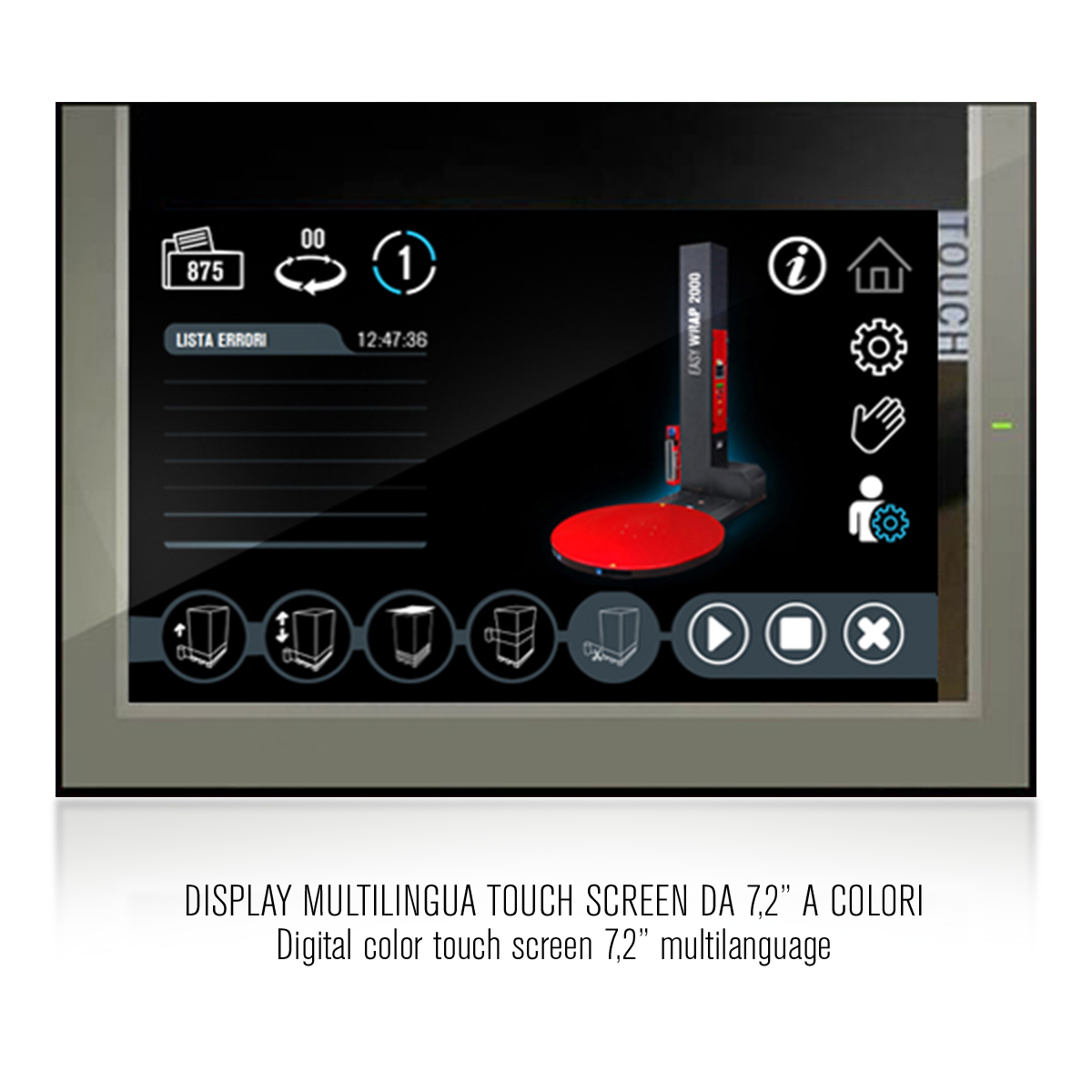

The machine is equipped with PLC and 7.2 color touch screen display that allow you to adjust up to three different types of product wrapping, in addition to setting parameters such as the carriage ascent and descent speed, photocell reading delay, cycle counter, etc.

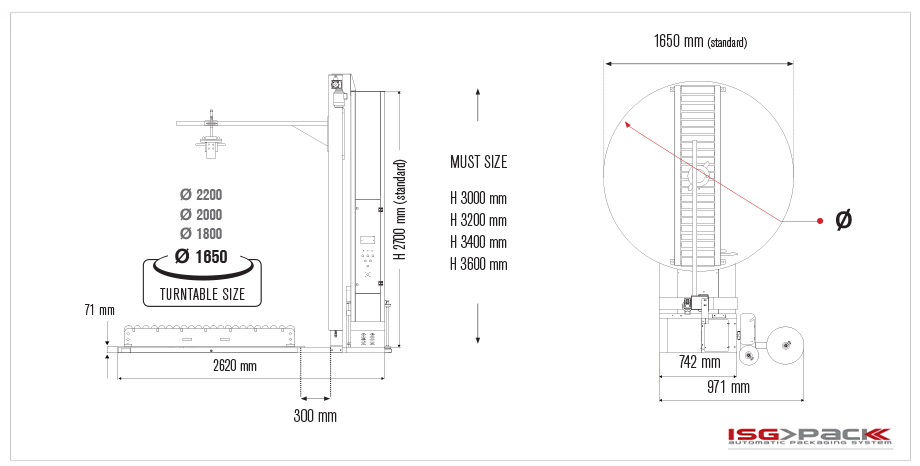

Layout avvolgitore per serramenti Easy Wrap 2000 DWC

Characteristics and parameters of the wrapping machine

Technical features
  • Machine structure in painted steel sheet
  • Electric top press
  • Film carriage and turntable by transmission chain
  • Machine controlled by PLC and color touch screen 7,2”

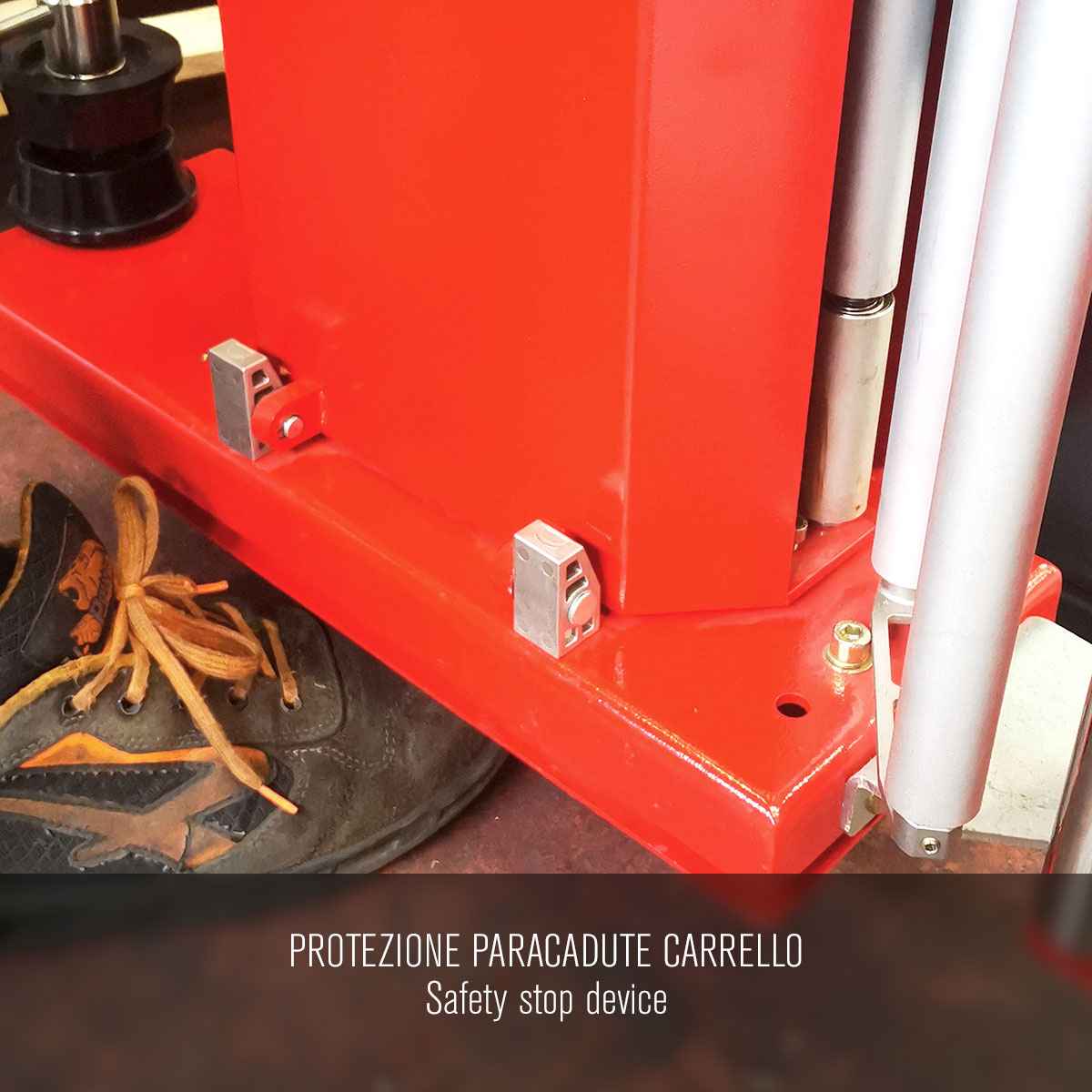

  • Safety stop device at the base of the carriage in compliance with the CE regulations

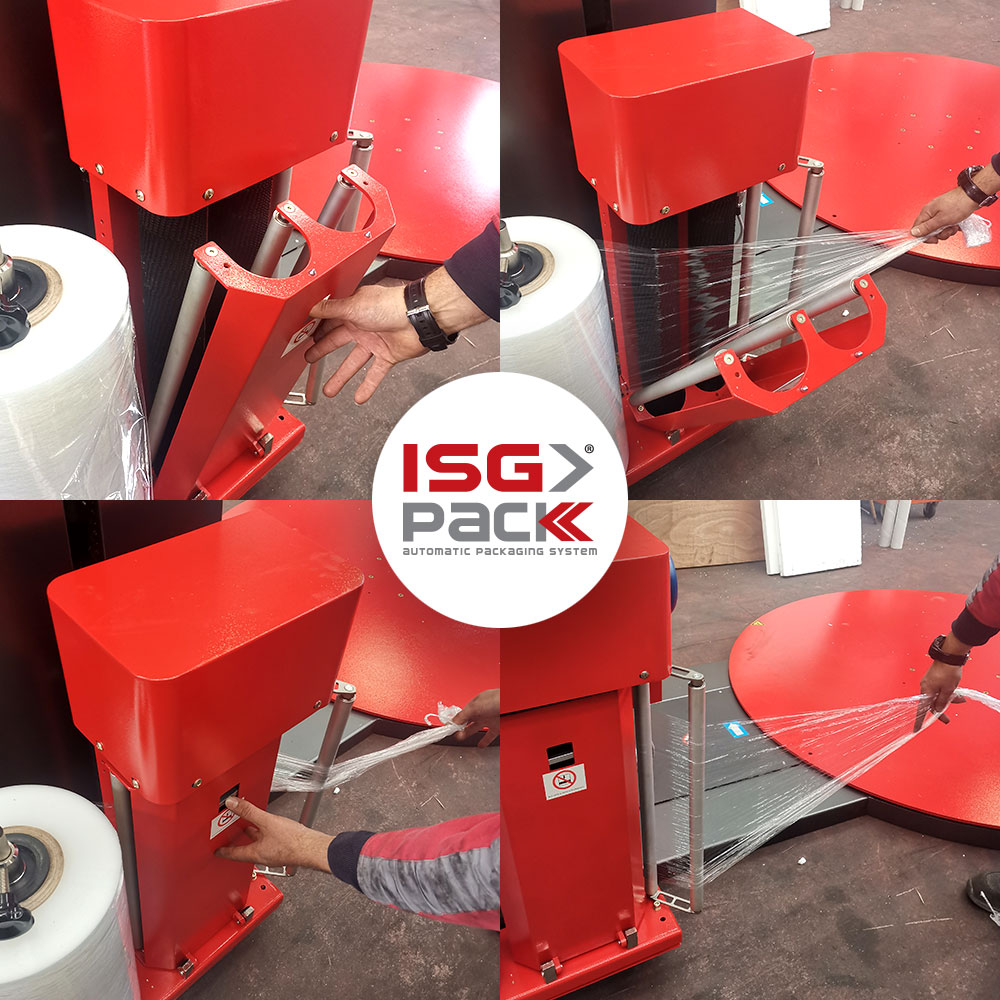

  • Lock/unlock brake device for easy film hooking to the pallet

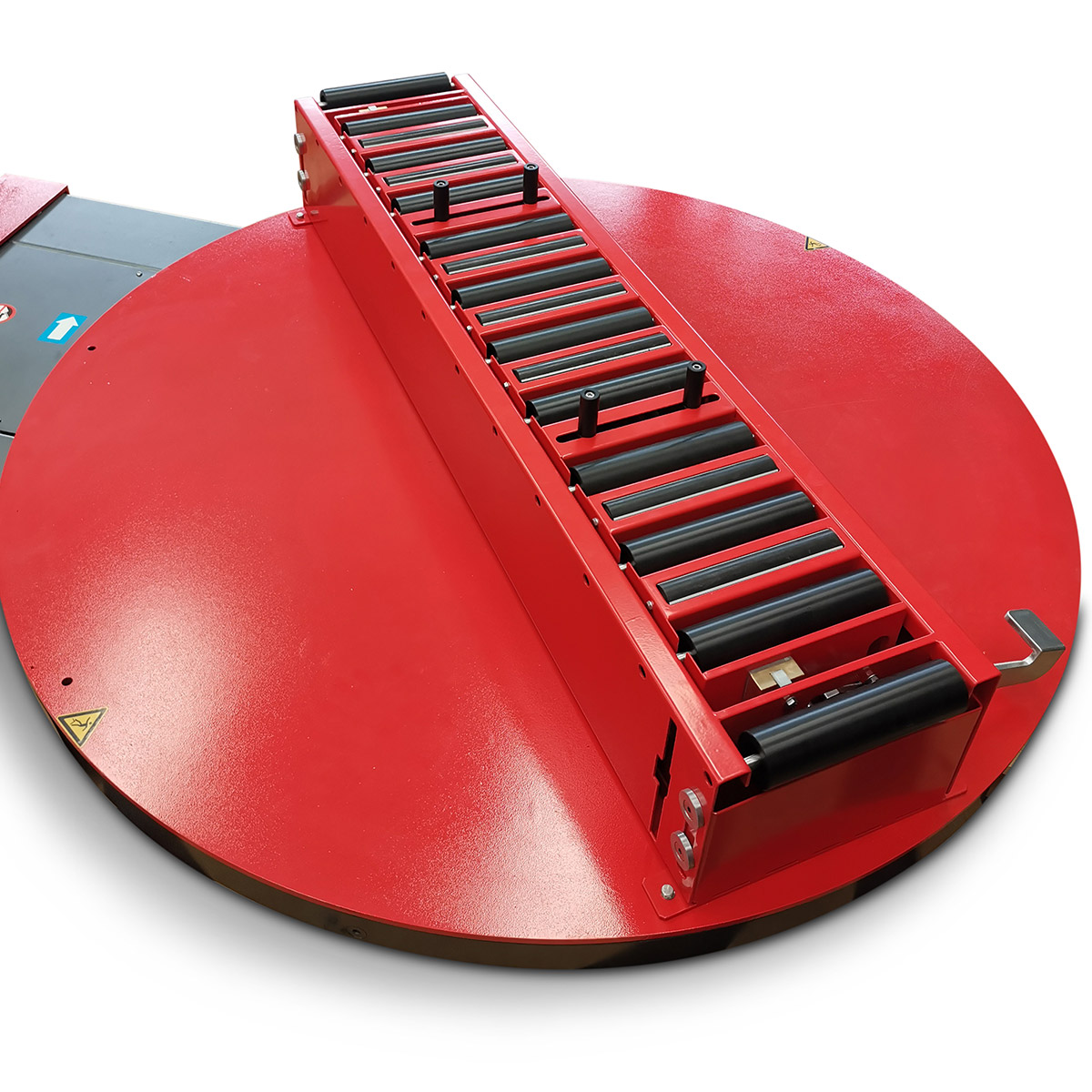

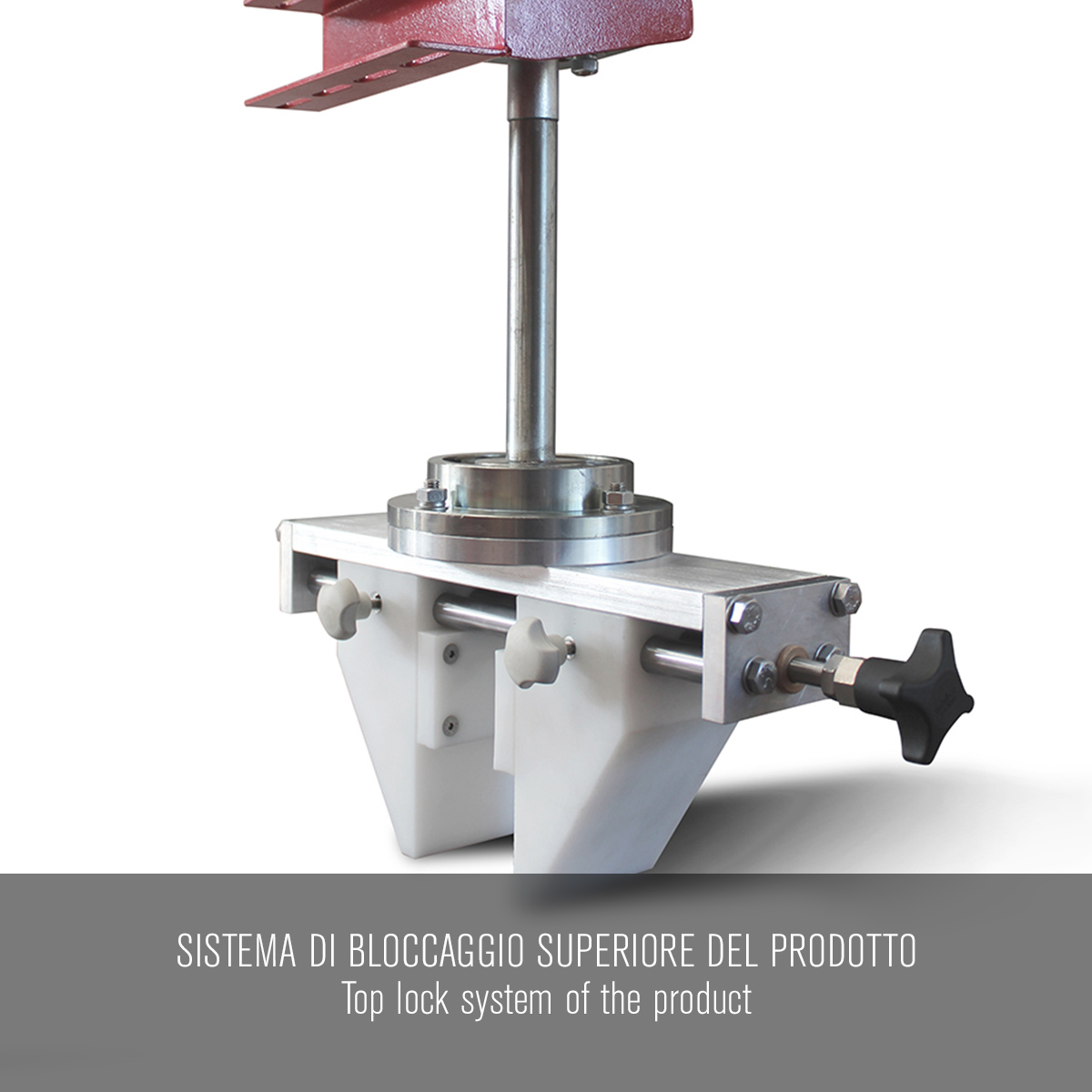

  • Adjustable upper product sealing device and roller conveyor with lower locking system (170 Kg)
  • Film tensioning by mechanical brake (Easy Wrap 2000 A DWC)

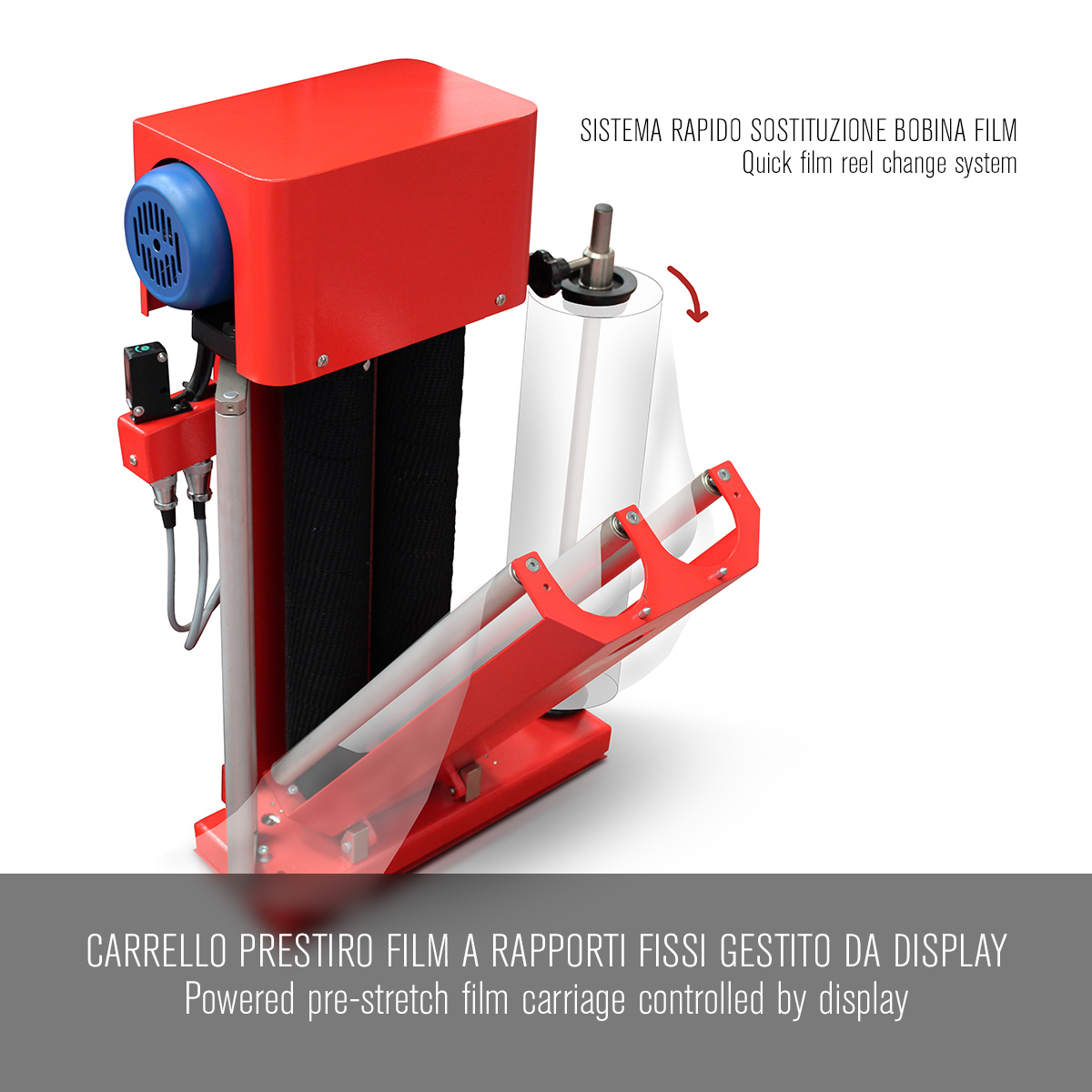

  • Motorized pre-stretch set at 200% with possibility to interchange pre-stretch ratio 100%, 150%, 250% (Easy Wrap 2000 B DWC)

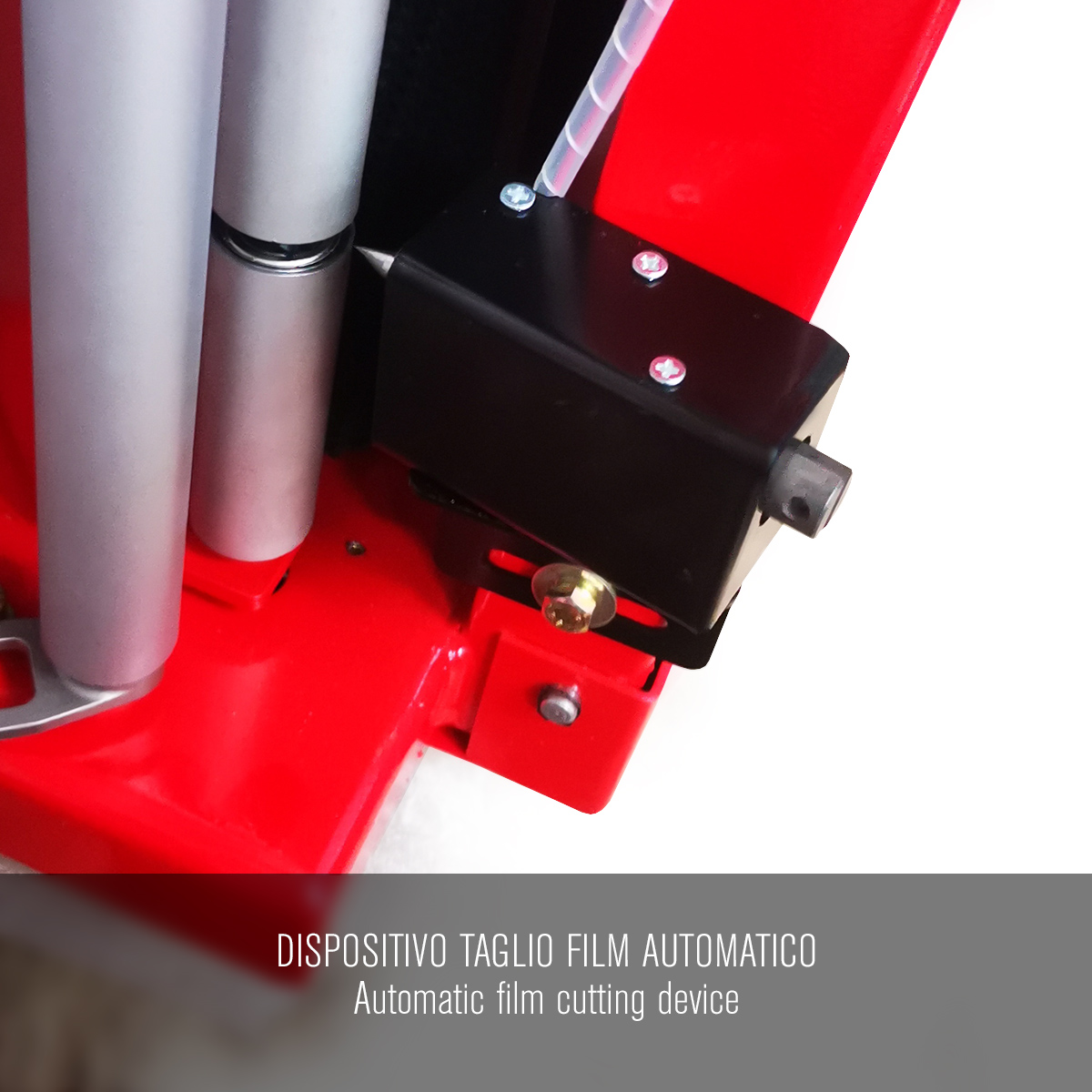

  • Automatic film cutting at the end of the cycle (Easy Wrap 2000 B DWC)
  • Emergency stop in compliance with CE regulations
  • Reset button in compliance with CE regulations

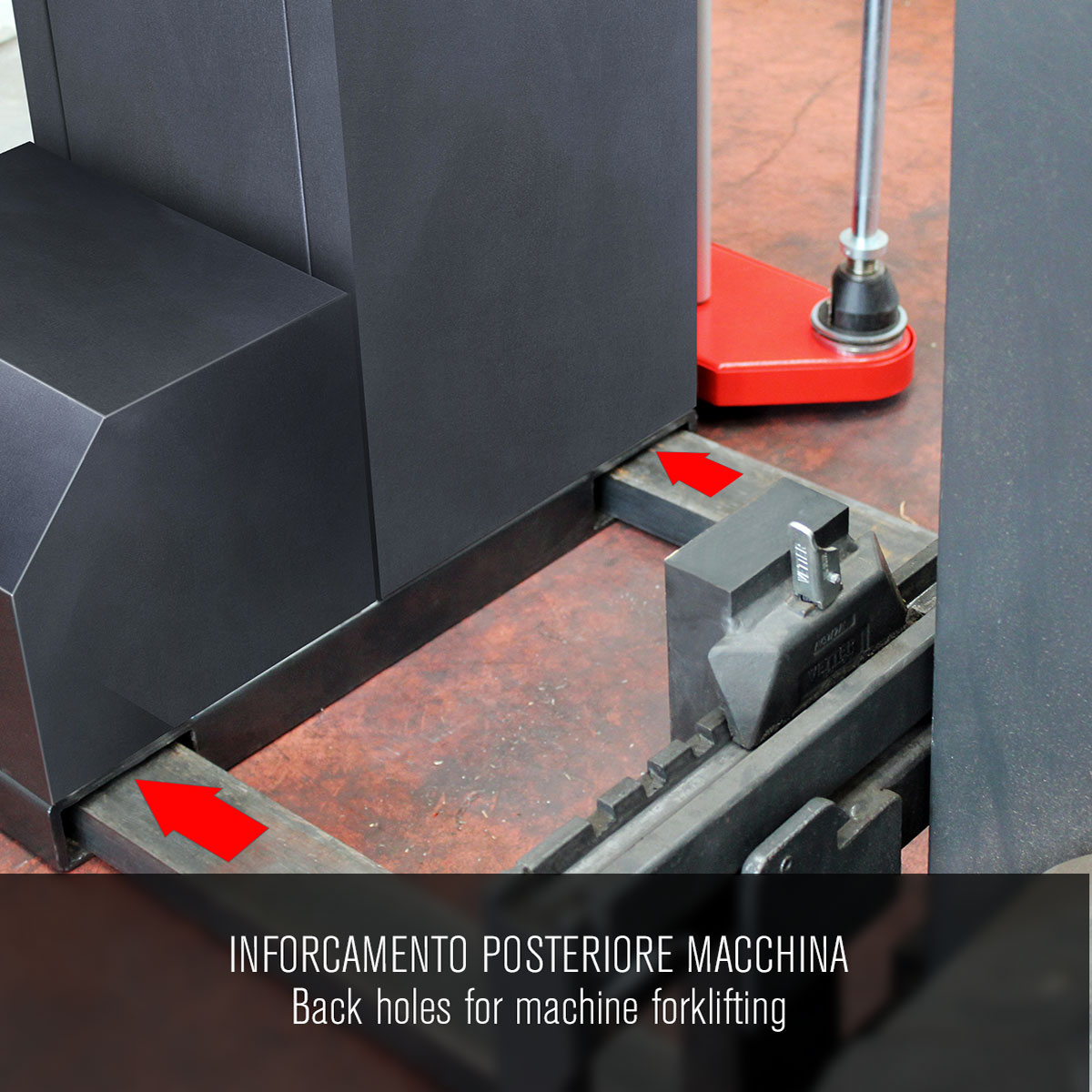

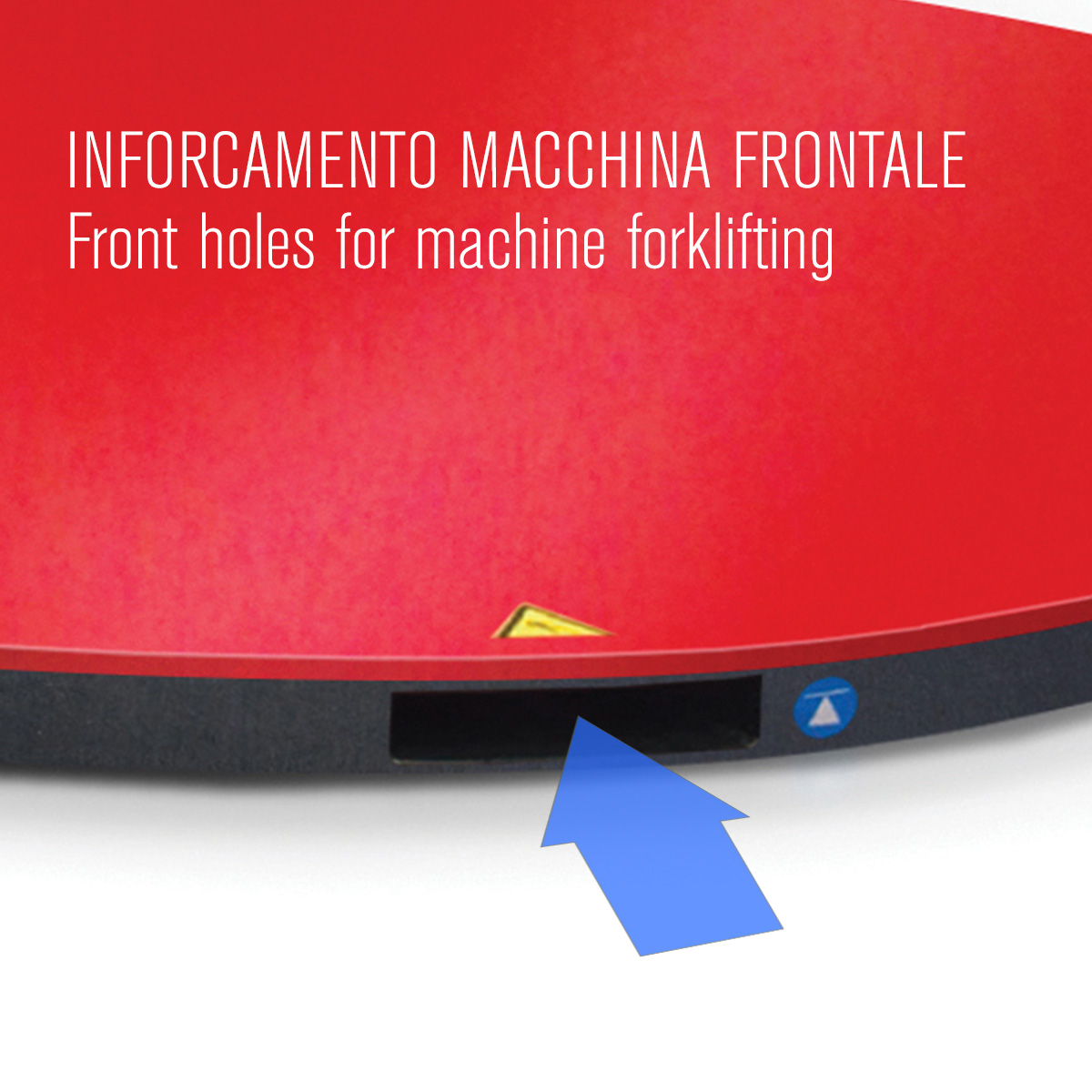

  • Front and back holes for forklifting
  • Inverter for soft start and indexed stop of the turntable
  • Cycle counter
  • Manual machine working mode
Parameters adjustable by control panel:
  • Number of rounds at the bottom of the pallet (start cycle)
  • Number of rounds at the top of the pallet
  • Number of rounds at the bottom of the pallet (at the end of the cycle)
  • Adjustment turntable speed from 0 to 12 rpm
  • Adjustment ascending carriage speed
  • Adjustment descending carriage speed
  • Adjustable number of ascending and descending cycles
  • Adjustable turntable indexing time
  • Adjustable photocell delay
  • Adjustable film cut parameters (Easy Wrap 2000 B DWC)
  • On / off automatic cutting film (Easy Wrap 2000 B DWC)
Cycles activated by control panel
  • Ascending and descending cycle
  • Only ascending cycle
  • Reinforce cycle at a programmed height (ascending cycle, ascending/descending cycle)
  • Altimeter cycle (pallet height setting) to detect the pallet excluding the photocell
  • Top sheet cycle (ascending/descending)
  • N° 10 programmable cycles by touch screen according to the product/pallet to wrap
Caratteristiche del prodotto lavorabile
  • Dimensioni Max Prodotto: L 1650 x W 50/200 mm.
  • Altezza utile: H 2000 mm.
  • Peso max del prodotto: 100 Kg.
Film reel features
  • Maximum external dimensions: 280 mm.
  • Internal film dimensions: 76 mm.
  • Film film height: 500 mm.
  • Maximum reel weight: 16 Kg.

Download machine sheet pdf

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561

Additional information

Power supply

220 volts

Power supply frequency

50/60 Hz

Installed power

1 Kw

Turntable speed

0 – 12 (rpm)

Carriage up-down speed

1,4 – 4 (m/min)

Turntable diameter

1650 mm

Weight machine

800 Kg

Max dimension film roll

H 500 mm Ø 280 mm

Film roll thickness

12 – 35 (µm)

Photoeye to detect door height

std

Forklifting

Front and back
