Semi-automatic carton sealer for large format boxes

Semi-automatic taping machine ideal for taping cardboard boxes of varying sizes

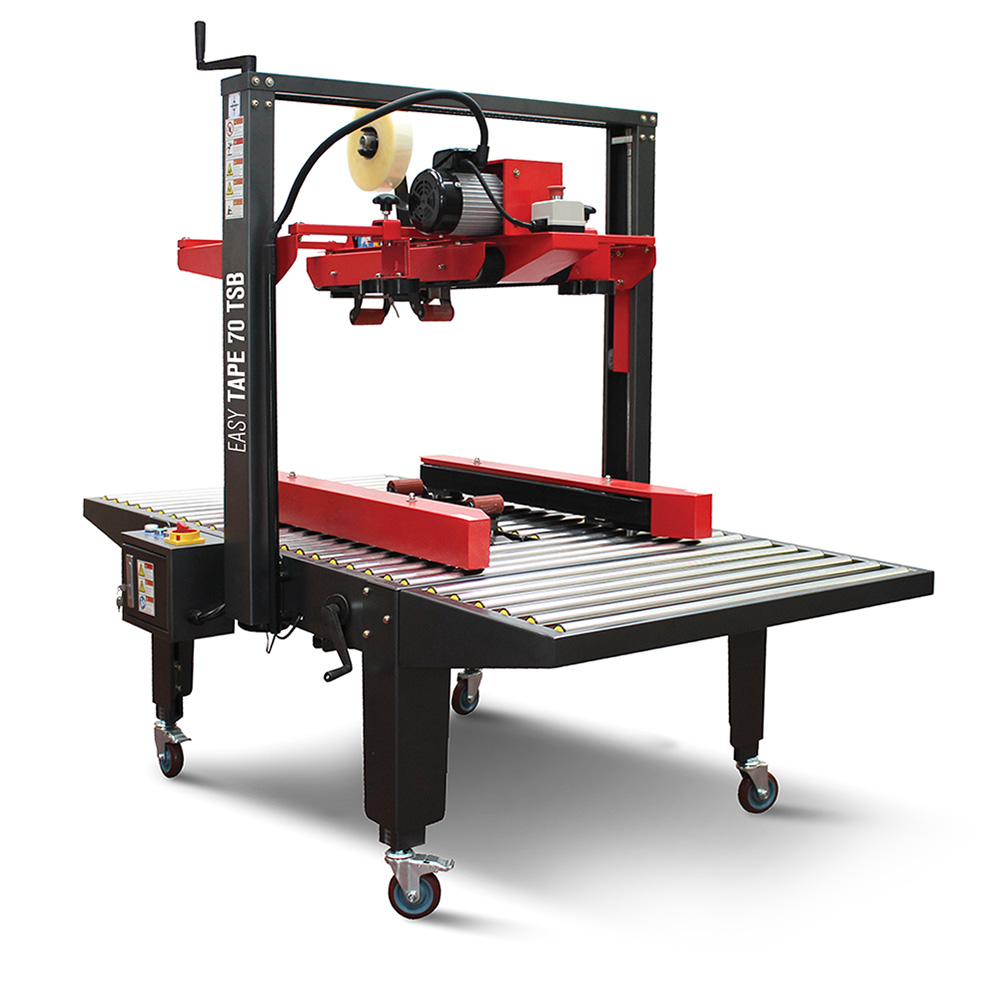

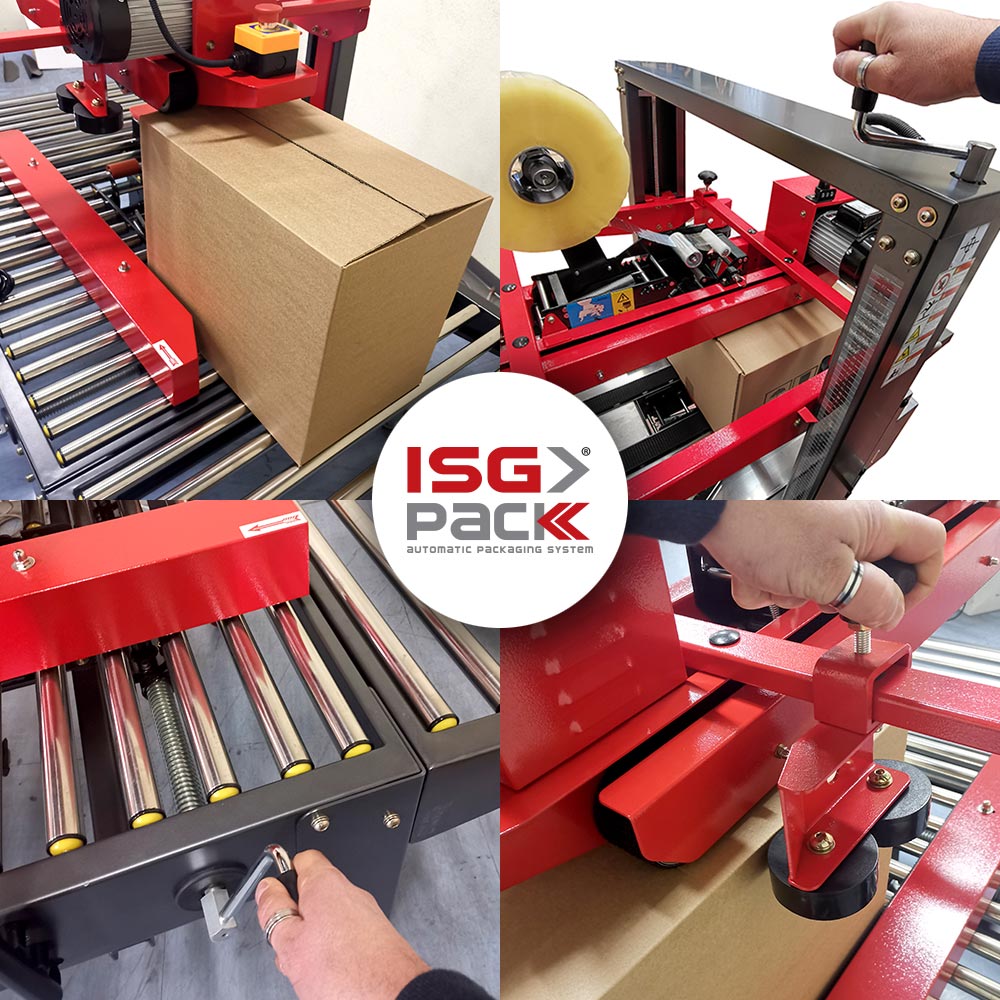

The Easy tape 50 TSB semiautomatic taping machine is a manual sizing machine designed for large-format boxes, accessorized with double taping head for taping the bottom and top of the fixed-format American-type box.

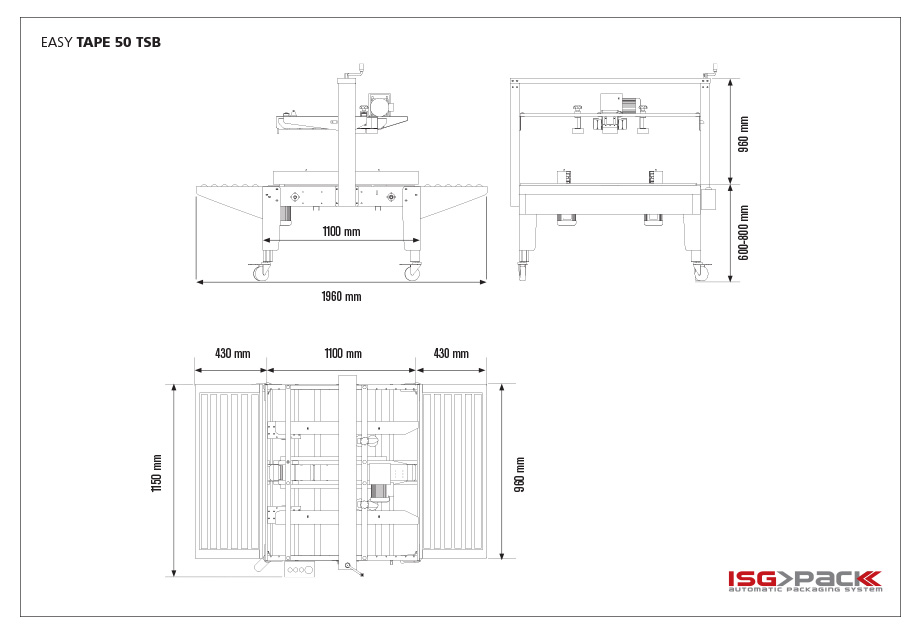

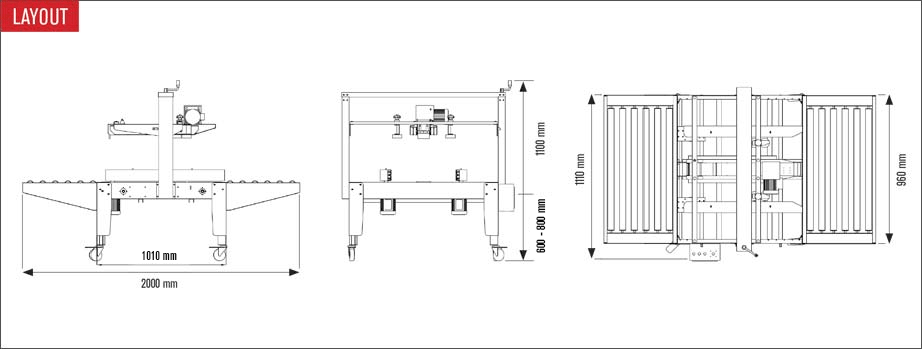

Layout nastratrice semiautomatica Easy tape 70 TSB

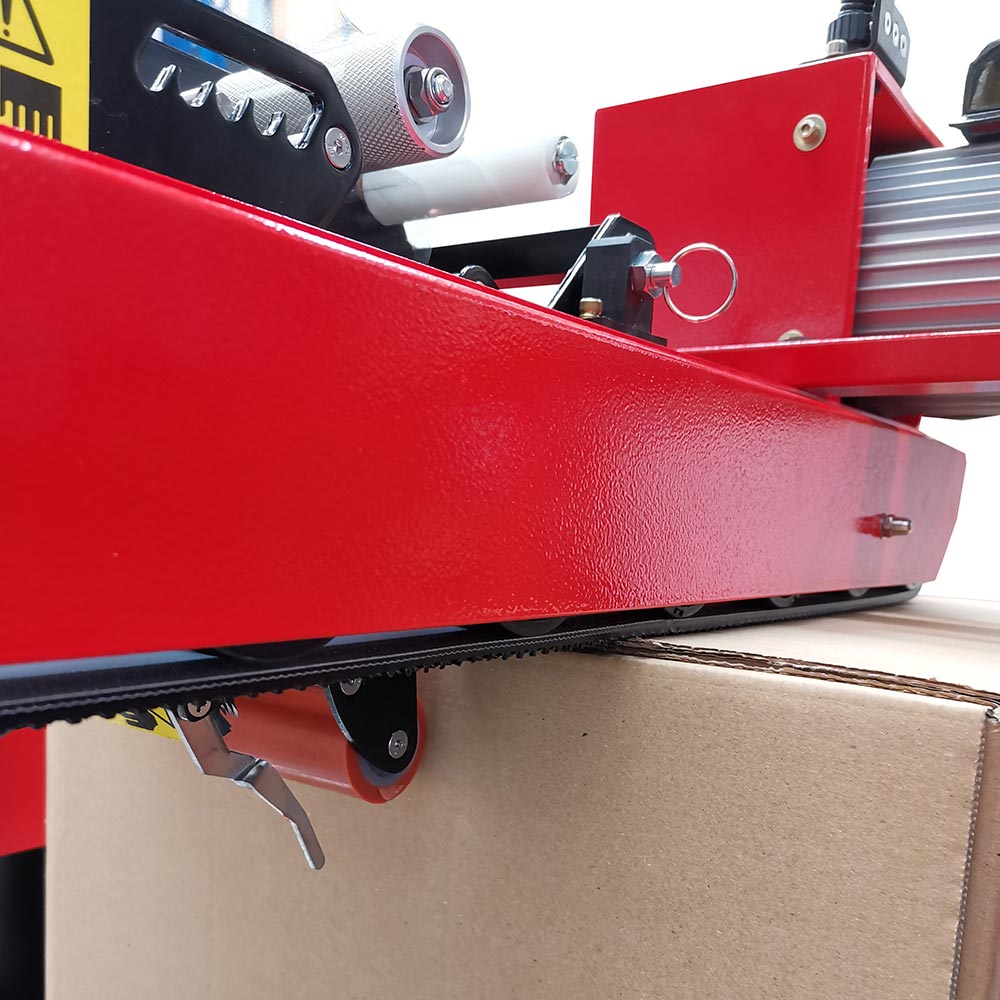

The advancement of the box, is done by means of two drive belts present in the lower part (driven by two motors) and two upper belts (driven by one motor), thus ensuring maximum uniformity of sliding.

The result is perfect alignment of the flaps and thus optimal sealing, which is carried out by the high-performance taping heads.

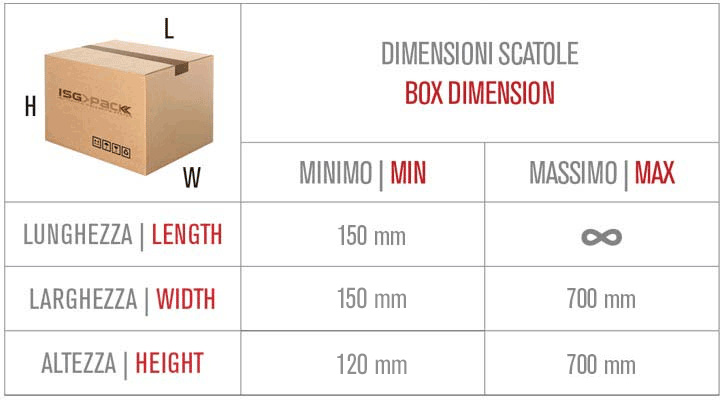

dimensioni scatole della nastratrice semiautomatiche

caratteristiche nastri adesivi utilizzati dalla nastratrice semiautomatiche

Features and parameters of the taping machine

Technical features

Taping machine weight: 180 Kg
Power supply: 220 Volts – 50 / 60 Hz
Box transfer speed: 20 mt / min
Max box weight: 30 Kg
Machine dimensions with roller conveyors: L 2000 x W 1100 x H 1700-1900 mm
Max noise level: ≤ 75 db
Emergency mushroom for CE regulations
Adhesive tape: Kraft, Polypropylene, PVC
Standard taping heads: 50 – 75 mm
Work surface height: 600 – 800 mm

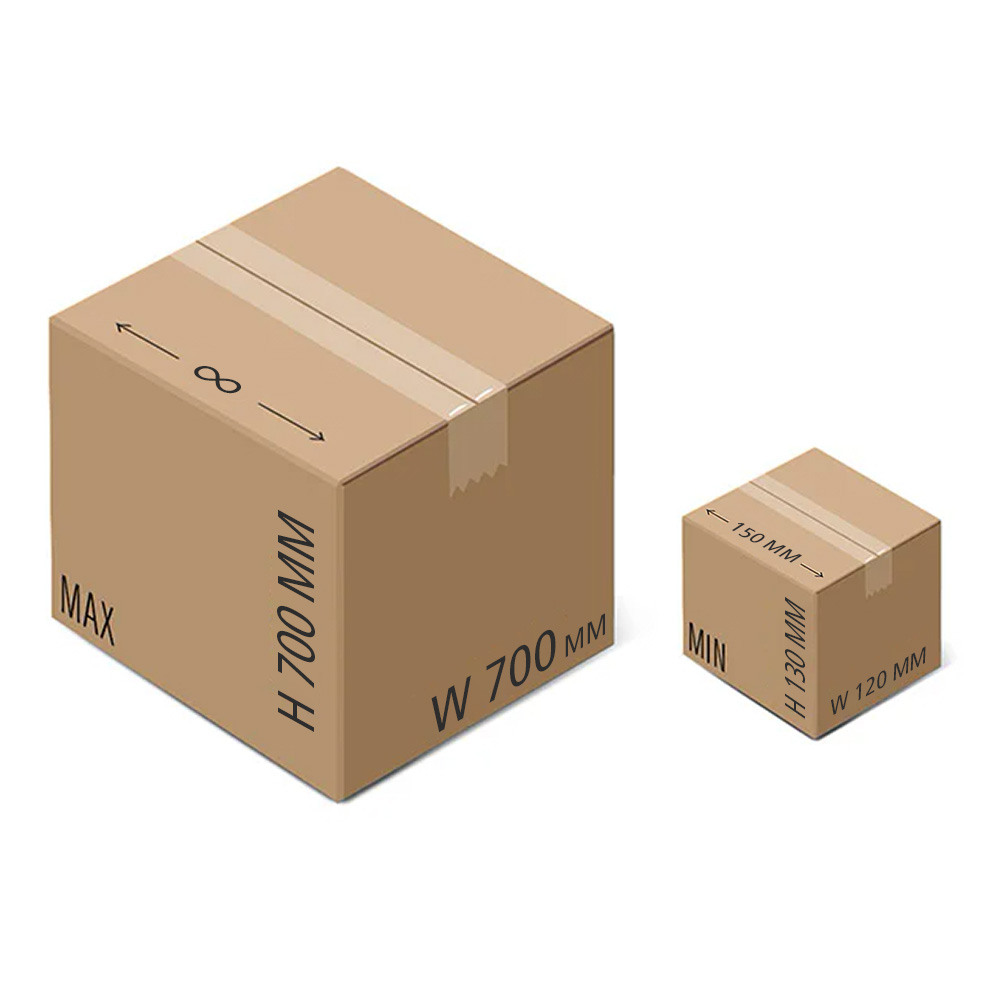

Workable product

Min dimensions of boxes: L 150 x W 150 x H 120mm
Max dimensions of boxes: L ∞ x W 700 x H 700 28mm
Type of boxes: American type

Download PDF of the taping machine

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine size	L 2000 x W 1110 x H 1650 x 1850 mm
Net weight	180 Kg
Power supply	220 Volt
Power supply frequency	50/60 Hz
Installed power	0,60 kW
Adhesive tape	Kraft, polipropilene, pvc
Sealing speed	Fino a 15 scatole min
Transfer speed	20 mt/min
Cinghie di trascinamento
Working table height	600 / 800 mm
Dimension Min. product	L 150 x W 150 x H 120 mm
Max product size	L ∞ x W 700 x H 700 mm
Type of boxes	American type
