Semi-automatic Case Erector Easy Form 50 SS

In stock

REQUEST QUOTE NOW



The Easy Form 50 is a semiautomatic machine for forming American-style cartons with the function of folding the four lower flaps and supporting them during an operator's filling operations.

WIGHT
80 kG

WITH
OPERATOR

UNIFORM
CARTON

BOTTOM
FORMING



Semi-automatic case former machine for closing the 4 flaps placed on the bottom of the box

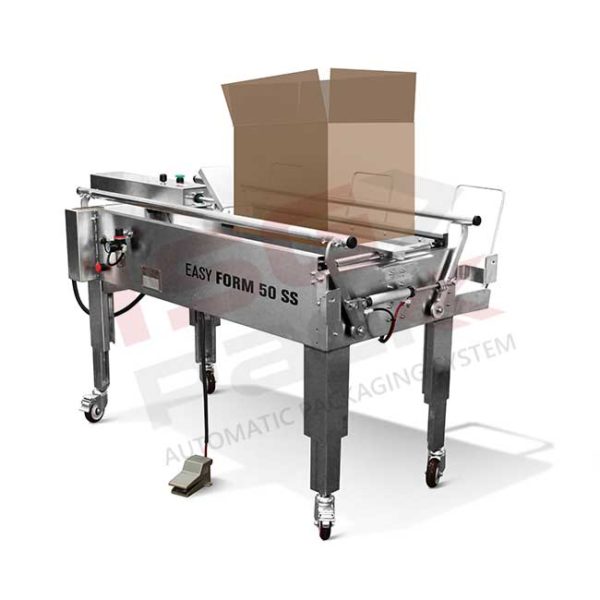

The Easy Form 50 SS carton packer is a semiautomatic stainless steel machine designed for forming American-style cartons with the function of folding the four lower flaps and supporting them during an operator’s filling operations. Also available in the standard version in the Easy Form 50 model.

How the carton form machine works

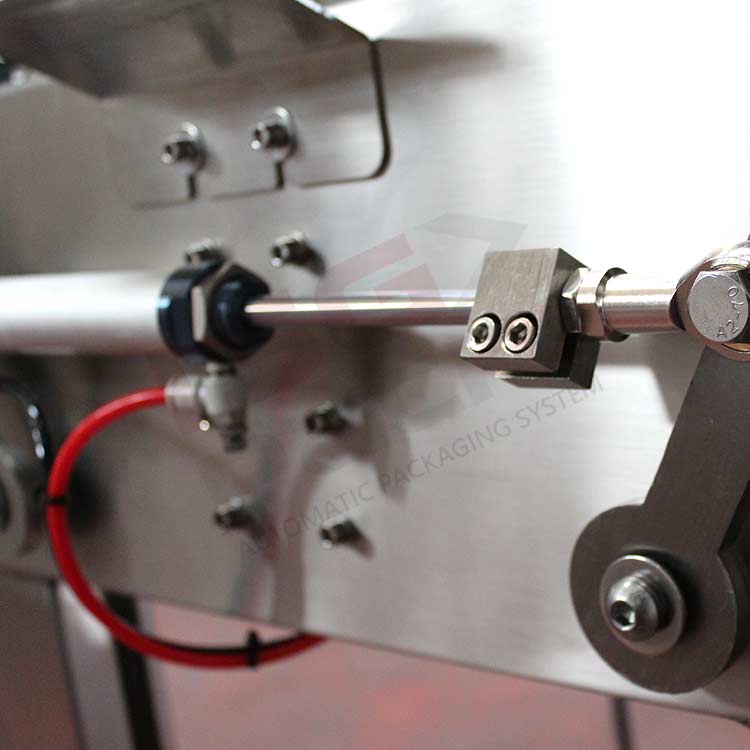

The box is inserted into the carton form machine in an inclined manner, pressing down to fold the front and back flaps. It is then pushed forward to operate the side flaps with the pneumatic control and keep the bottom closed, making filling operations easier. Once finished, the operator will manually close the four upper flaps and accompany the box to the sealing station, an operation facilitated by its sliding on the roller table.



REQUEST A QUOTATION

Save time! Request a quote for this product without obligation. Fill in all the fields below correctly. One of our sales staff will answer you as soon as possible. Alternatively contact us at +39 06 9160 7561

Additional information

Machine dimensions

L 1450 x W 950 x H 700/860 mm

Net weight

80 Kg

Maximum noise

75 dB

Air consumption

1,5 Nlitri/min

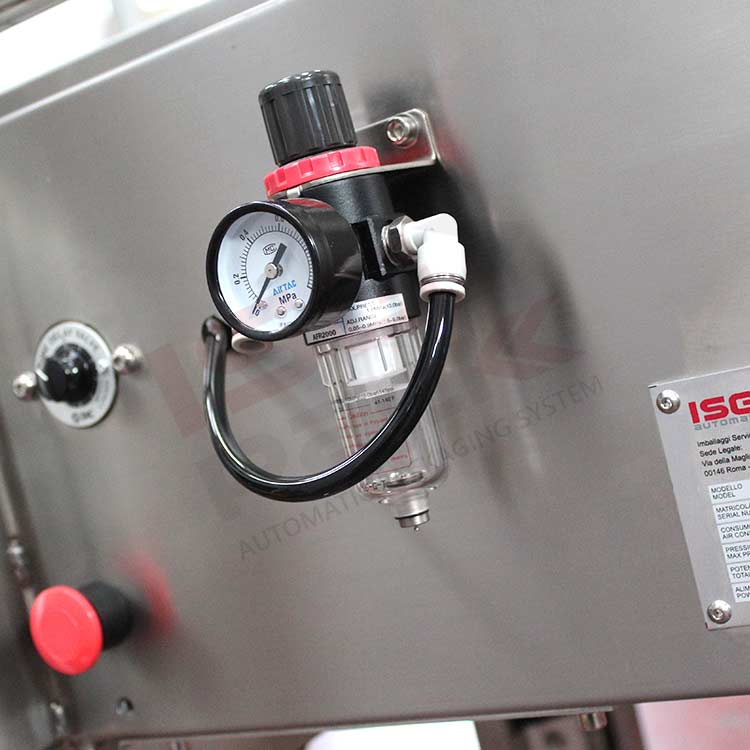

Air pressure

6 bar

Working table height

700/860 mm

Production capacity

up to 5 boxes

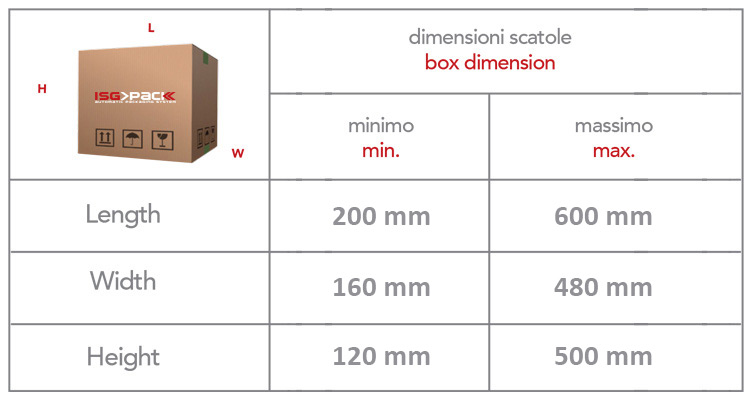

Dimension Min. product

L 200 x W 160 x H 120 mm

Max product size

L 600 x W 480 x H 500 mm

Type of boxes

American type

Box storage

20 Boxes
