Shrinking tunnel double chamber S55 DC

In stock

REQUEST QUOTE NOW

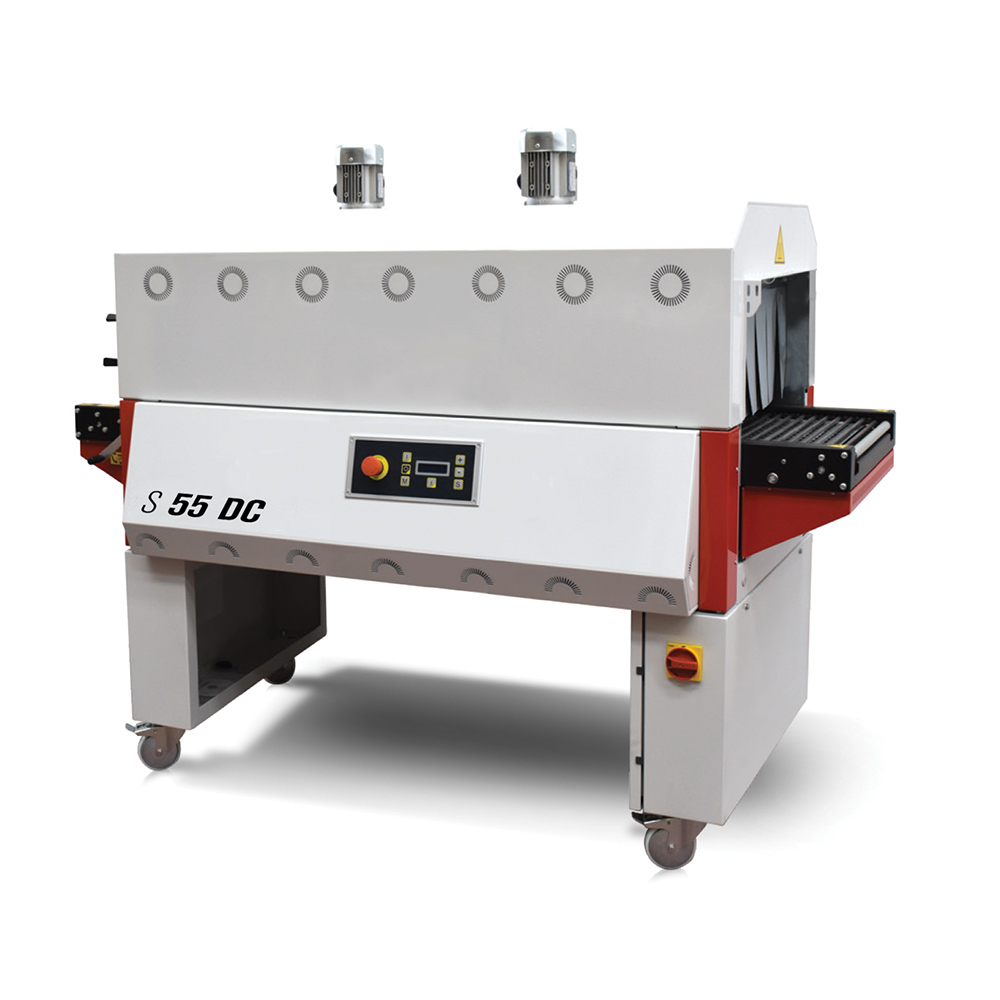

Shrinking tunnel S 55 DC model a double chamber with a max product entrance of H 230 mm. It has a maximum conveyor belt speed of 37.6 m / min. Suitable for responding flexibly and effectively to multiple packaging needs and can work with the most varied types of shrink film.

WHITOUT
OPERATOR

INSTALLED
POWER 12,7 kW

MAX. PACK
HEIGHT 230 mm.

SPEED CONVEYOR
MAX 37,6 mt/min.



Double chamber retraction tunnel with simple and accurate control system

The tunnel, S 55 and S 85, has been improved with some new technical details useful to satisfy all the packaging needs and can work with several shrink film. The tunnel S 55DC and S 85DC has been designed to pack fast the small products with optimum technical and esthetic results. Thanks to the double shrinking chamber, double shrinking adjustment, good thermal insulation, high speed conveyor, optimum air flow control this machine is a very good and efficient packaging solution.

Options and features

OPTIONAL
  • Variable speed fan
  • Free rollers conveyor step 46 mm length 1000 mm
  • Protect outfeed roller conveyor pitch 46 mm length 1000 mm
  • Press product system
FEATURES
  • Diuble chamber shrink tunnel
  • FLXMOD® control system equipped with: Alphanumeric LCD control panel provided with a 16-bit microprocessor card; Modular power section, separated from the control panel and equipped with inverter and remote-control switches
  • This system allows a simple and precise control of all the machine operations, such as:
  • Adjustment of the tunnel conveyor speed
  • Adjustment of the tunnel shrinking temperature
  • Possibility of scheduling up to 10 different work cycles

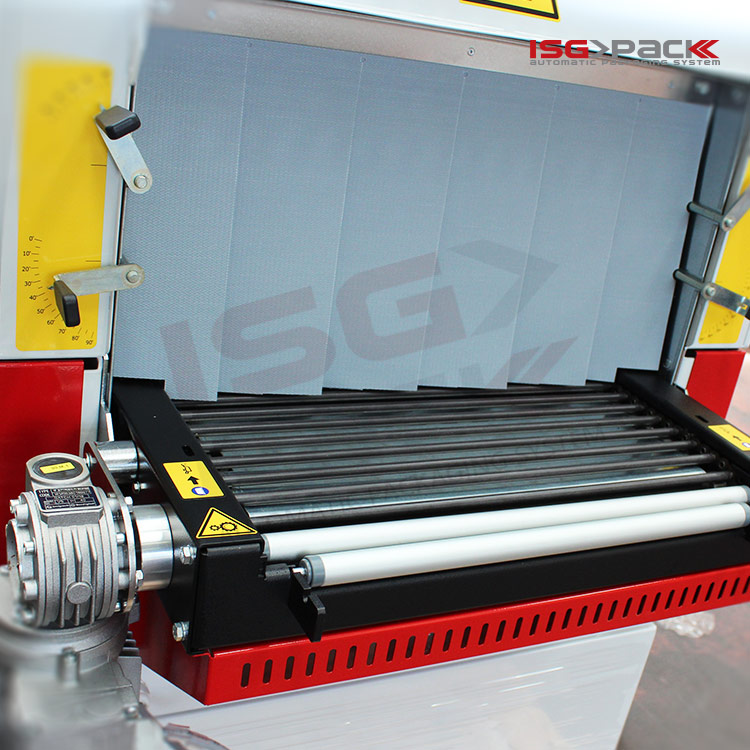

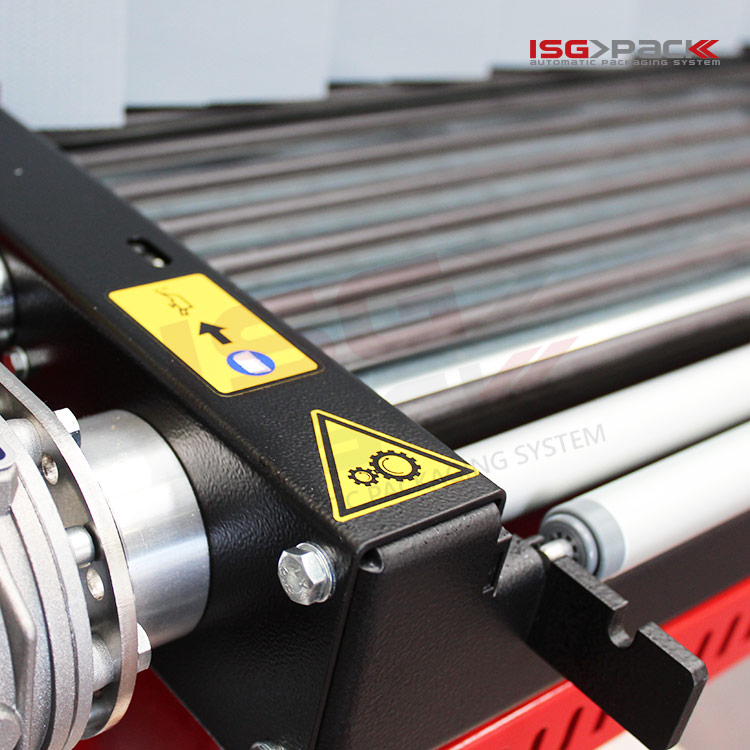

  • Tunnel conveyor with turning or fixed silicone-coated rollers
  • Cooling system
  • Tunnel air flow adjustable by flaps
  • Reduced power consumption
  • Compliance with CE regulations

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

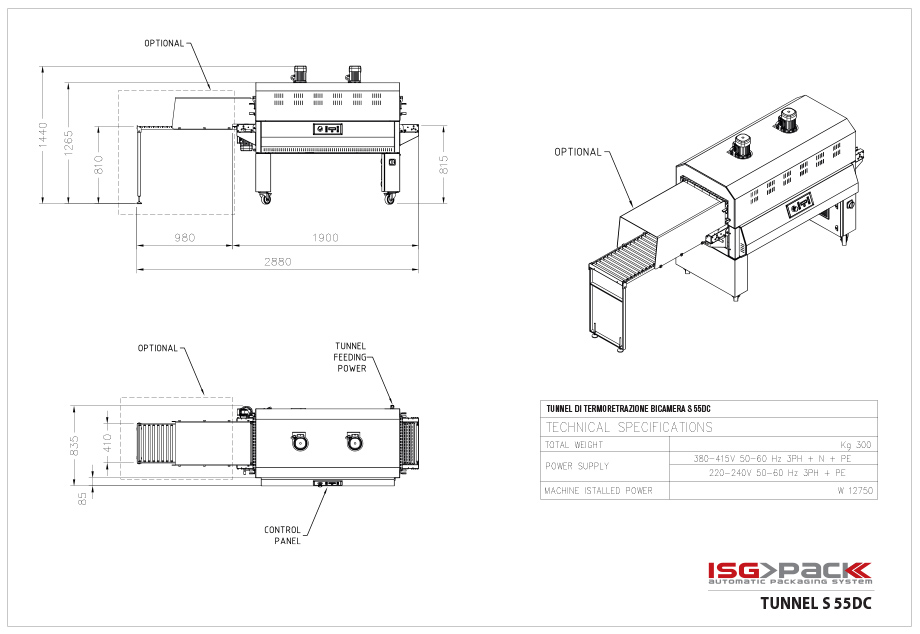

Machine dimensions

L 1880 x W 835 x H 1440 mm.

Net weight

300 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50 Hz

Installed power

12,7 kW

Speed conveyor

5,6 – 37,6 mt/min.

Max height product

230 mm.

Packaging material

Pvc, Poliolefin

Film roll thickness

Up to 50 my
