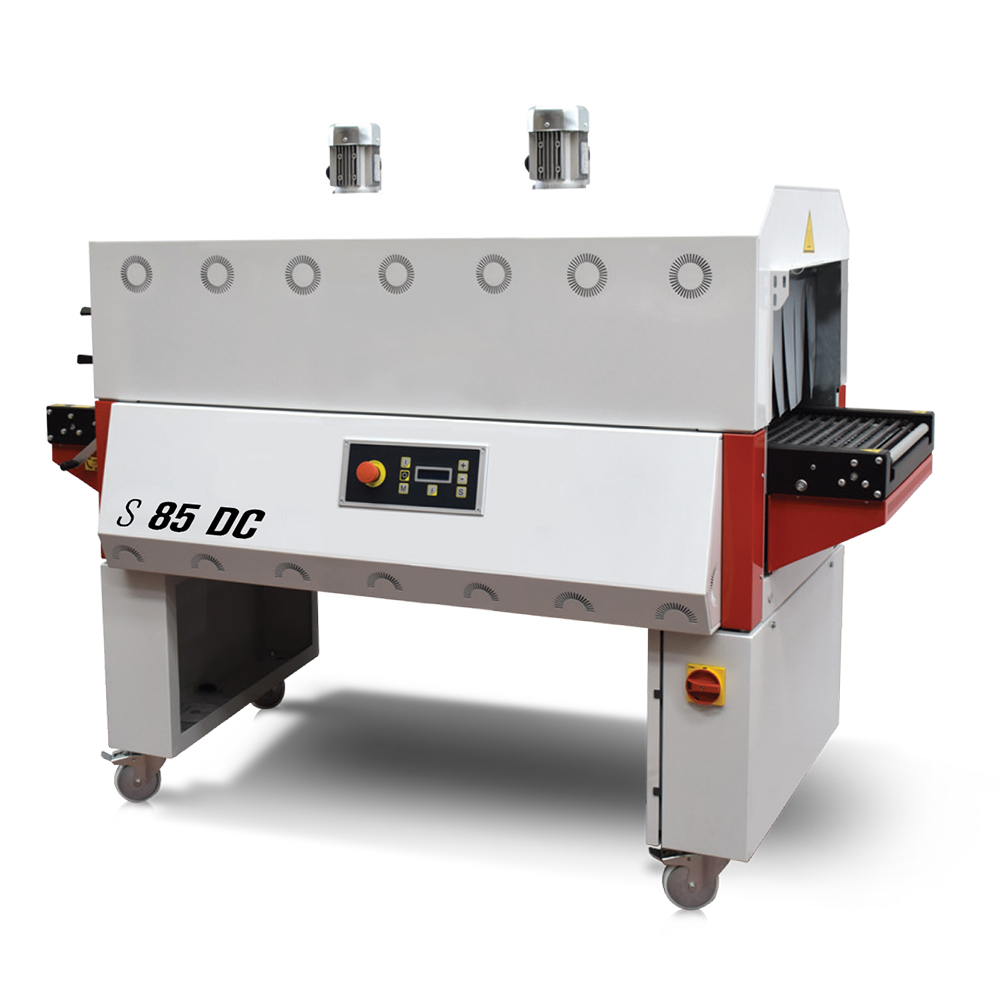

Double chamber retraction tunnel with simple and accurate control system

The tunnel, S 55 and S 85, has been improved with some new technical details useful to satisfy all the packaging needs and can work with several shrink film. The tunnel S 55DC and S 85DC has been designed to pack fast the small products with optimum technical and esthetic results. Thanks to the double shrinking chamber, double shrinking adjustment, good thermal insulation, high speed conveyor, optimum air flow control this machine is a very good and efficient packaging solution.

OPTIONAL

Variable speed fan
Free rollers conveyor step 46 mm length 1000 mm
Protect outfeed roller conveyor pitch 46 mm length 1000 mm
Kit for packs H 350 mm

FEATURES

Diuble chamber shrink tunnel
FLXMOD® control system equipped with: Alphanumeric LCD control panel provided with a 16-bit microprocessor card; Modular power section, separated from the control panel and equipped with inverter and remote-control switches
This system allows a simple and precise control of all the machine operations, such as:
Adjustment of the tunnel conveyor speed
Adjustment of the tunnel shrinking temperature
Possibility of scheduling up to 10 different work cycles
Tunnel conveyor with turning or fixed silicone-coated rollers
Cooling system
Tunnel air flow adjustable by flaps
Reduced power consumption
Compliance with CE regulations

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine size	L 1910 x W 1045 x H 1565 mm
Net weight	380 Kg.
Power supply	380 Volts 3 ph
Power supply frequency	50/60 Hz
Installed power	15,8 kW
Packaging material	Pvc, Poliolefin and Polietilene
Film roll thickness	Up to 80 my
