Speed Strap 505R – 509R – 512R

In stock

REQUEST QUOTE NOW



High-speed high-performance strapping machine suitable to be inserted even in fully automatic packaging lines. It guarantees wide production rates as well as high reliability standards. It has a strapping speed of 50 cycles per minute carried out by the strapping group made up of 24 Volt vcc brushless motors. The strapping machine can also be set with the “mode transit” function, without product strapping.



Parametri reggiatrice ad alta velocità modello Speed Strap seire BP

Fully automatic high speed strapping machine with motorized roller table

The fully automatic and high performing strapping machine, Speed Strap R series, is equipped with a 7,2” touch screen that allows to adjust any working function, saving production time. The working table is composed by motorized roller conveyors. The R series can automatically work with 1-2 or multiple strappings through infeed and outfeed photocells. It can be inserted in fully automatic production line, ensuring medium-high working capacity. Machine available with the pneumatic top press.

Layout reggiatrice automatica Speed Strap serie R

Features and parameters of the strapping machine

Technical features
  • Working table with motorized roller conveyor
  • Stainless steel safety handle
  • Magnetic safety switches on working table and doors
  • Automatic strap feeding
  • In & out signals displayed on the touch screen
  • Strapping group controlled by 24volt brushless motors
  • Single, double or multiple strappings
  • Transit mode without product strapping
  • Belts speed adjustable by inverter
  • Acoustic and 3 colors luminous signal
  • Loop ejection

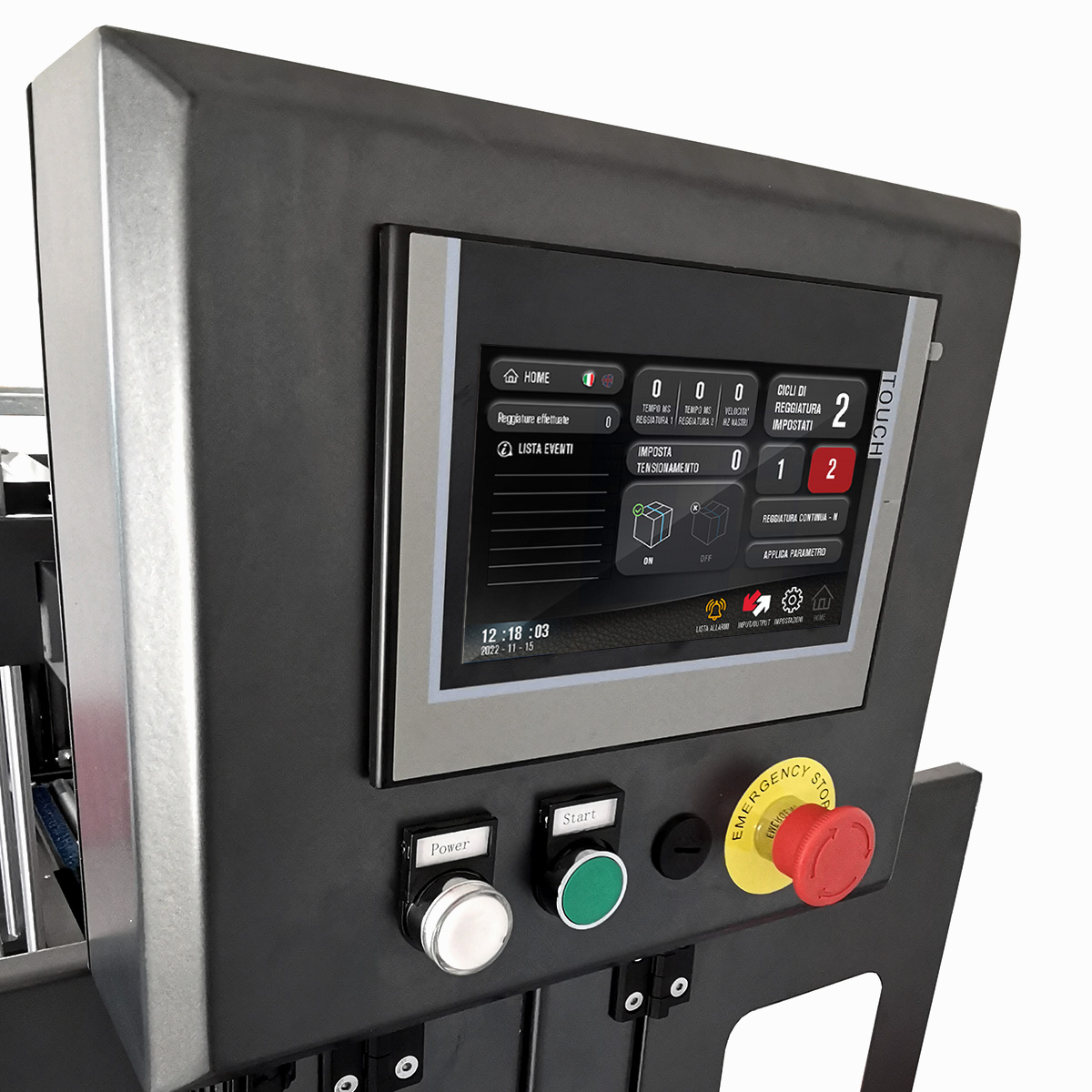

  • 7,2’’ touch screen
  • Strap cutter device
  • Adjustable working table height
  • Four pivoting wheels, two of them with brake
  • Easyfast strap guide disassembly system (without any tool)
  • Automatic strap ejection at the end of the strap coil
  • Re-feed strap system
  • Possibility to use various strap sizes
  • Various arches dimension available
  • Strap tensioning up to 45 kg
Characteristics of the workable product
  • Max. Product dimensions: W 600 x H 450 mm. (with arch from L 650 x H 500)
  • Product weight: 30 Kg.
Features reel strap

Internal diameter: 200 mm.

External diameter: 400 – 450 mm.
Strap width: 5 – 9 – 12 mm.
Strap thickness: 0,45 – 0,65 mm.
Strap type: PP (Polypropylene)

Download the technical sheet of the strapping machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.



Additional information

Power supply

220 Volts

Power supply frequency

50/60 Hz

Installed power

1 Kw

Machine dimensions

L 1800 x W 750 x H 1900 mm

Dimension strapping arch size

L 1050 x H 1000 mm., L 1050 x H 800 mm, L 1250 x H 1000 mm., L 1250 x H 500 mm., L 1250 x H 800 mm., L 1650 x H 500 mm., L 650 x H 500 mm, L 850 x H 500 mm., L 850 x H 600 mm., L 850 x H 800 mm.

Strapping speed

50 cicli/min

Tension strength

0 – 45 Kg

Type

Motorized rollers

Control panel

Touch screen

Max product weight

30 Kg.

Reel internal diameter

200 mm.

Coil outer diameter

400 – 450 mm.

Strap width

5 – 9 – 12 mm.

Strap thickness

0,45 – 0,65 mm

Strap type

PP (polypropylene)

RICHIEDI ORA UN PREVENTIVO

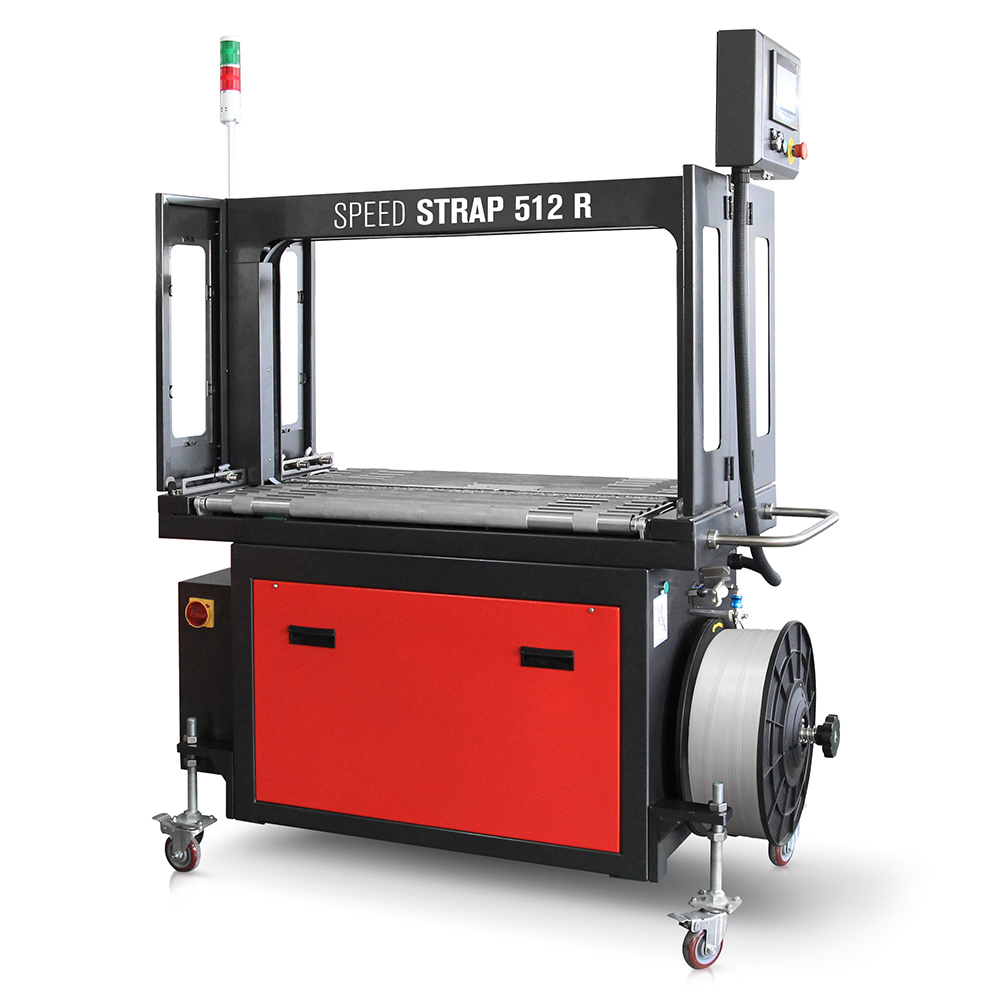

Reggiatrice automatica da linea Speed Strap 512 R
