Speed Strap 505RP – 509RP – 512RP

In stock

REQUEST QUOTE NOW



Automatic strapping machine with motorized steel rollers and double tamper for the stabilization of the products to be strapped. Thanks to its strapping group consisting of high-performance 24volt vcc brushless motors, it characterizes this machine with a strapping speed of 50 cycles / min.



Caratteristiche reggiatrice automatica Speed Strap 509RP

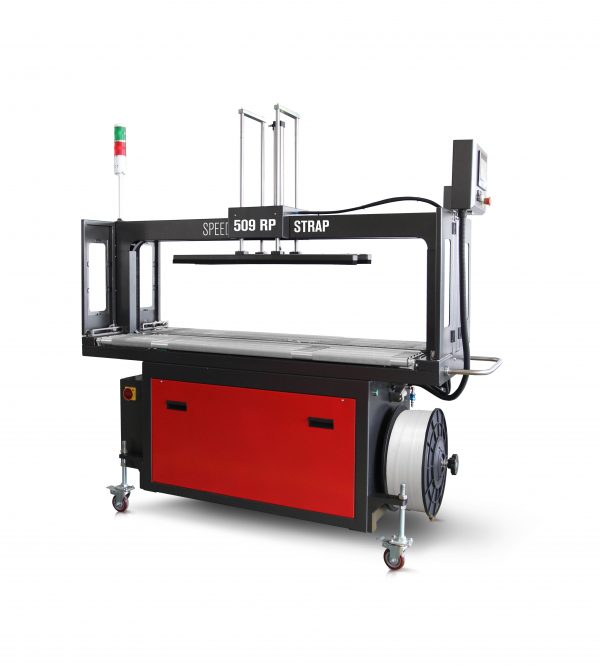

Fully automatic high speed strapping machine with motorized roller table and double stabilizer press

The fully automatic strapping machine, Speed Strap RP series, is equipped with a top press to stabilize the products to strap. It can be inserted in fully automatic production line, ensuring medium-high working capacity. The working table is equipped with motorized roller conveyor and machine can automatically work with 1-2 or multiple strappings through photocells system. The 7,2” touch screen that allows to adjust any working function, saving production time.



Layout reggiatrice automatica Speed Strap serie RP

Caratteristiche e parametri della reggiatrice

Technical features

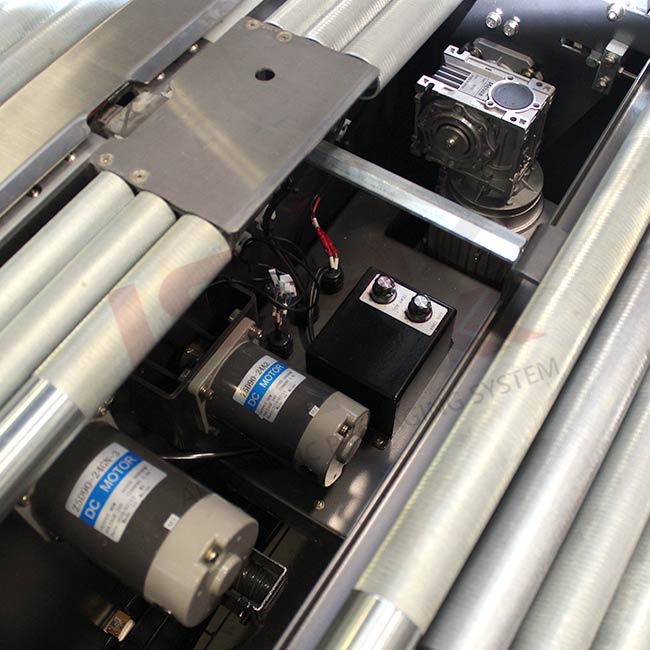

  • Working table with motorized roller conveyor
  • Stainless steel safety handle
  • Double pneumatic top press
  • Safety guards with magnetic safety switches on each door
  • Automatic strap feeding
  • In & out signals displayed on the touch screen
  • Strapping group controlled by 24volt brushless motors
  • Single, double or multiple strappings
  • Transit mode without product strapping
  • Belts speed adjustable by inverter
  • Acoustic and 3 colors luminous signal
  • Loop ejection
  • 7,2’’ touch screen
  • Strap cutter device
  • Adjustable working table height
  • Four pivoting wheels, two of them with brake
  • Easyfast strap guide disassembly system (without any tool)
  • Automatic strap ejection at the end of the strap coil
  • Re-feed strap system
  • Possibility to use various strap sizes
  • Various arches dimension available
  • Strap tensioning up to 45 kg
Product features
  • Max. Product dimensions: L 550 x H 450 mm. (with arch of L 650 x H 500)
  • Max product weight: 30 Kg.
Strap roll features

Internal diameter: 200 mm.


External diameter: 400 – 500 mm.

Strap width: 9 – 12 mm.

Strap thickness: 0,45 – 0,65 mm.
Strap type: PP (Polipropilene)

Scarica la scheda tecnica della reggiatrice

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.



Additional information

Power supply

220 Volts

Power supply frequency

50/60 Hz

Installed power

1 Kw

Air pressure

0.4 – 0.6 MPa

Machine dimensions

L 2080 x W 680 x H 2020 mm

Dimension strapping arch size

L 1050 x H 1000 mm., L 1050 x H 800 mm., L 1250 x H 1000 mm., L 1250 x H 500 mm., L 1250 x H 800 mm., L 1650 x H 500 mm., L 650 x H 500 mm, L 850 x H 500 mm., L 850 x H 600 mm., L 850 x H 800 mm.

Strapping speed

50 cicli/min

Tension strength

0 – 45 Kg

Type

Motorized rollers and press

Control panel

Touch screen

Max product weight

30 Kg.

Reel internal diameter

200 mm.

Coil outer diameter

400 – 450 mm.

Strap width

5 – 9 – 12 mm.

Strap thickness

0,45 – 0,65 mm

Strap type

PP (polypropylene)
