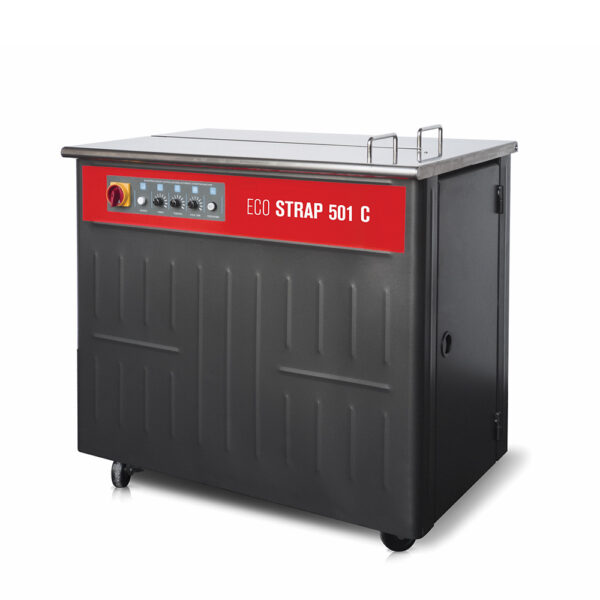

Eco Strap 501 C

In stock

REQUEST QUOTE NOW



Semi-automatic strapping machine Eco Strap 501 C of new generation with closed structure equipped with easyfast® strap guide disassembly system (without tools), adjustment of the welding cooling time (COOL TIME), temperature adjustment of the sealing blade and adjustment of the length of the strap to be dispensed. Simple and practical to use and transport.

Semi-automatic strapping machine with closed structure

The new generation semiautomatic strapping machine, mod. ECO STRAP 501 C, has a fully closed structure that can be inspectable internally through the working table and the lateral door for strap coil changing. It is equipped with DC motors that control each function of the machine and has an electronic strap tensioning adjustable by potentiometer placed on the control panel. Thanks to its pivoting wheels it can be easily moved and located according to the warehouse needs. Very competitive price and compact strapping machine, extremely efficient for any medium-low working capacity. It is suitable for boxes, packages, bundles strapping. It can be used in warehouses, offices, supermarkets, shops, logistics, anywhere a safe packaging is required.



General characteristics of the strapping machine

The Eco Strap 501 C strapping machine uses a 220 V power supply | 1 ph | 50/60 Hz and has a worktop height of 750 mm. It has a strapping speed ranging from 10 to 15 cycles per minute with a maximum adjustable tensioning force up to 45 Kg. The strapping machine is equipped with four pivoting wheels and an easyfast® strap guide disassembly system (without tools). There is also: adjustment of the welding cooling time (COOL TIME), adjustment of the temperature of the sealing blade, adjustment of the length of the strap to be dispensed, operation of the motors only during the strapping cycle.

Layout reggiatrice semiautomatica Eco Strap 501 C

Features and parameters of the strapping machine

Technical characteristics of the strapping machine
  • Working table with safety sensor

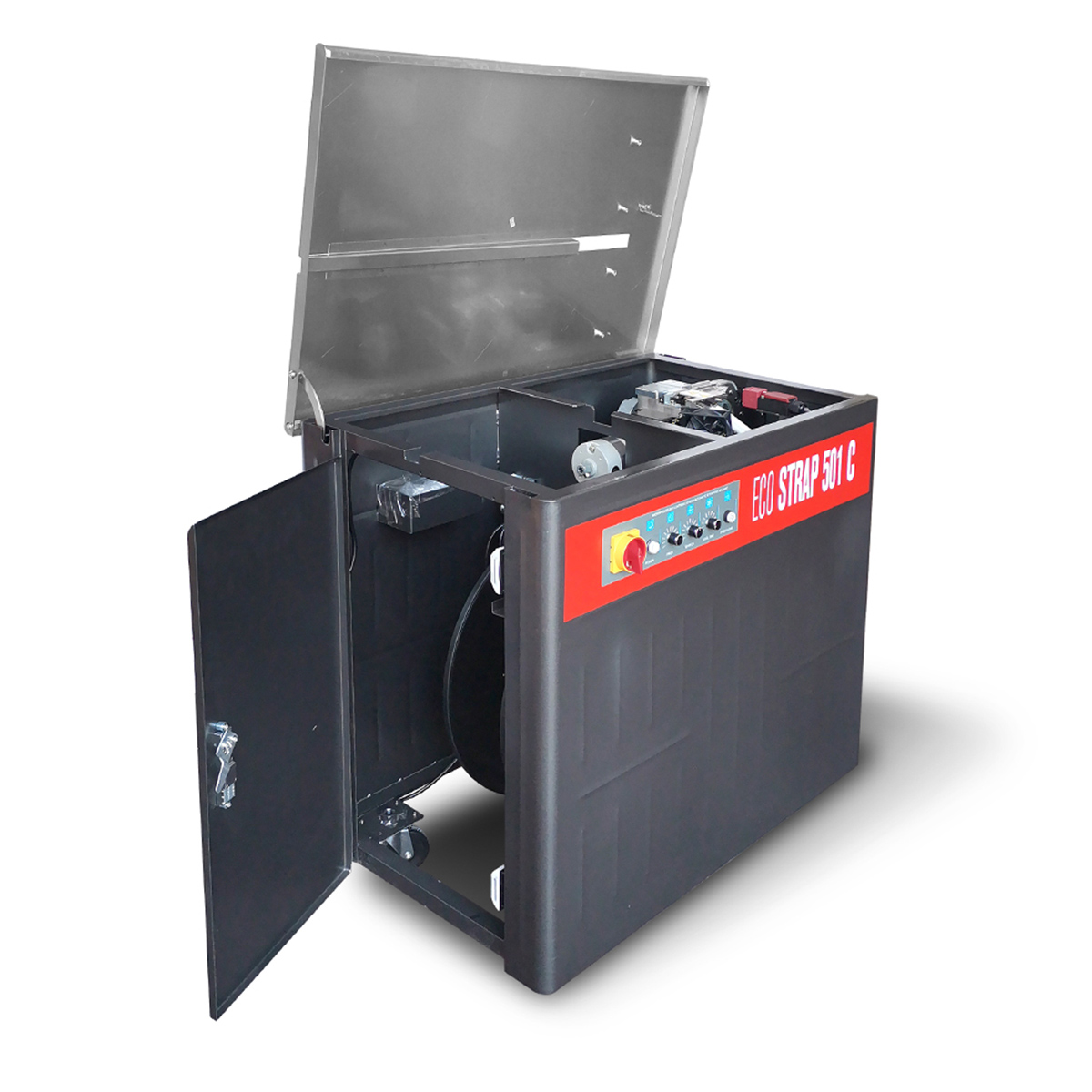

  • Closed structure with lateral door for strap coil change
  • Electronic strapping tensioning
  • Robust strapping head
  • Possibility to work with different strap sizes
  • Motors only working during strapping cycle

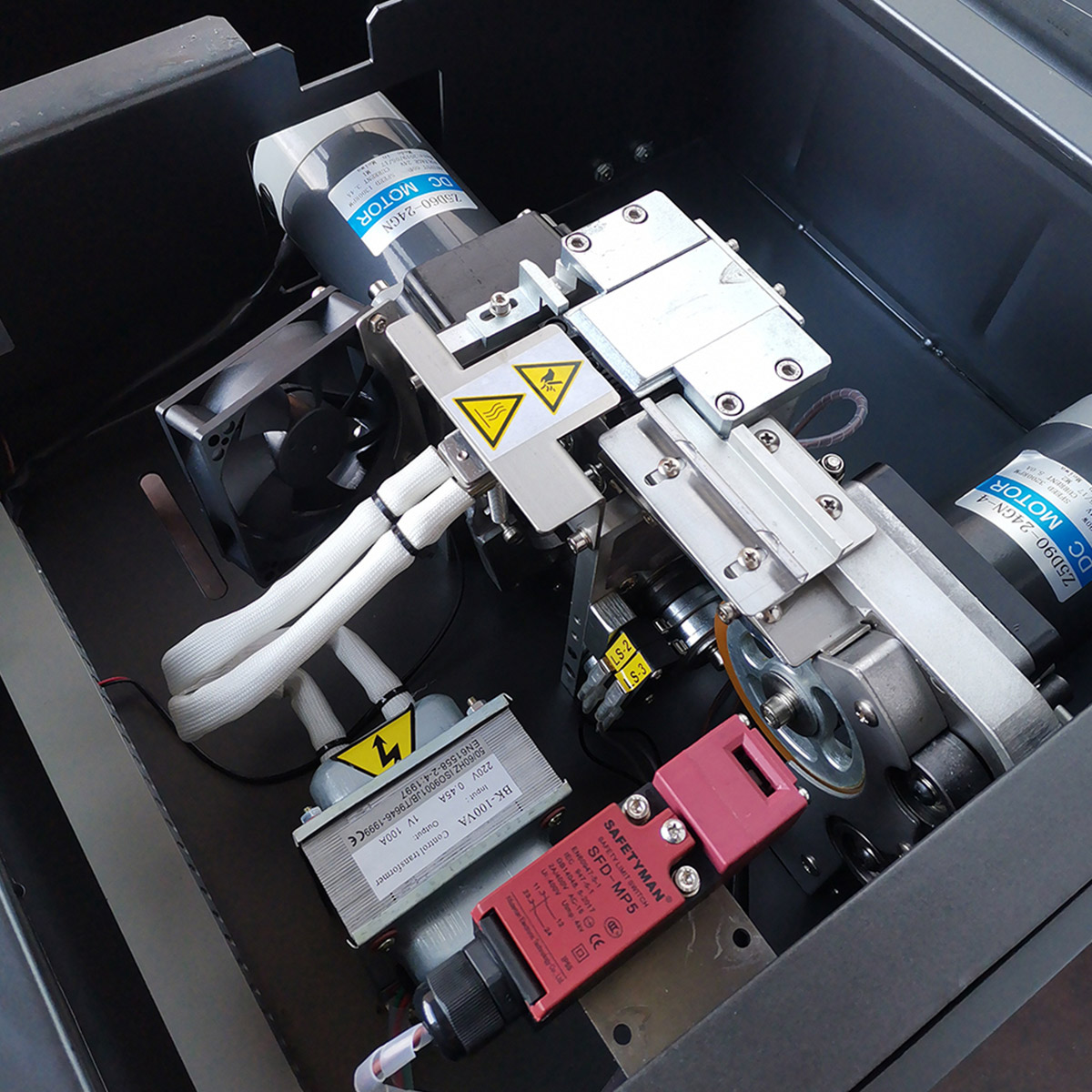

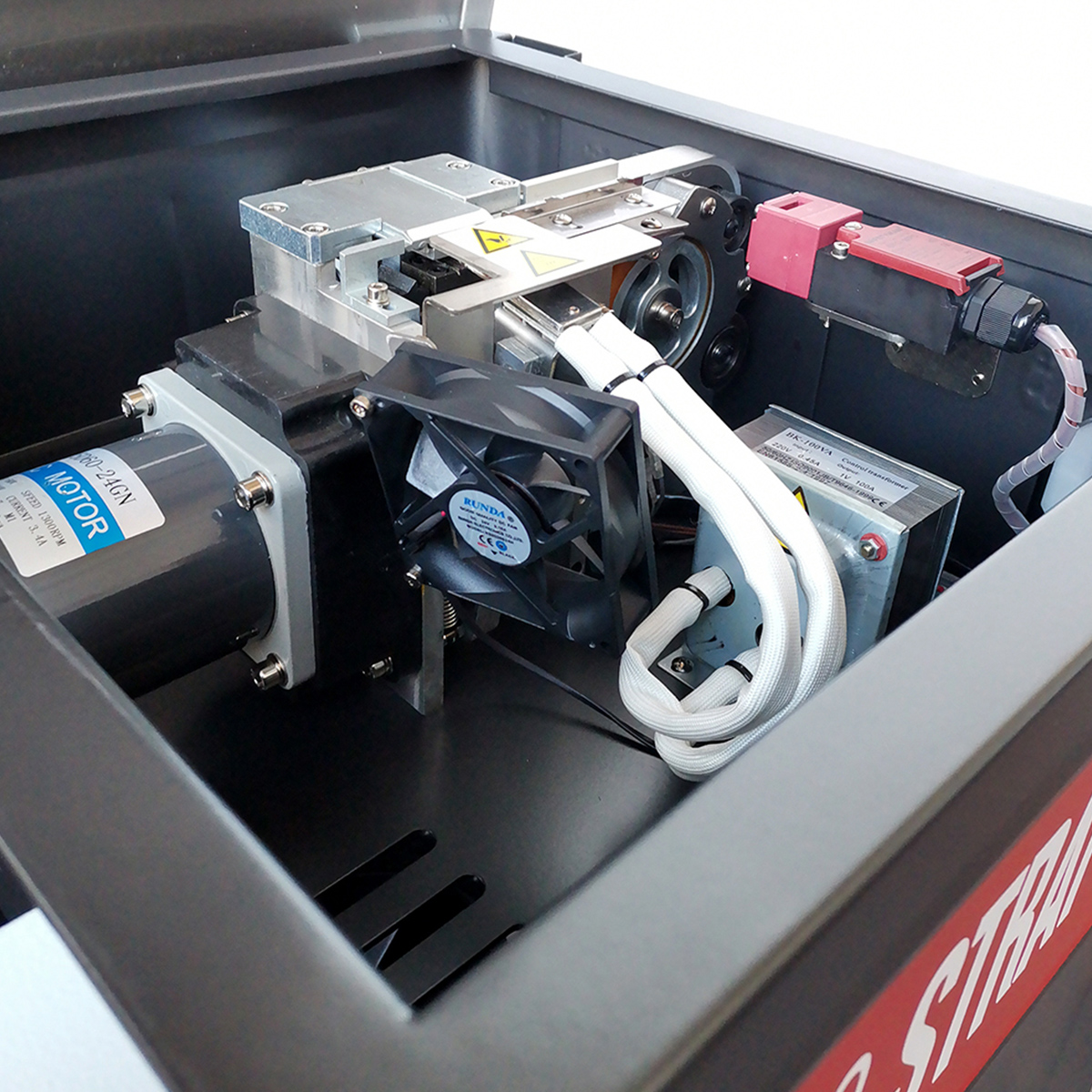

  • Strapping group with dc motors

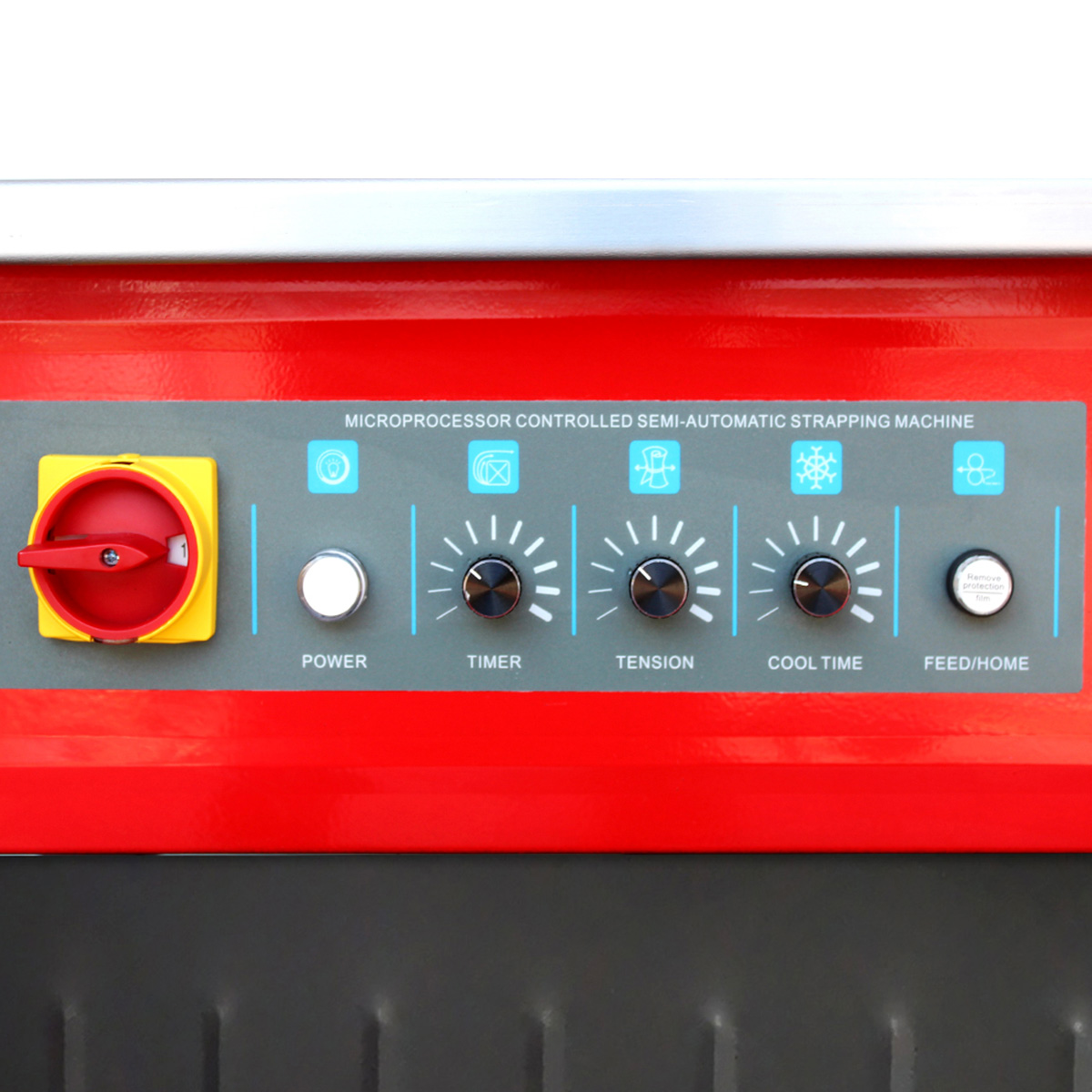

  • Analog control panel
  • Minimum tensioning only 3 kg
  • Maximum tensioning up to 45 kg
  • Four pivoting wheels, two of them with brake

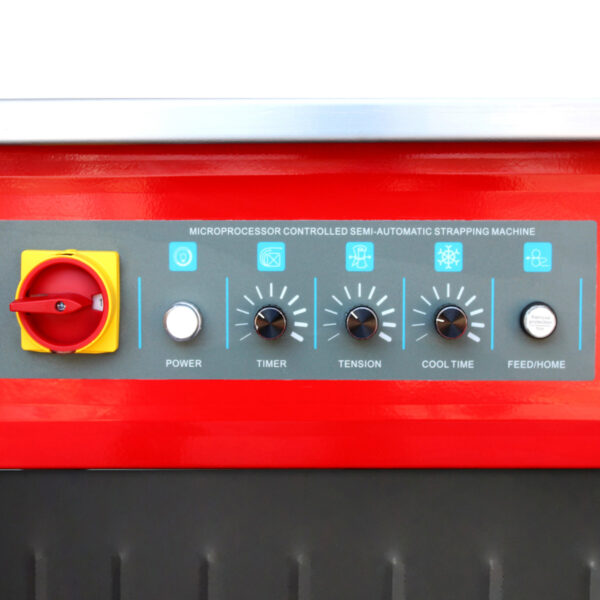

Parameters adjustable from the control panel
  • Adjustable cooling time
  • Adjustable strapping tensioning by potentiometer
  • Adjustable sealing blade temperature
  • Adjustable strap feeding length
Characteristics of the workable product
  • Min. Product dimensions: L 80 x W 80 x H 3 mm.
  • Product weight: 25 Kg.

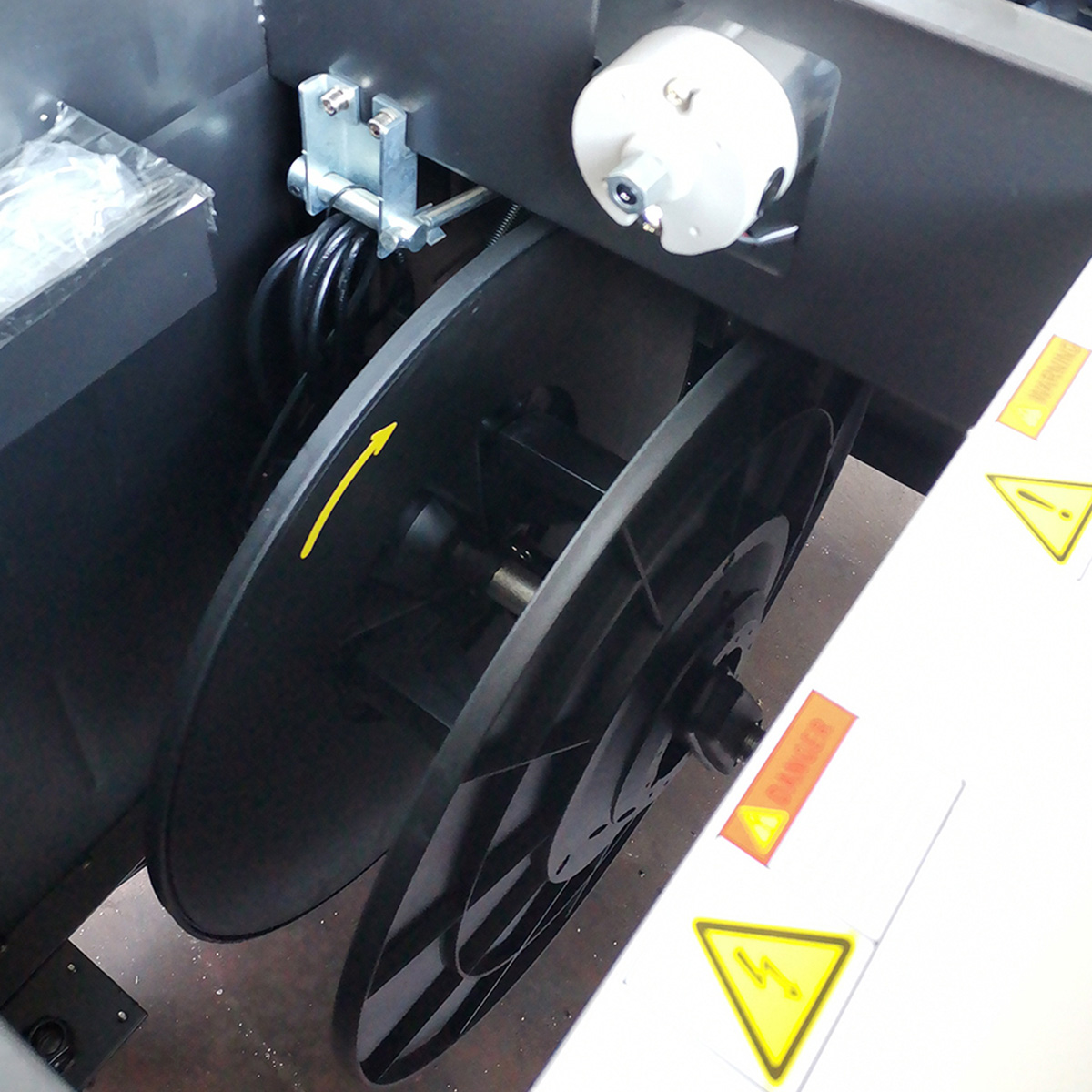

Strap reel features

Internal reel diameter: 200 mm.

External diameter reel: 400 – 500 mm.
Coil width: 190 mm.
Strap width: 6 – 9 – 12 – 15 mm.
Strap thickness: 0,5 – 0,7 mm.
Strap type: PP (Polypropylene)

Download the technical sheet of the strapping machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Power supply

220 Volts

Power supply frequency

50/60 Hz

Installed power

0,25 kw

Machine dimensions

L 850 x W 560 x H 755 mm

Working table height

750 mm

Strapping speed

10/15 cycles/min

Tension strength

3 – 45 Kg (adjustable)

Max product weight

25kg

Reel internal diameter

200 mm.

Coil outer diameter

400 – 500 mm.

Coil width

190 mm.

Strap width

6 – 9 – 12 – 15 mm.

Strap thickness

0,5 – 0,7 mm

Strap type

PP (polypropylene)
