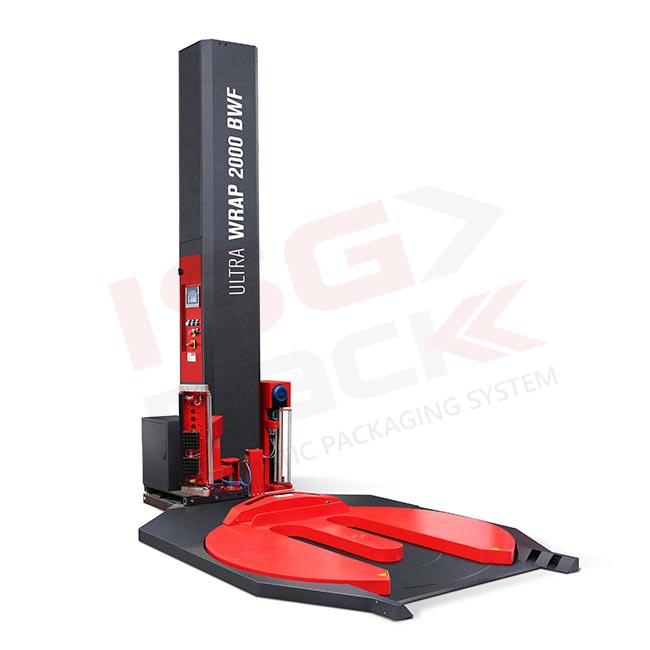

Stretch wrapping machine Ultra Wrap 2000 BWF

In stock

REQUEST QUOTE NOW



The Ultra Wrap 2000 BWF model is an automatic machine with open table for transpallet access. The ideal solution to perform pallet wrapping completely automatically without the need for an operator. It uses a motorized prestretch with fixed ratios and has a table rotation speed of 12 rpm (rotations per minute).

WITH
OPERATOR

POWER
SUPPLY 1.25 kW

FILM
ROLL

PALLETIZED
LOAD





Automatic wrapping machine with entry for transpallet with gripper assembly, welded cut that ensures a perfect film seal around the pallet.

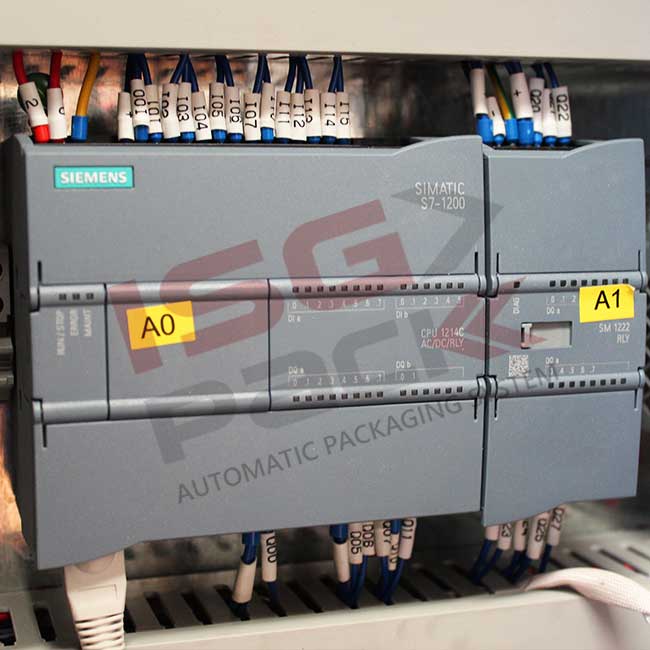

Model Ultra Wrap 2000 B WF is an automatic machine with entry for transpallet and represents the optimum solution for wrapping the pallet automatically. This wrapping machine is equipped with clamp, cutting and sealing unit that ensures a perfect adherence of the film to the pallet. It can also work with a remote control system. The machine is equipped with PLC and digital color display 7,2”.

Features and parameters

Features
  • Machine structure in painted steel sheet
  • Mast hinged at the base for easy and quick installation

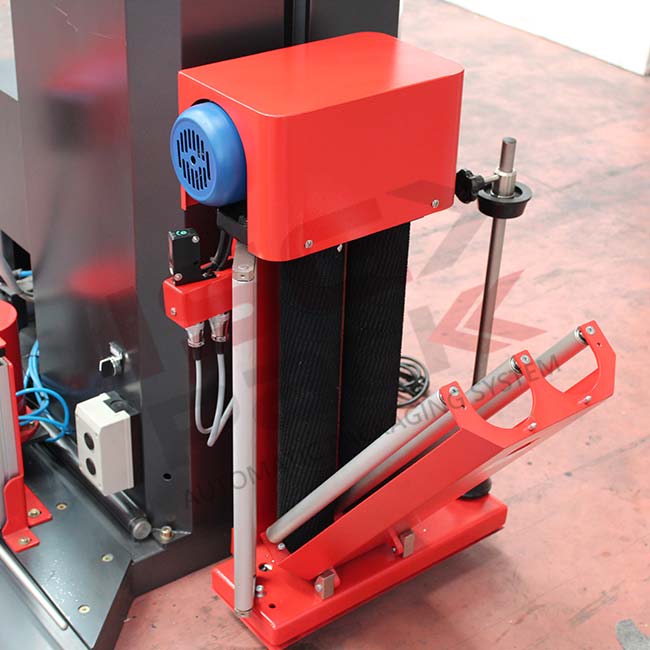

  • Film carriage by chain transmission
  • Turntable ø 1650 mm with entry for transpallet
  • Useful height 2600 mm
  • Environmental humidity conditions: ≤ 90%
  • Operating temperature range: + 0° C to + 40 ° C

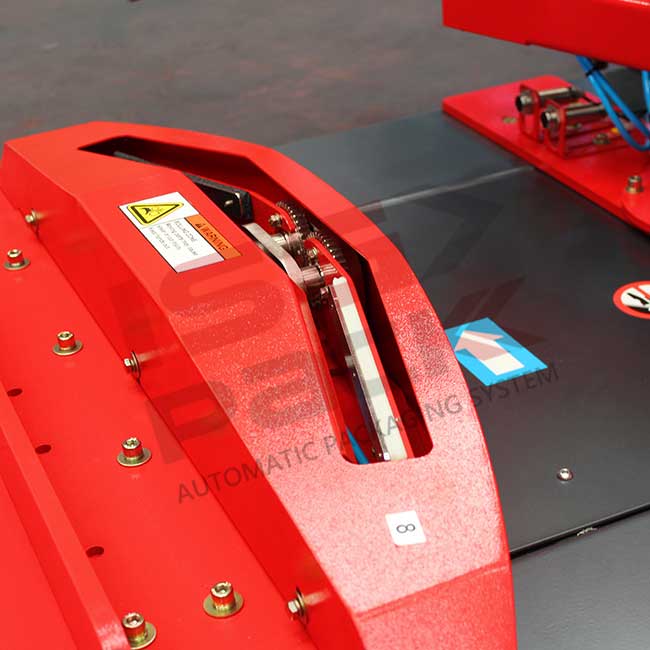

  • Film cut and clamp system

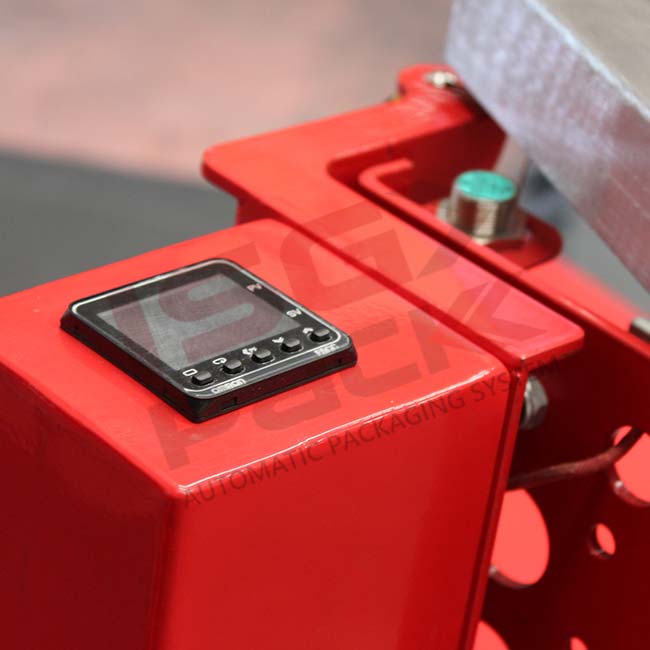

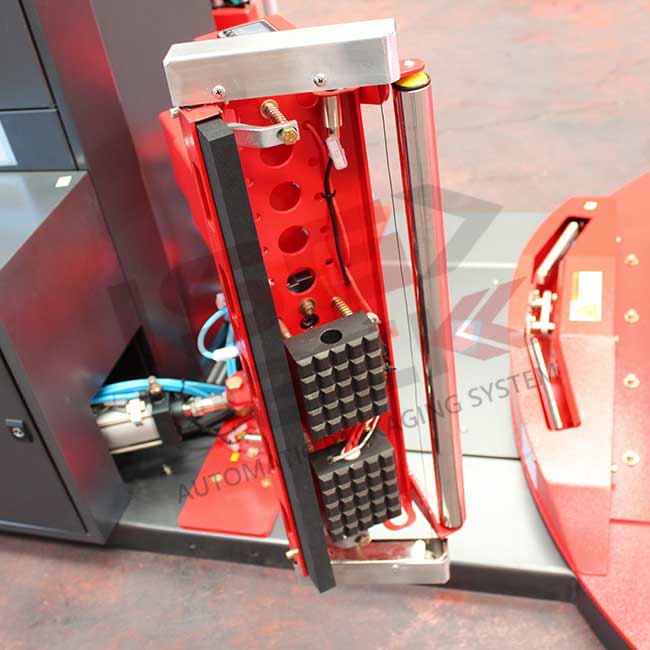

  • Film welding system controlled by temperature controller

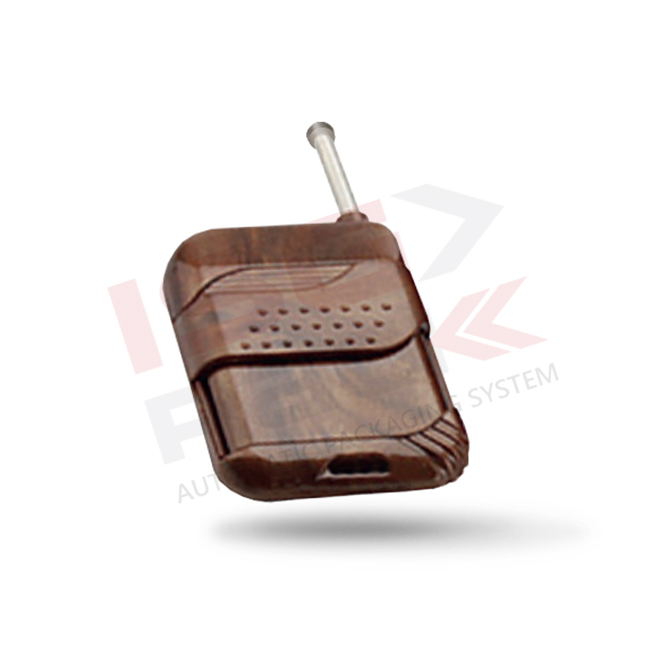

  • Wrapping cycle activated by remote control

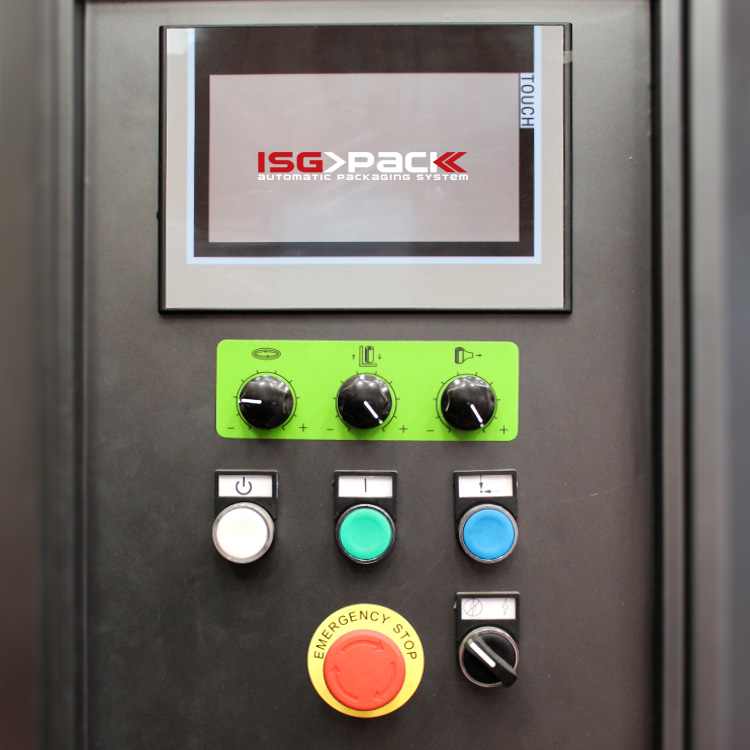

  • Machine by PLC and 7,2” touch screen
  • Film carriage fall protection system
  • Safety photocell with entry for transpallet
  • Acoustic wearning at the cycle start
  • Motorized pre-stretch set at 250% with possibility to interchange pre-stretch ratios (150, 200, 300%)
  • Front and back holes for forklifting of the machine
  • Inverter for soft start and indexed stop of the turntable
Parameters adjustable by control panel
  • Number of rounds in bottom
  • Number of rounds in top
  • Adjustable turntable speed from 0 to 12 rpm
  • Carriage ascending and descending speed
  • Photoeye reading delay adjustable
  • Carriage ascending and descending functions
  • Cycle counter
Functions activated by control panel
  • Manual cycle
  • Cycle ascending and descending
  • Cycle ascending and descending “energy saving film mode”
  • Reinforce cycle
  • Top sheet cycle
  • N°08 programmable wrapping cycles
Characteristics of the workable product
  • Dimension max product: L 1000 x W 1200 mm.
  • Useful height: H 2600 mm.
  • Max weight product: 1200 Kg.
Film roll features

Film roll external diameters: 280 mm.

Film roll internal diameter: 76 mm.
Film roll height: 500 mm.
Film roll max weight: 20 Kg.

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 2600 x W 1750 x H 2800 mm

Weight machine

700 Kg

Turntable diameter

1650 mm

Max load weight

1200 Kg

Turntable speed

0 – 12 (rpm)

Carriage up-down speed

1,4 – 4 (m/min)

Film pre-stretch

Mechanical brake carriage

Maximum pallet dimensions

L 1000 x W 1200 x H 2600 mm

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1,25 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll max weight

20 Kg

Film roll thickness

12 – 35 (µm)

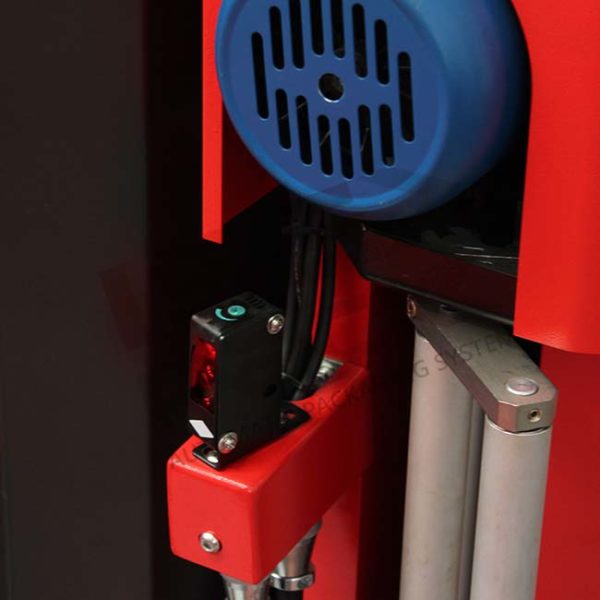

Photoeye to detect door height

std

Forklifting

Back
