Eco Strap 501 (Copia)

In stock

REQUEST QUOTE NOW



Semi-automatic strapping machine model Eco Strap 501 with welding cooling time adjustment (COOL TIME), sealing blade temperature adjustment and length adjustment of the strap to be dispensed. Simple and practical to use.

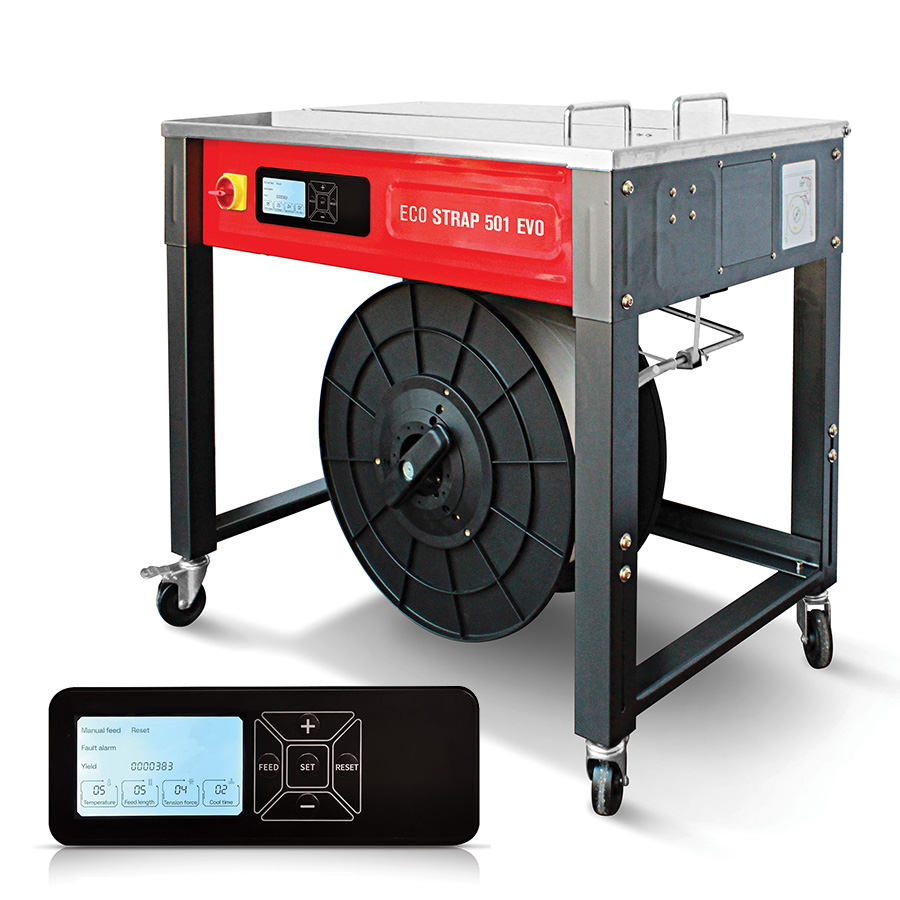

Semi-Automatic strapping machine with digital control panel

The Eco Strap 501 EVO semi-automatic strapping machine is a next-generation solution designed to deliver reliability and efficiency in packaging operations. Equipped with DC motors dedicated to each function, it ensures accurate and optimized performance. The integration of a user-friendly digital control panel allows for easy adjustment and storage of key operating parameters, making the machine highly adaptable to various application needs. Thanks to its swivel casters, the strapping machine can be easily moved within the workspace.

Compact and versatile, the Eco Strap 501 EVO is ideal for general-purpose use with low to medium workloads. Perfect for strapping boxes, parcels, and bundles, it is suitable for use in warehouses, offices, retail stores, supermarkets, and any environment where secure and reliable packaging is essential.

Functions of the New Digital Control Panel

Thanks to the digital control panel integrated on the front of the machine, various operating functions can be easily and precisely configured. These include strap feed, tension level, sealing temperature, and cooling time. The panel also features a reset button, a manual strap feed control, and a cycle counter function for tracking the number of operations performed.



Layout reggiatrice semiautomatica Eco Strap 501 EVO

Layout reggiatrice semiautomatica Eco Strap 501 EVO

Features and parameters of the strapping machine

Technical characteristics of the strapping machine

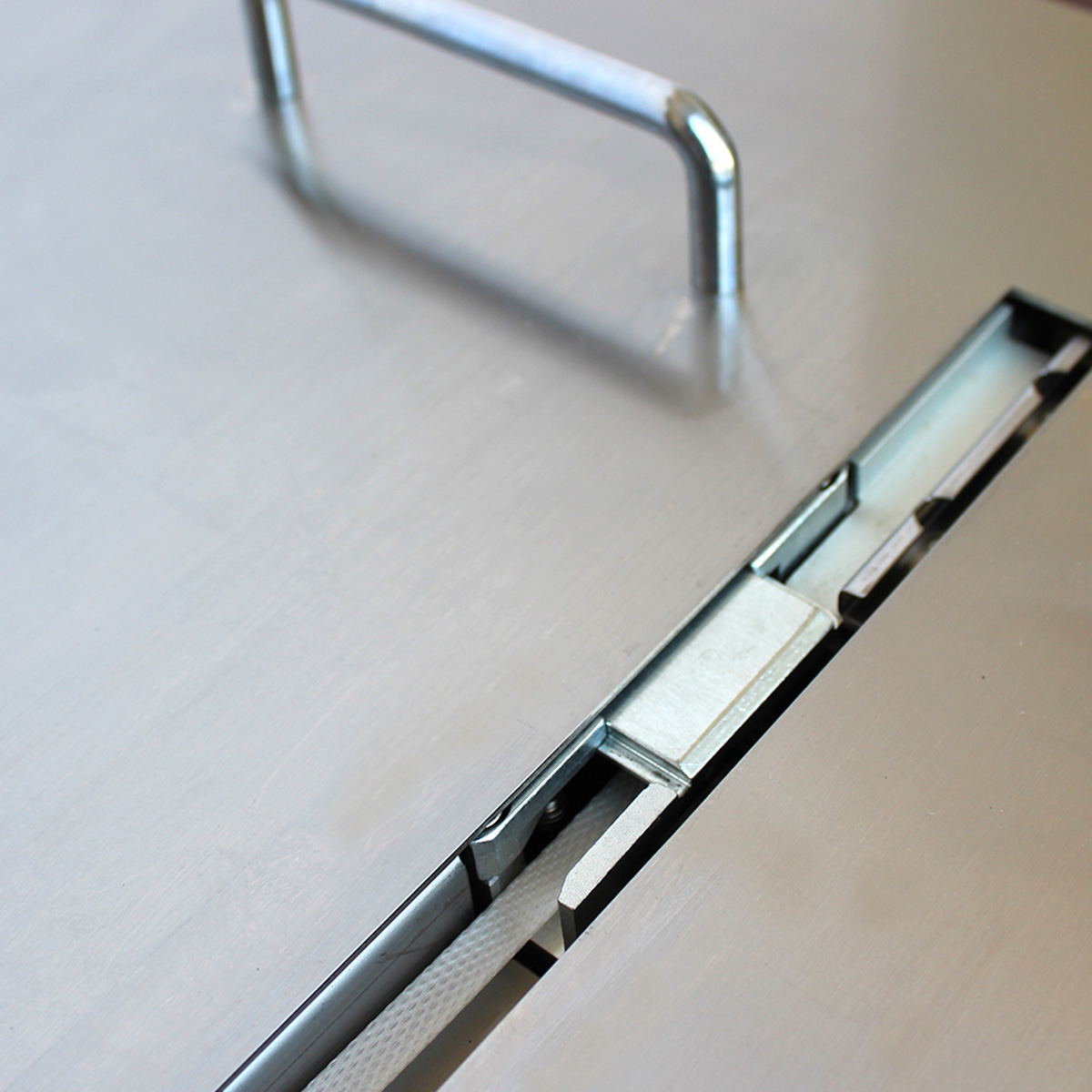

  • Working table with safety sensor
  • Digital Control of Strap Tension

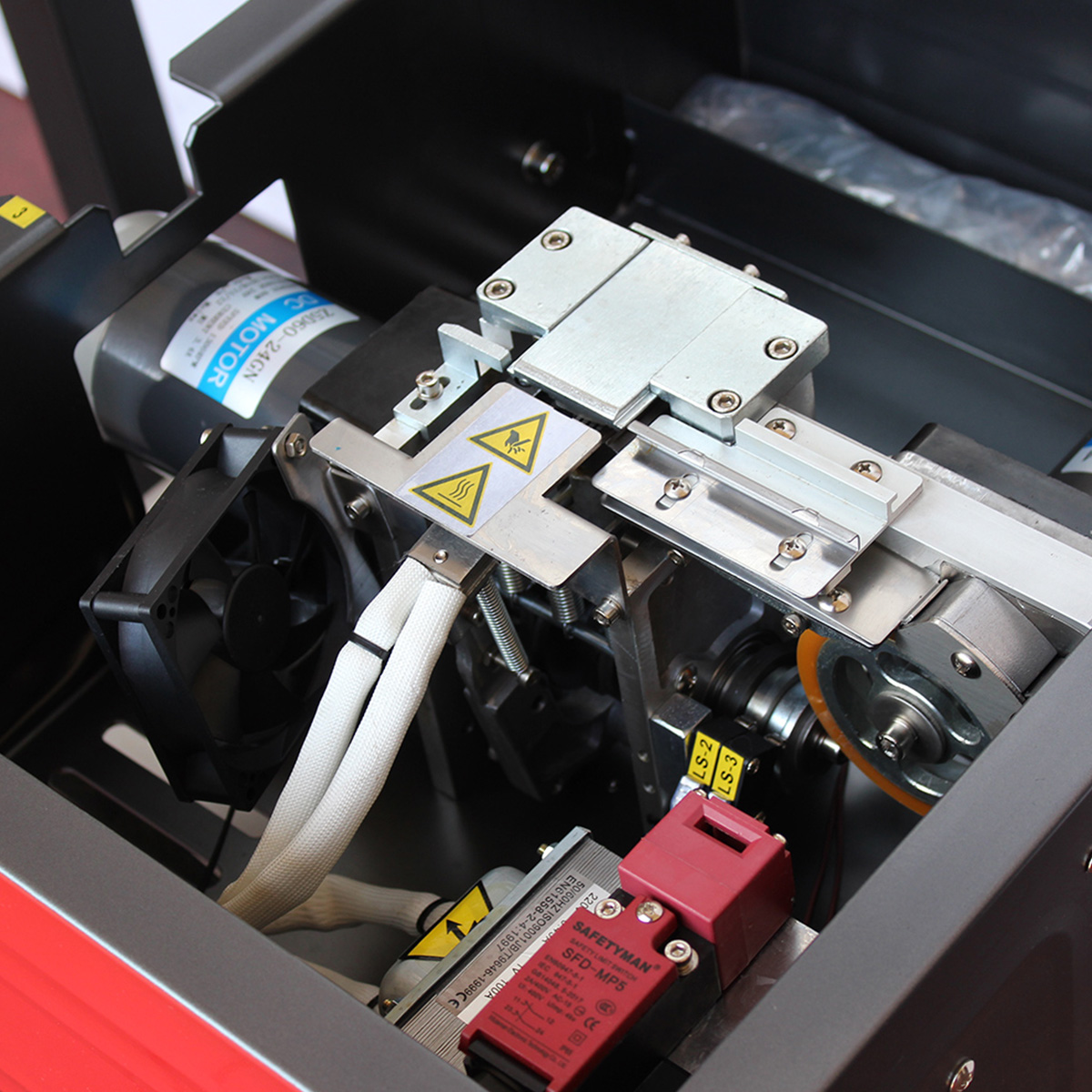

  • Robust strapping head
  • Possibility to work with different strap sizes
  • Motors only work during the strapping cycles
  • Strapping group with dc motors
  • Digital control panel
  • Minimum tensioning only 3 kg
  • Maximum tensioning up to 45 kg

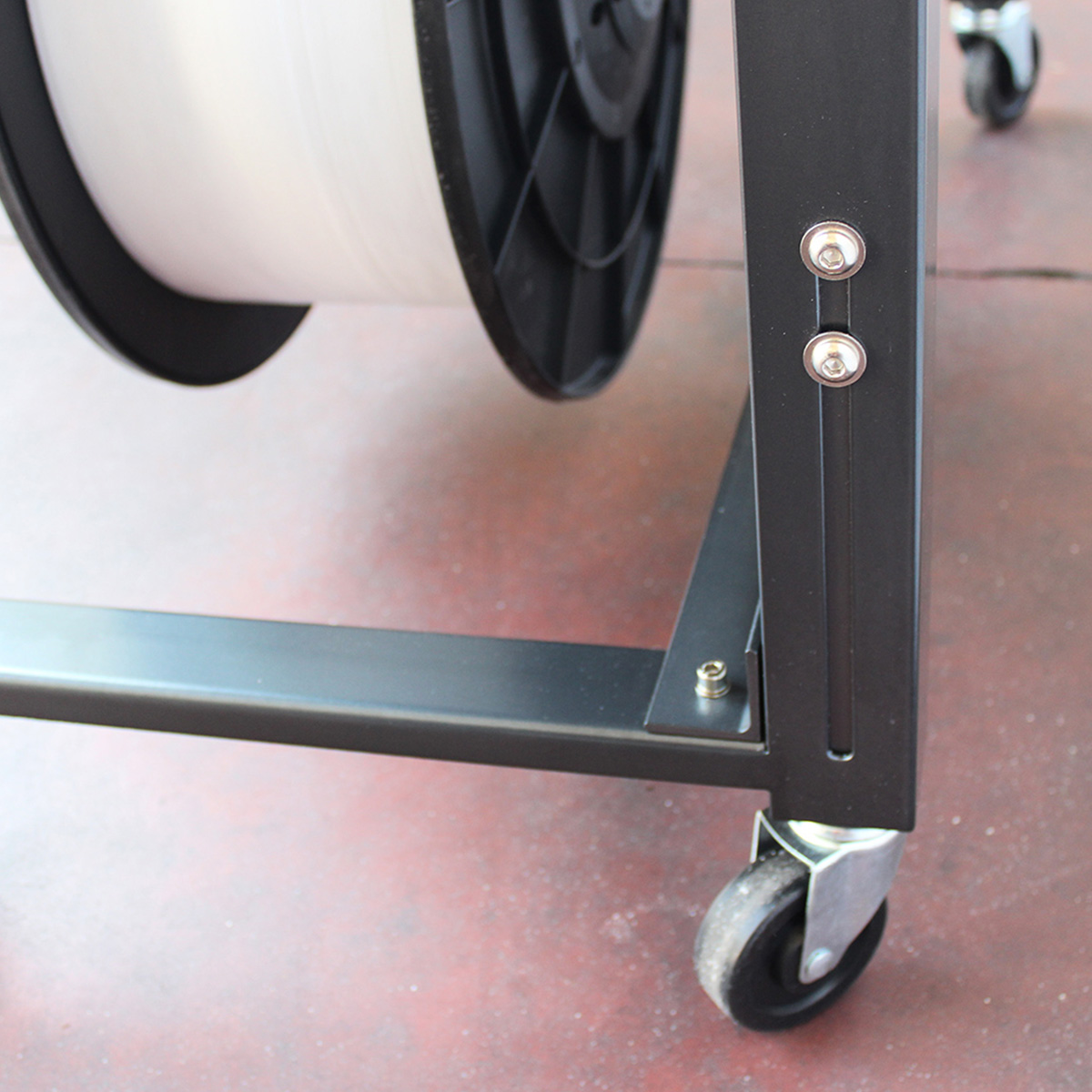

  • Four pivoting wheels, two of them with brake
Adjustable Parameters via the Digital Control Panel
  • Cooling time of the welding
  • Sealing blade temperature adjustment
  • Strap tension adjustment
  • Sealing blade temperature
  • Strap feed length
  • Strap feed
  • Work cycle memory
  • Machine reset
  • Manual strap feed
Characteristics of the workable product
  • Min product dimensions: L 80 x W 80 x H 3 mm.
  • Max product weight: 25 Kg.

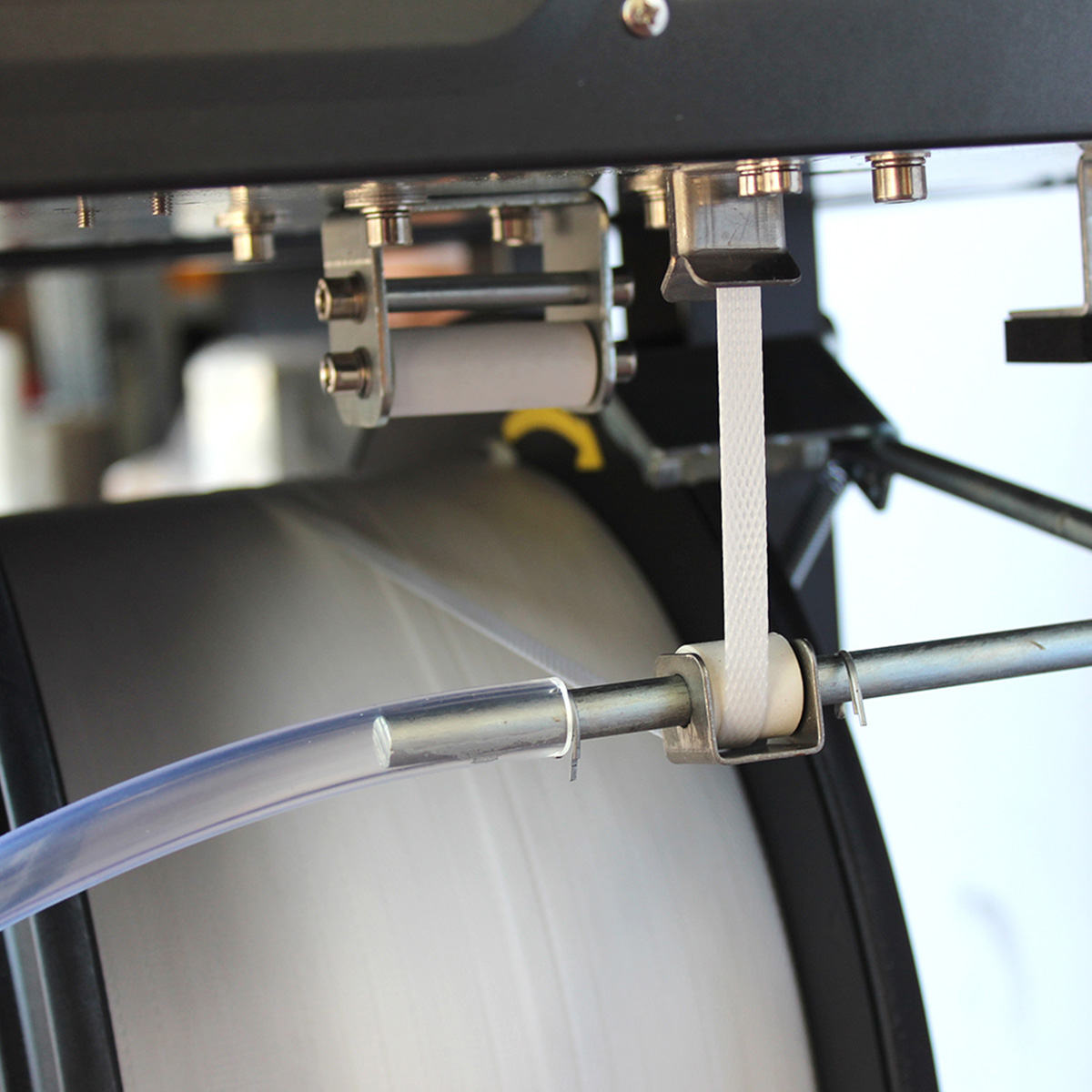

Strap reel features

Internal reel diameter: 200 mm.


External diameter reel: 400 – 500 mm.

Coil width: 190 mm.

Strap width: 6 – 9 – 12 – 15 mm.

Strap thickness: 0,5 – 0,7 mm.
Strap type: PP (Polypropylene)

Download the technical sheet of the strapping machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

    How did you find our Company??

      In che modo hai trovato la nostra azienda?

      Additional information

      Power supply

      220 Volt 1Ph

      Power supply frequency

      50/60 Hz

      Installed power

      0,25 kw

      Machine size

      L 850 x W 555 x H 750 mm

      Working table height

      750 – 900 mm

      Strapping speed

      10/15 cicli/min

      Tension range

      3 – 45 Kg (regolabile)

      Internal diameter

      200 – 210 mm.

      Coil outer diameter

      400 – 500 mm.

      Coil width

      160 – 190 mm.

      Strap width

      6 – 9 – 12 – 15 mm.

      Strap thickness

      0,5 – 0,7 mm

      Strap type

      PP (polypropylene)
